Dcc Loco Decoders for HO Scale Model Trains 4 Function 9 Wire 860014/LaisDcc Brand/PanGu Serie

Please read this before place an order

You need to connect a resistor 1K(1000ohm) 1/4Watt or 1.5K(1500ohm) 1/8 Wattother valuein series when you use the function wires with LED to limit the current of led.

(Caution) DCC Voltages. Please make sure your DCC Voltages are less than 16V. We
recommend track voltage at 12V. Read below to understand all about dcc voltage. Over
Voltage may make the decoder irreparable harm. We do not accept dispute if your voltage is over 16V and burn the decoders. If your track voltage can not lower to 16V, please not order our decoders.

//www.sumidacrossing.org/ModelTrains/ModelTrainDCC/DCCDecoders/DCCVoltages/

860014 do not support stay alive kits. If you need stay alive function, please order 870014.

Current rating:
2 Amp peak power, 1A continuous in all, Each Functions maximum 100mA.

Loco Scale:
Good for HO & N scale

Model and Order Number:
860014

Function:
DCC LOCO DECODER FOR HO & N SCALE MODEL TRAIN 9 wires, with 4 Function

Dimensions: 18mm*12mm*3mm

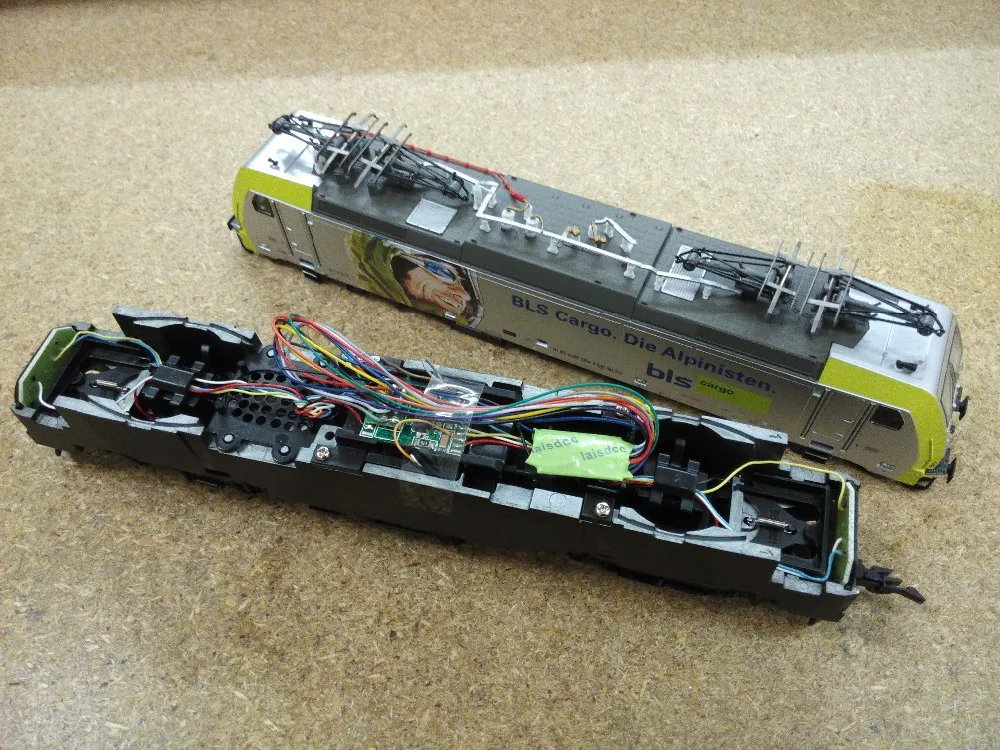

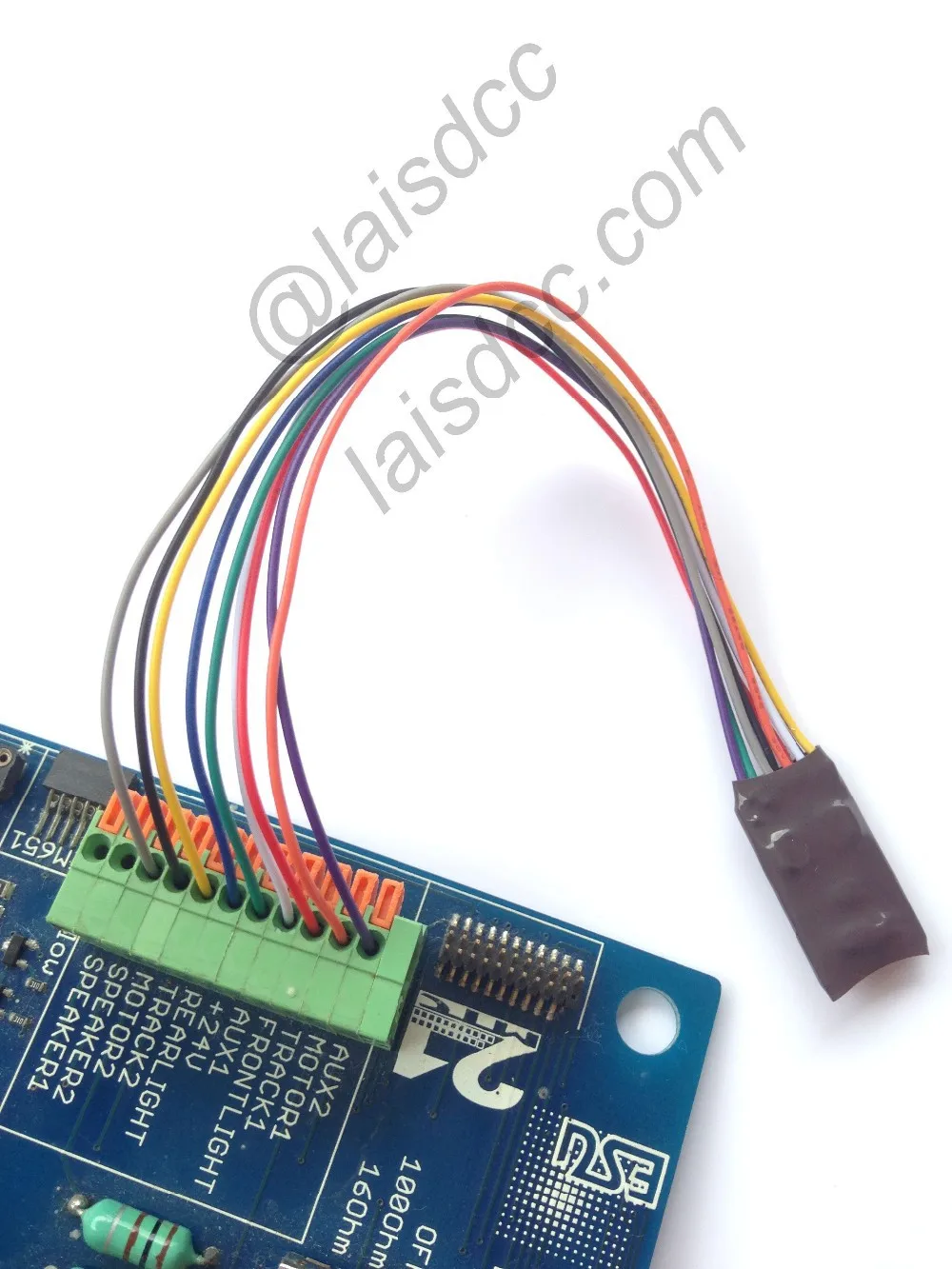

Color VS Function:

Orange = Motor Right

Yellow = Reverse Headlight FL(F0R)

Green = Function 1

Black = Left Rail

Grey = Motor Left

White = Forward Headlight FL(F0F)

Blue = Function common positive

Red = Right Rail

Violet = Function 2
