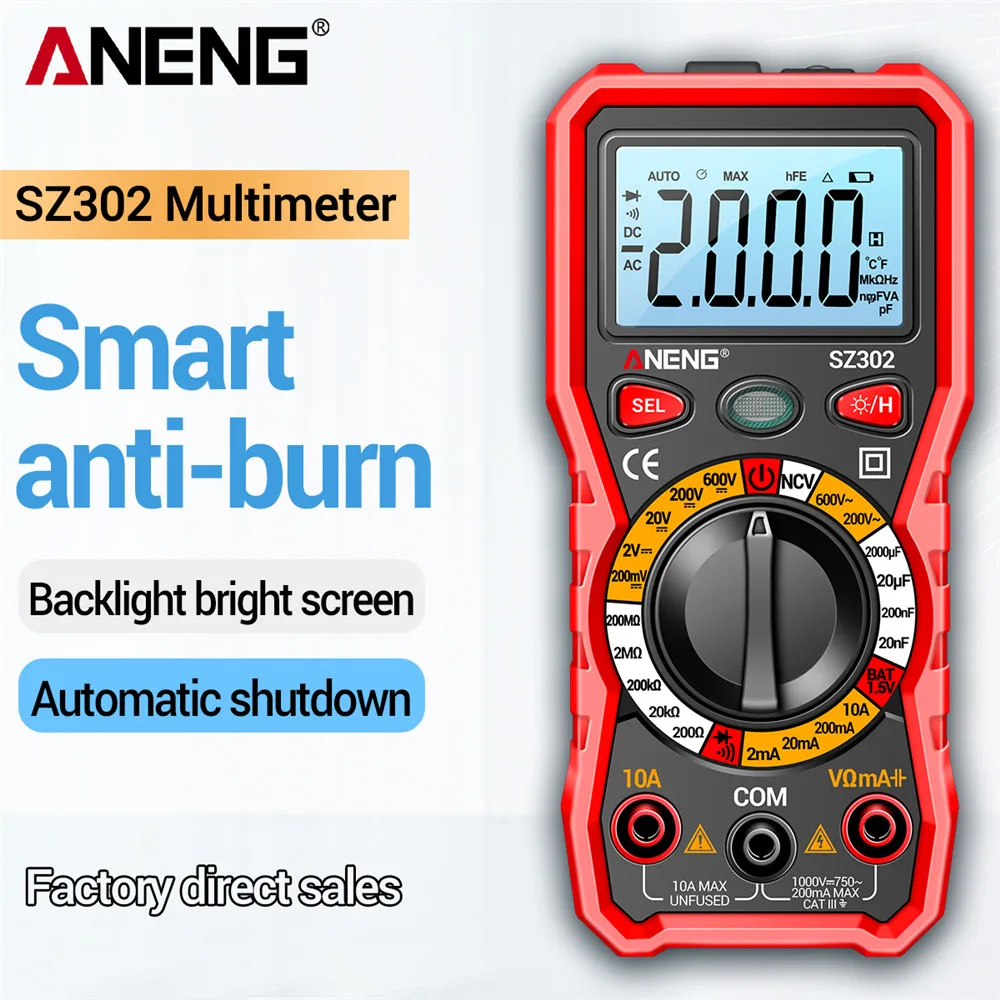

Digital Multimeter AC/DC Current Votage Automatic Tester NCV Detector Resistance Ohm Ammeter Capacitance Meter
Describe:

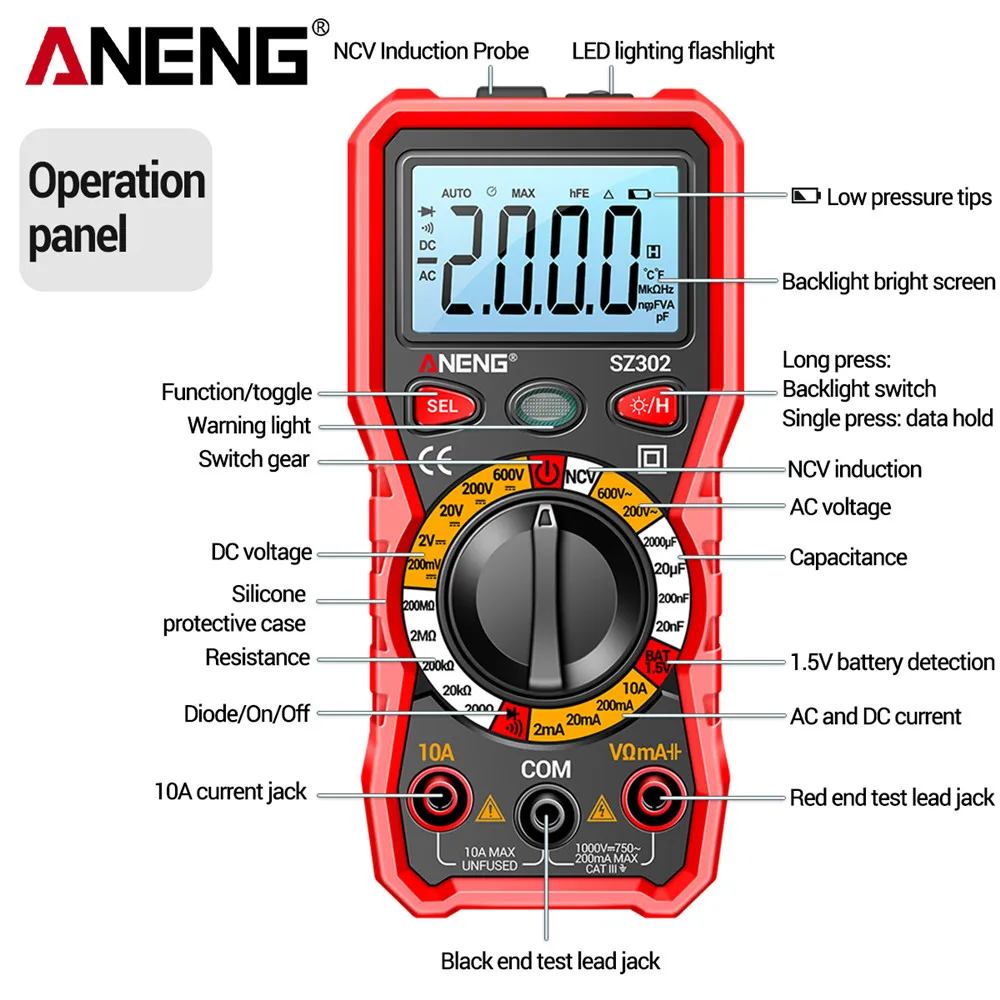

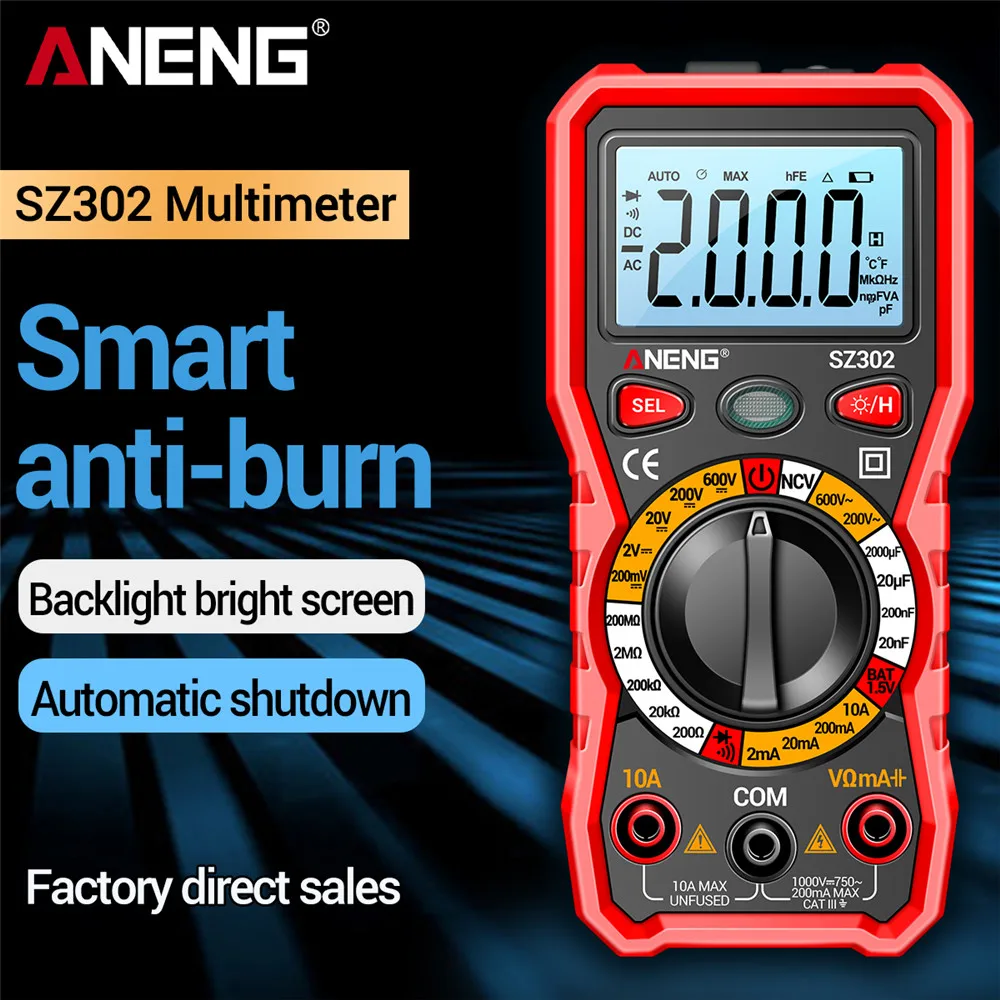

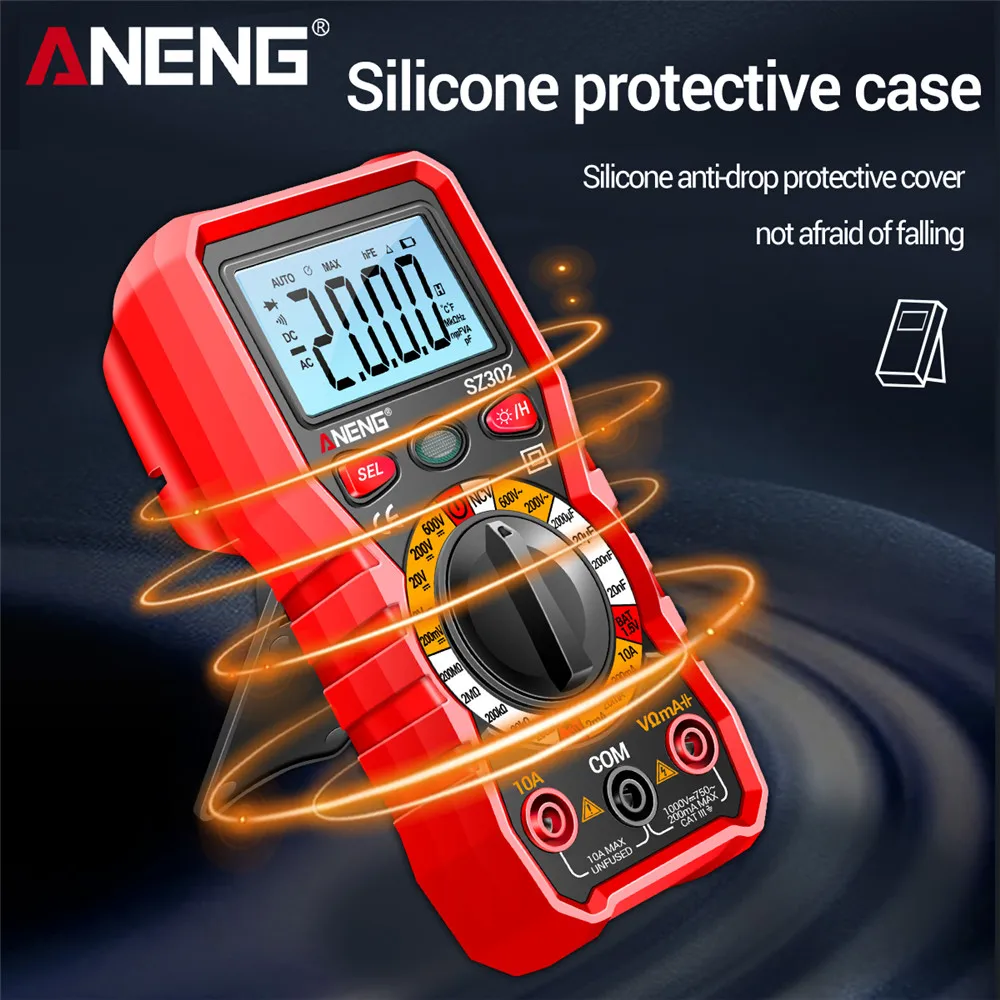

ANENG SZ302 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and NCV and other functions
Feature:
|

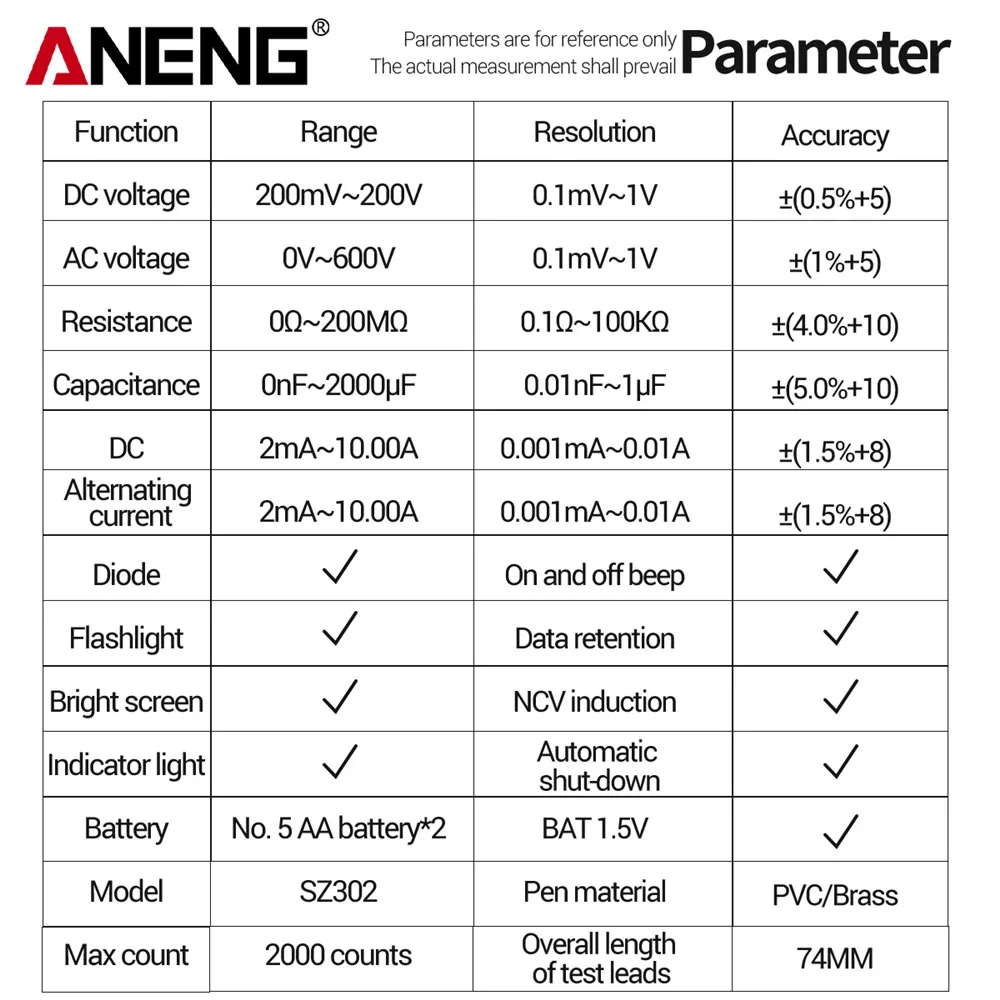

Function
|
Range
|
Resolution
|
Accurate
|
|
DC voltage
|
200mV/2V/20V/200V/600V
|
0.1mV/1mV/10mV/0.1V/1V
|
±(0.5%+5)
|
|
AC voltage
|
200V/600V
|
100mV/1V
|
±(1%+5)
|
|
DC current
|
2mA/20mA/200mA/10.00A
|
0.001mA/0.01mA/0.1mA/0.01A
|
±(1.5%+8)
|
|
AC current
|
2mA/20mA/200mA/10.00A
|
0.001mA/0.01mA/0.1mA/0.01A
|
±(1.5%+8)
|
|
Resistance
|
200Ω/20kΩ/200kΩ/2MΩ/200MΩ
|
0.1Ω/10Ω/100Ω/1kΩ/100kΩ
|
±(4.0%+10)
|
|
Capacitance
|
20nF/200nF/20uF/2000uF
|
0.01nF/0.1nF/0.01uF/1uF
|
±(5.0%+10)
|
|
Diode
|
√
|
On and off beep
|
√
|
|

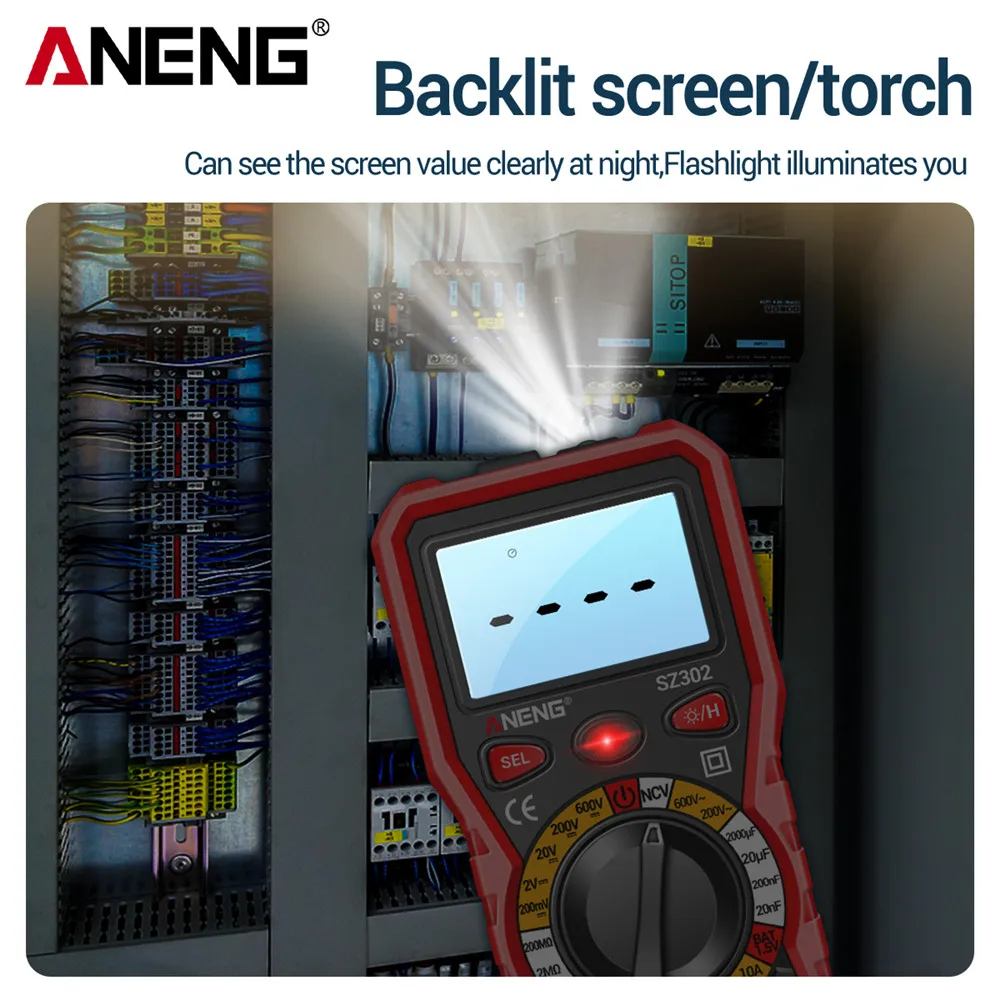

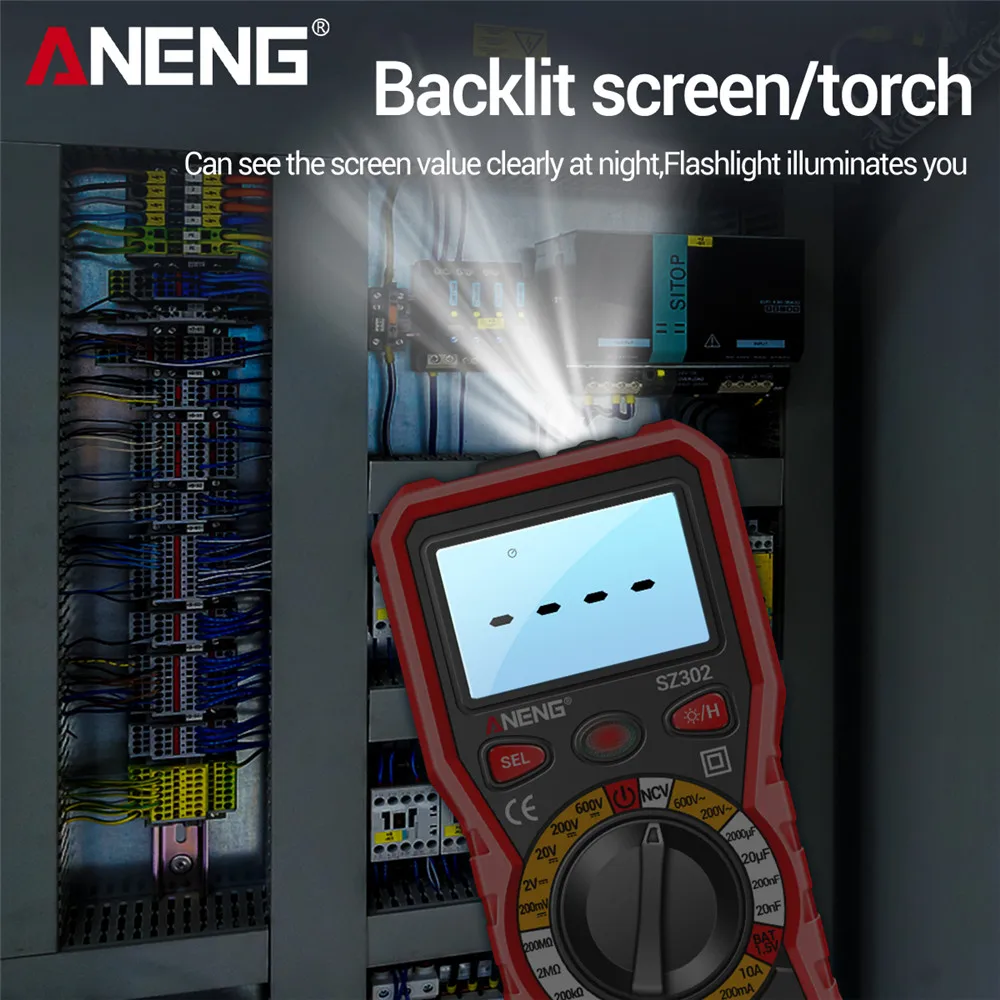

Flashlight
|
√
|
Data retention
|
√
|
|
Bright screen
|
√
|

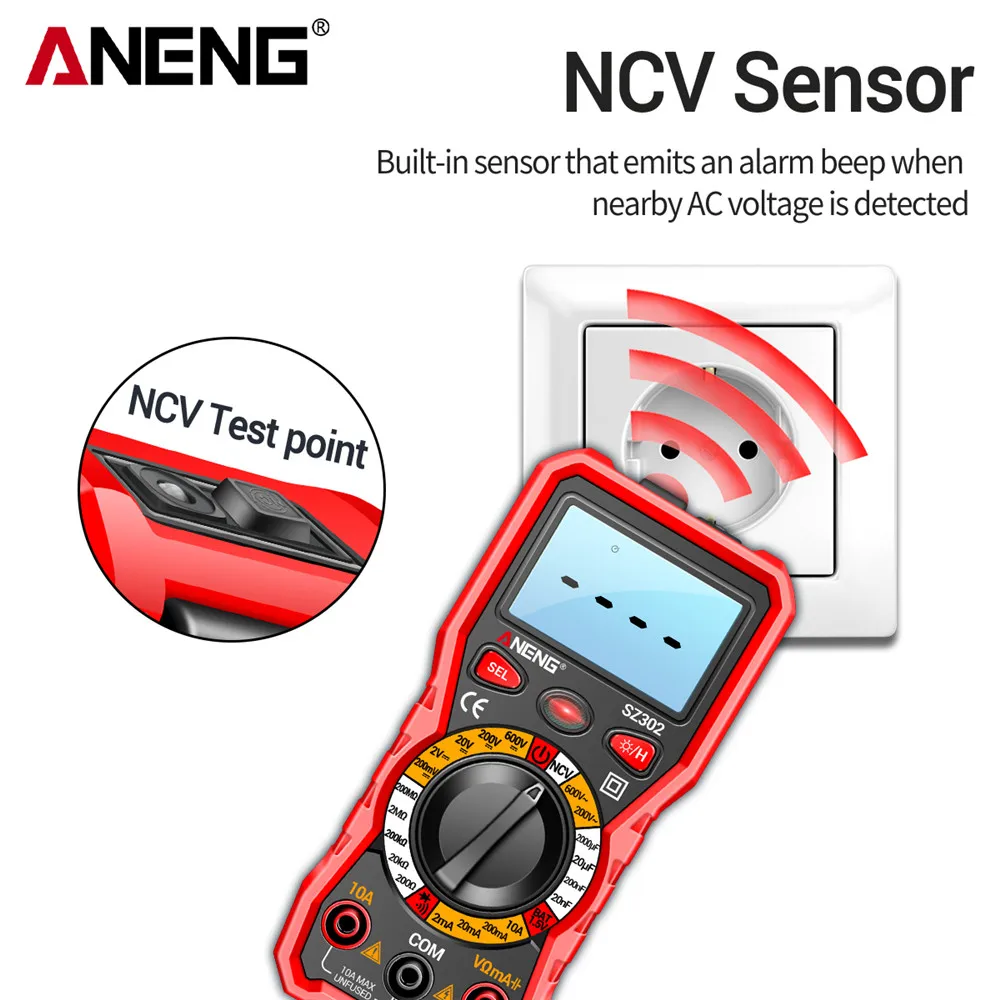

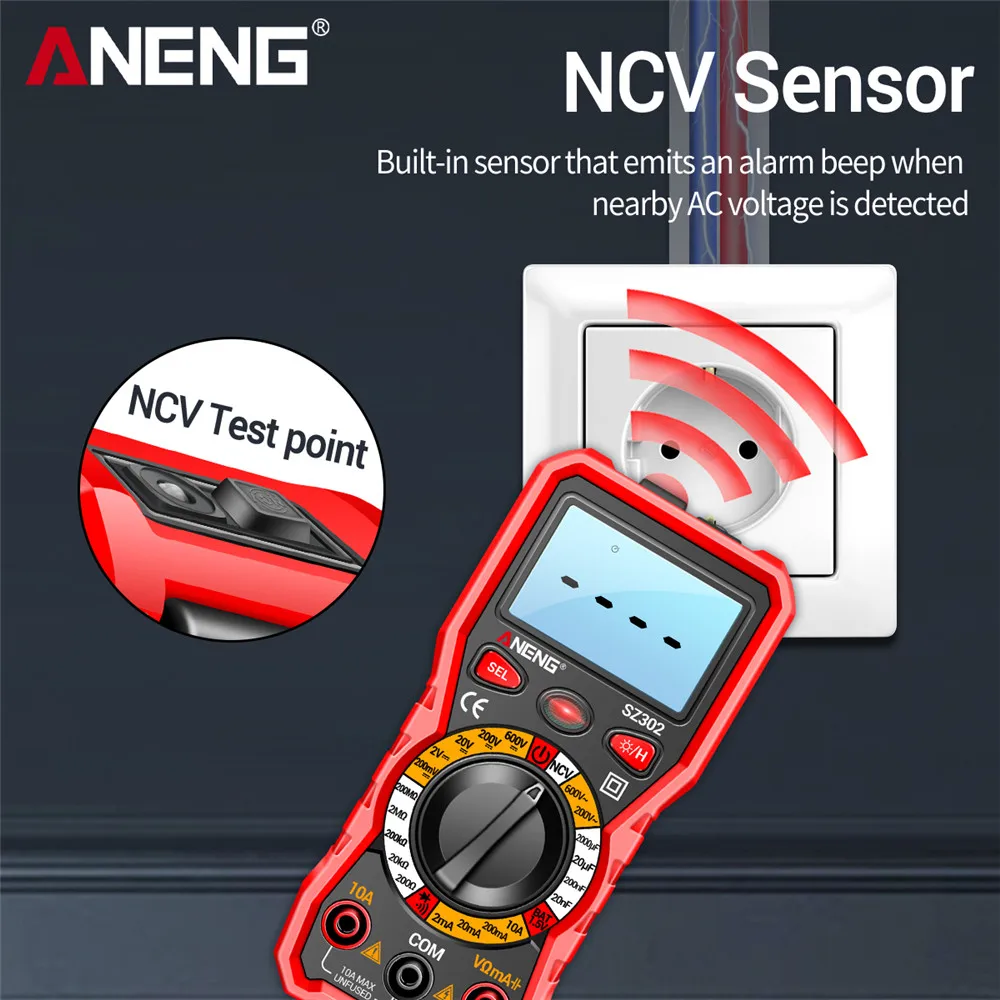

NCV induction
|
√
|
|
Indicator light
|
√
|

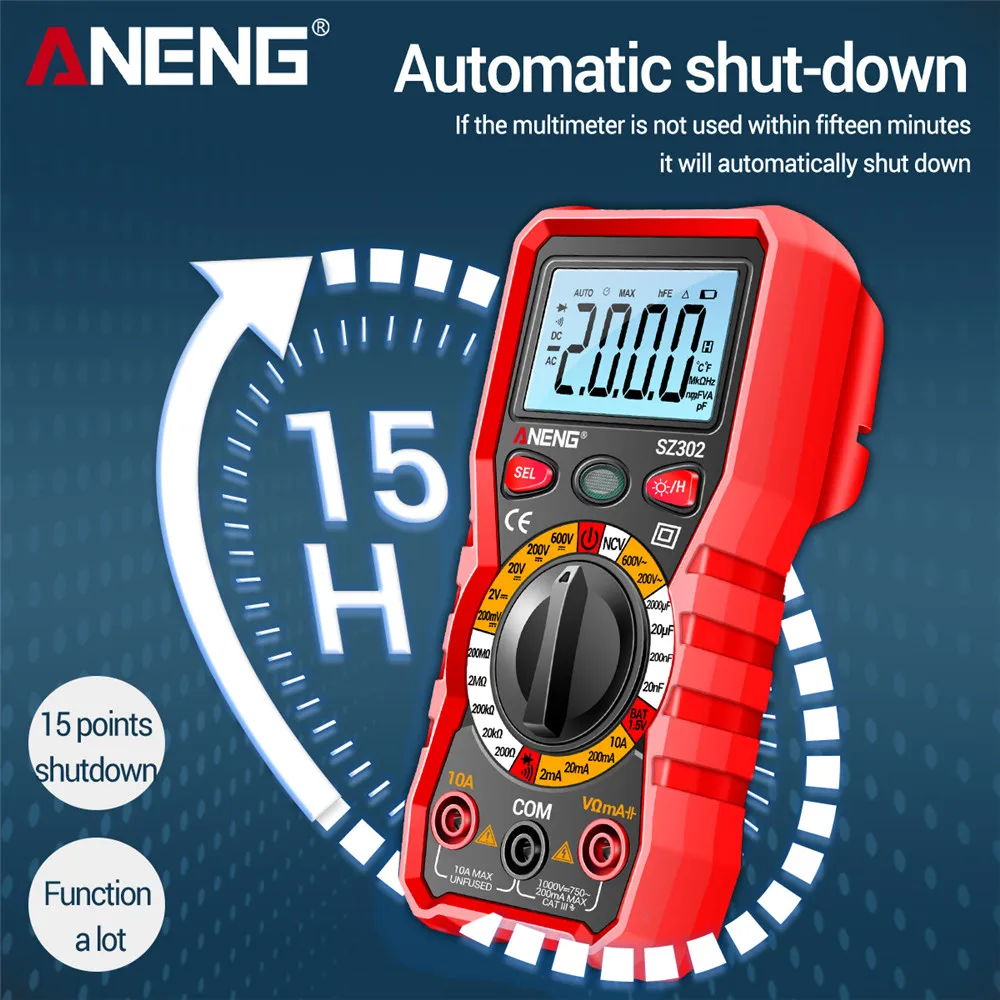

Automatic shut-down
|
√
|
|
Battery
|
No.5 AA battery*2
|
BAT 1.5V
|
√
|
|
Model
|
SZ302
|
Pen material
|
PVC/Brass
|
|
Max count
|
2000 counts
|
Overall length of test leads
|
74MM
|

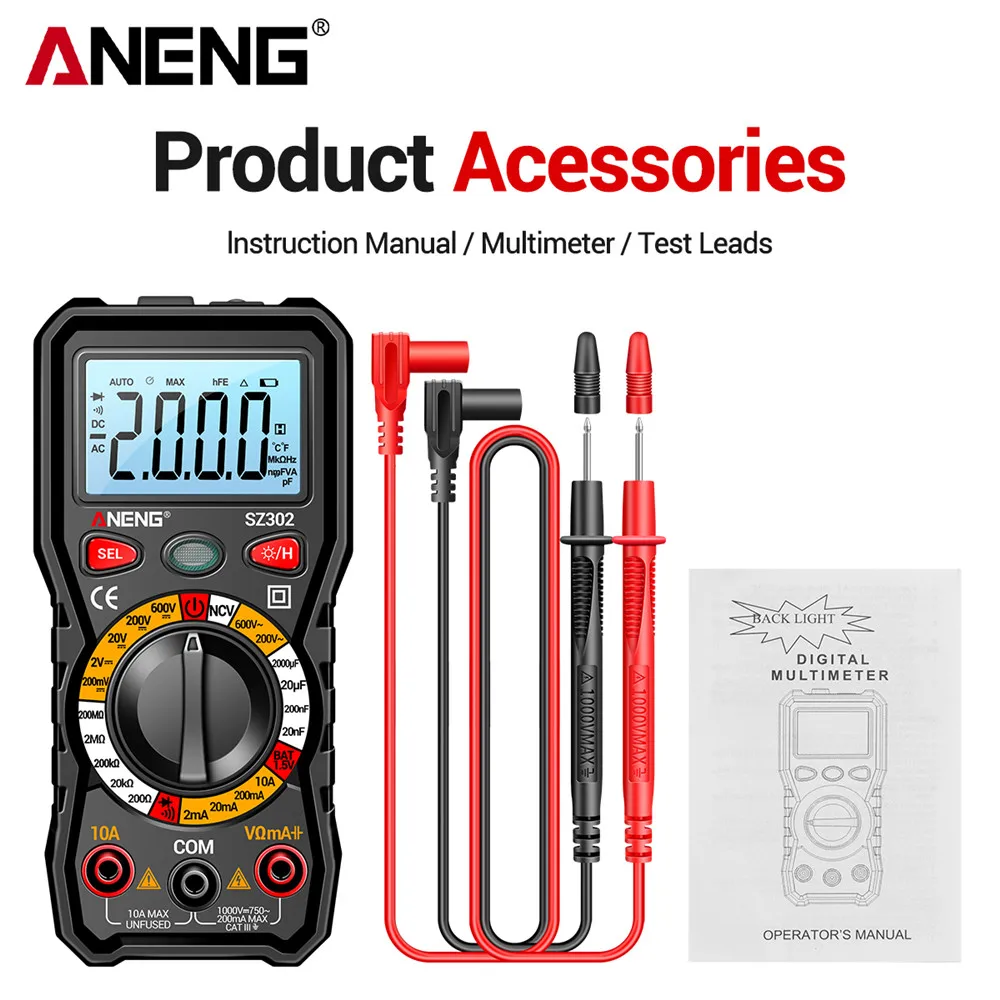

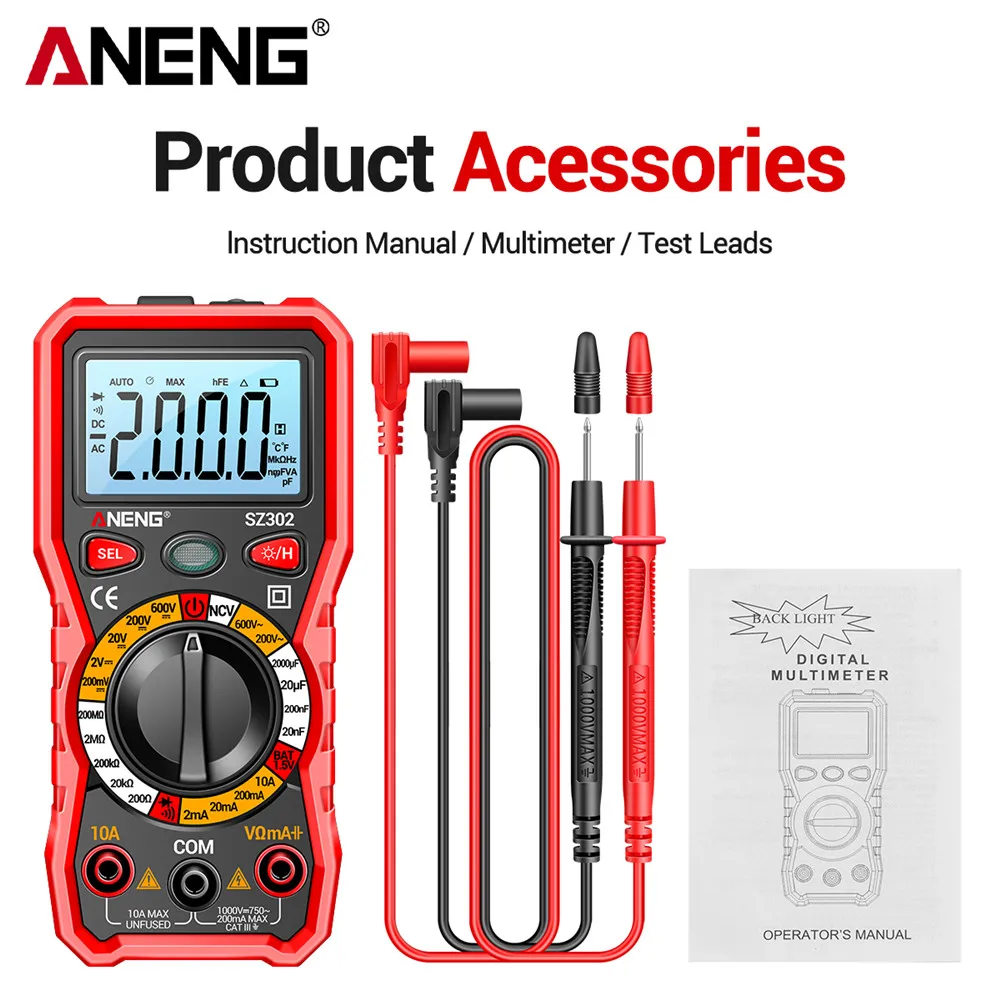

Packaging content:
1 x Multimeter (Without battery)
1 x Test lead
1 x User Manua
