Multifunction Digital Multimeter AC/DC Voltage

$31.79$33.79
FREE SHIPPING! ⭐⭐⭐⭐⭐

-9%
76 (reviews)
Free Shipping

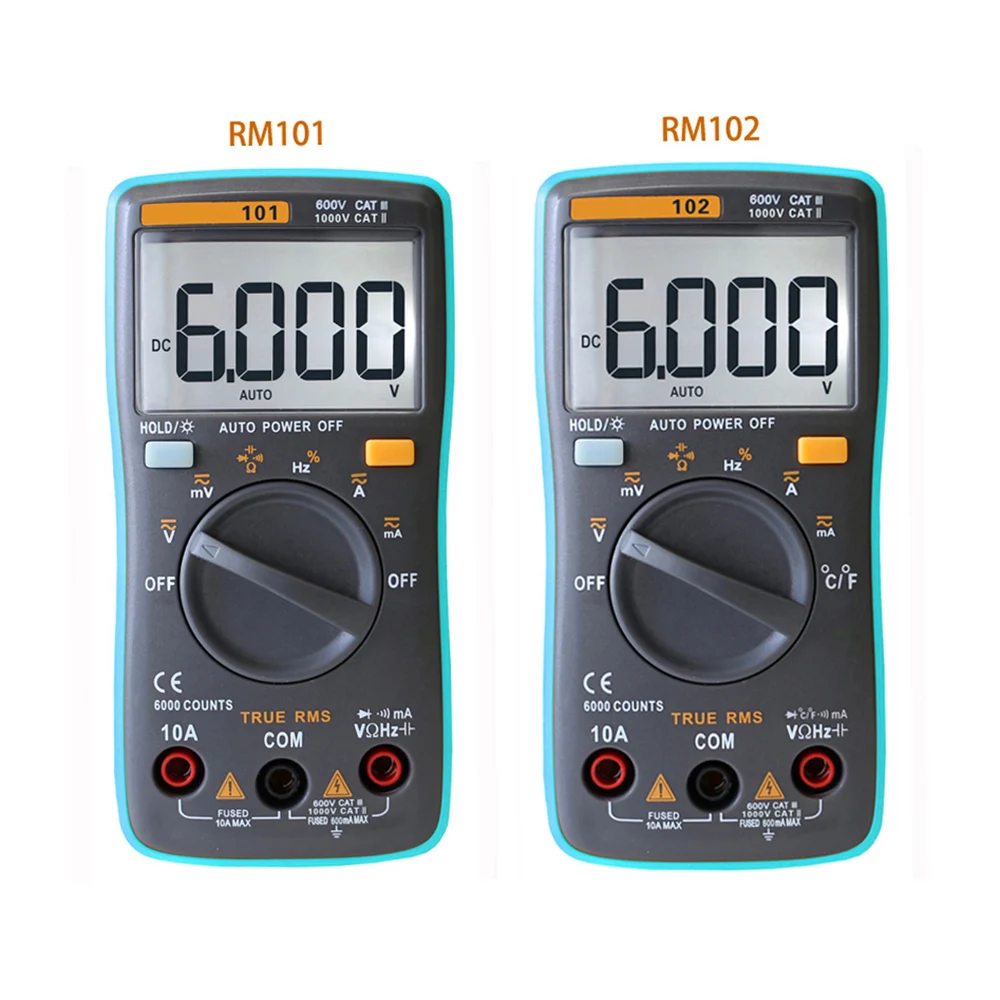

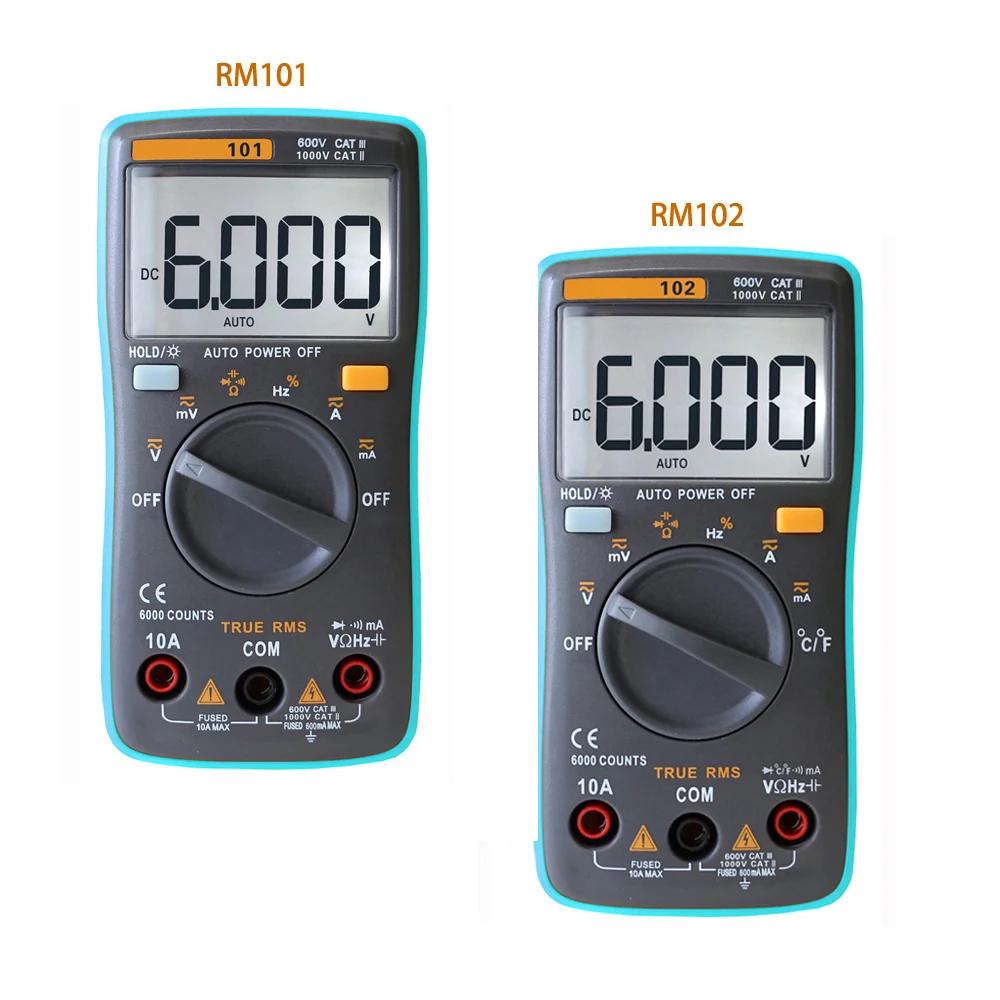

RM101RM102
Clear
  • Unique Products Only Found Here!
  • Free Shipping!
  • Lowest Prices!
  • 100% Money Back Guarantee!

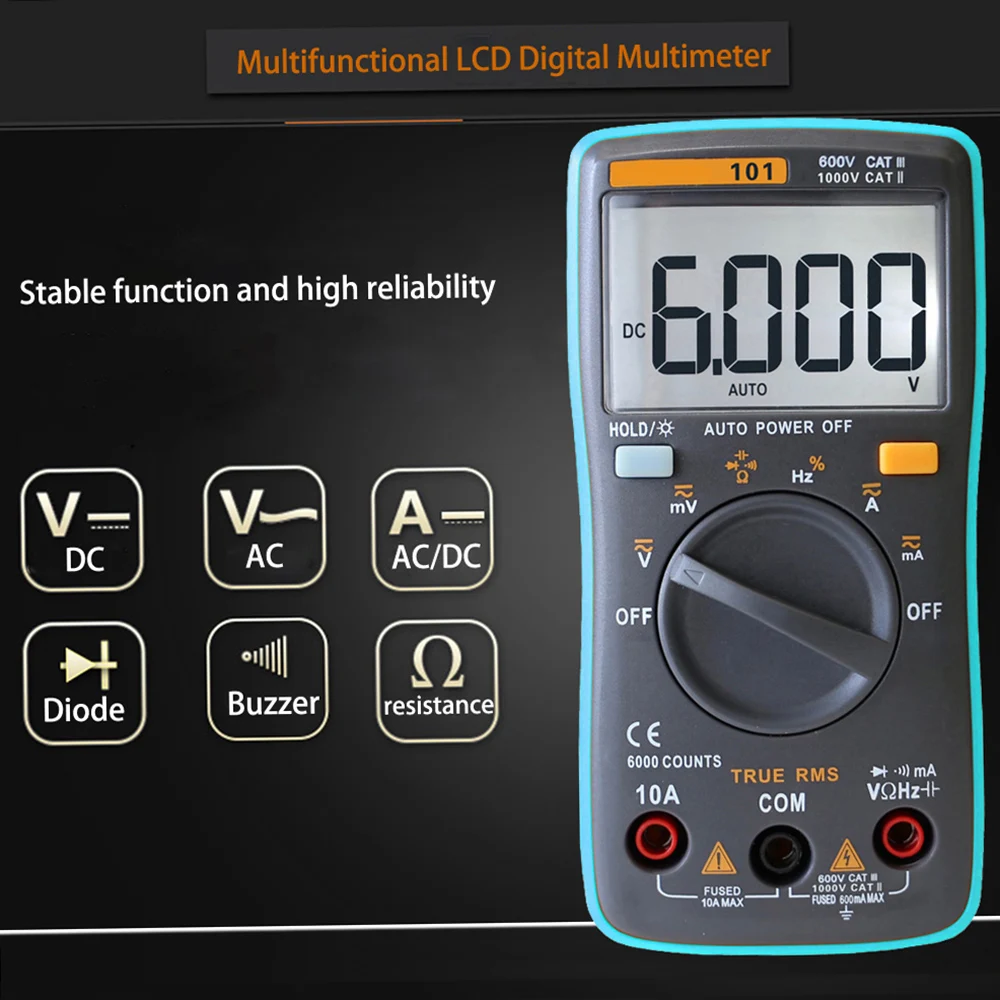

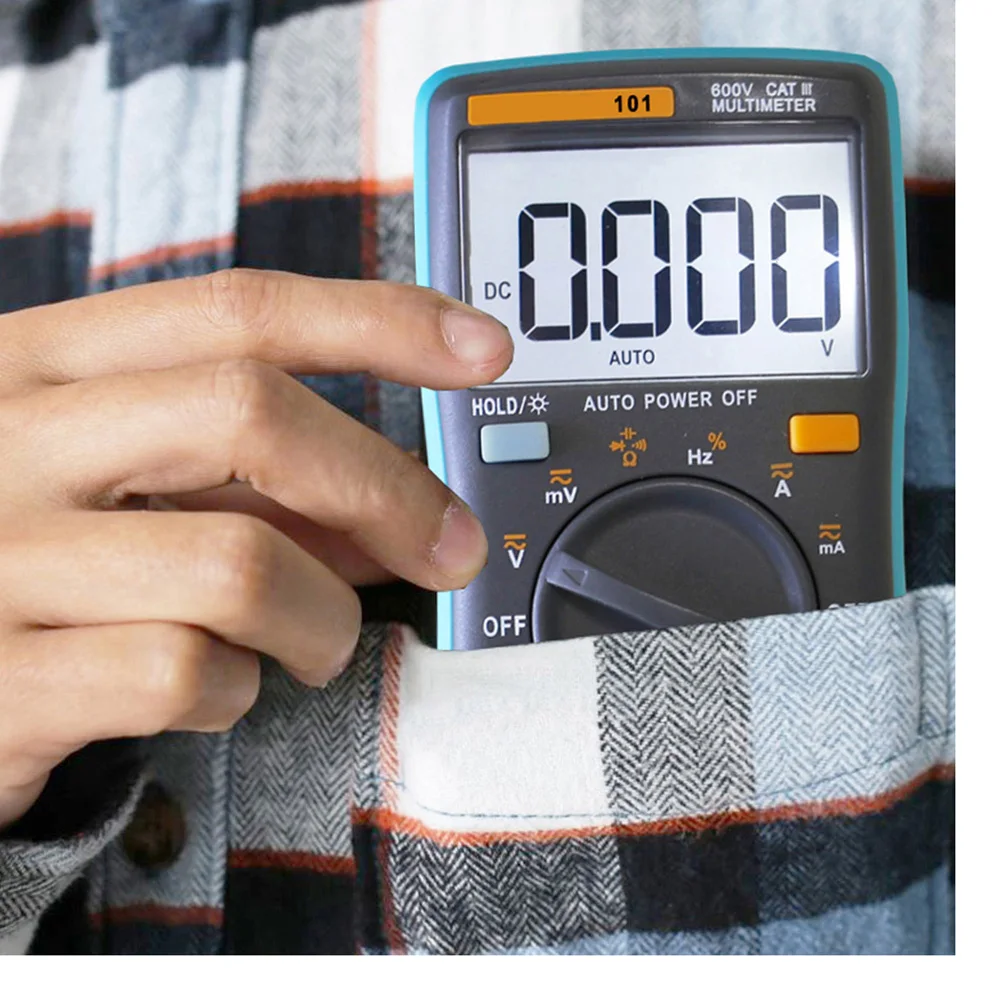

Multifunction Digital Multimeter AC/DC Voltage current tongs Resistance Diode Capacitance Temperature Tester

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc. This battery powered product uses double-integral style A/D transform as its core, and is characterized by stable function and high reliability. With the features of overload protection and backlight lighted LCD display for clear reading, this product is a perfect tool for lab, factory, radio fans, and family use.

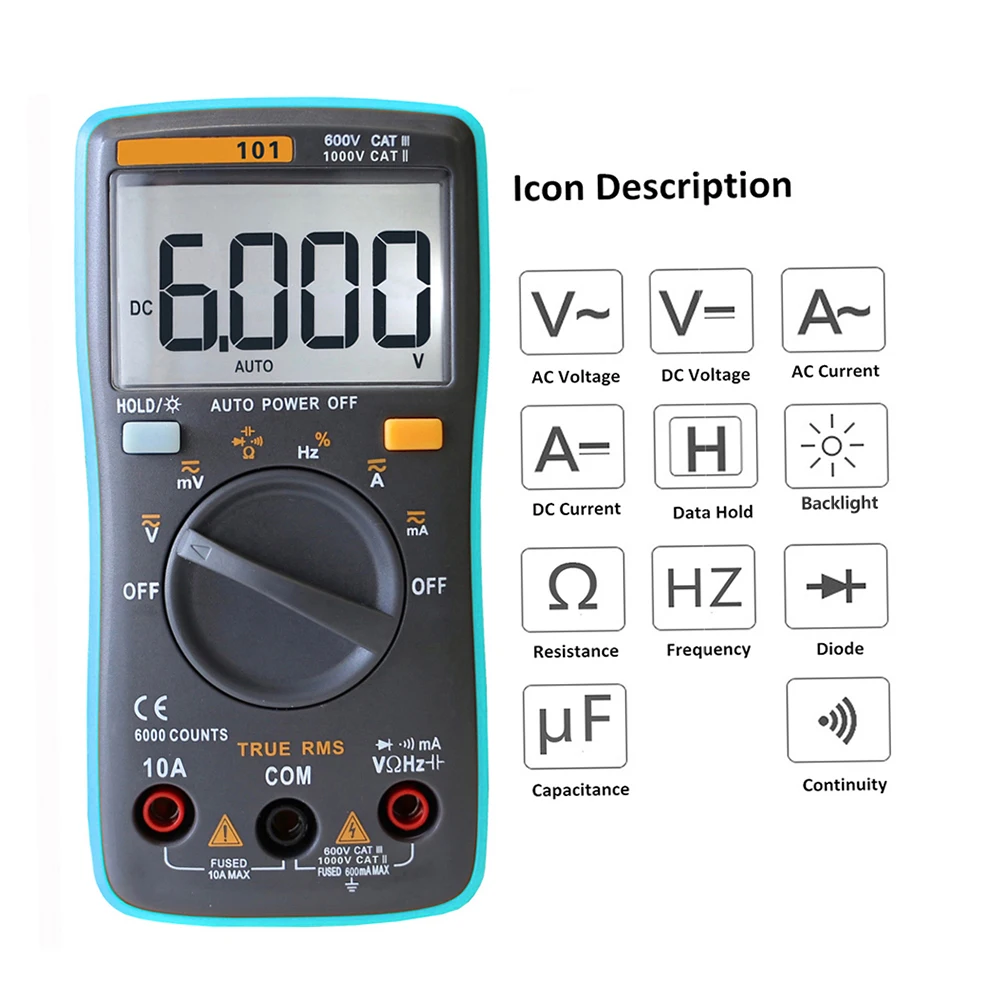

Features:

LCD display with backlight.
Max. display: 6000 Counts.
Automatic polarity identification.
Measurement mode: Double-integral style A/D transform.
Measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, etc.
RM102 is specially designed with temperature measurement function.
Over range indication: OL.
Low voltage indication.
Auto power off.
Sample rate: 3 times per second.

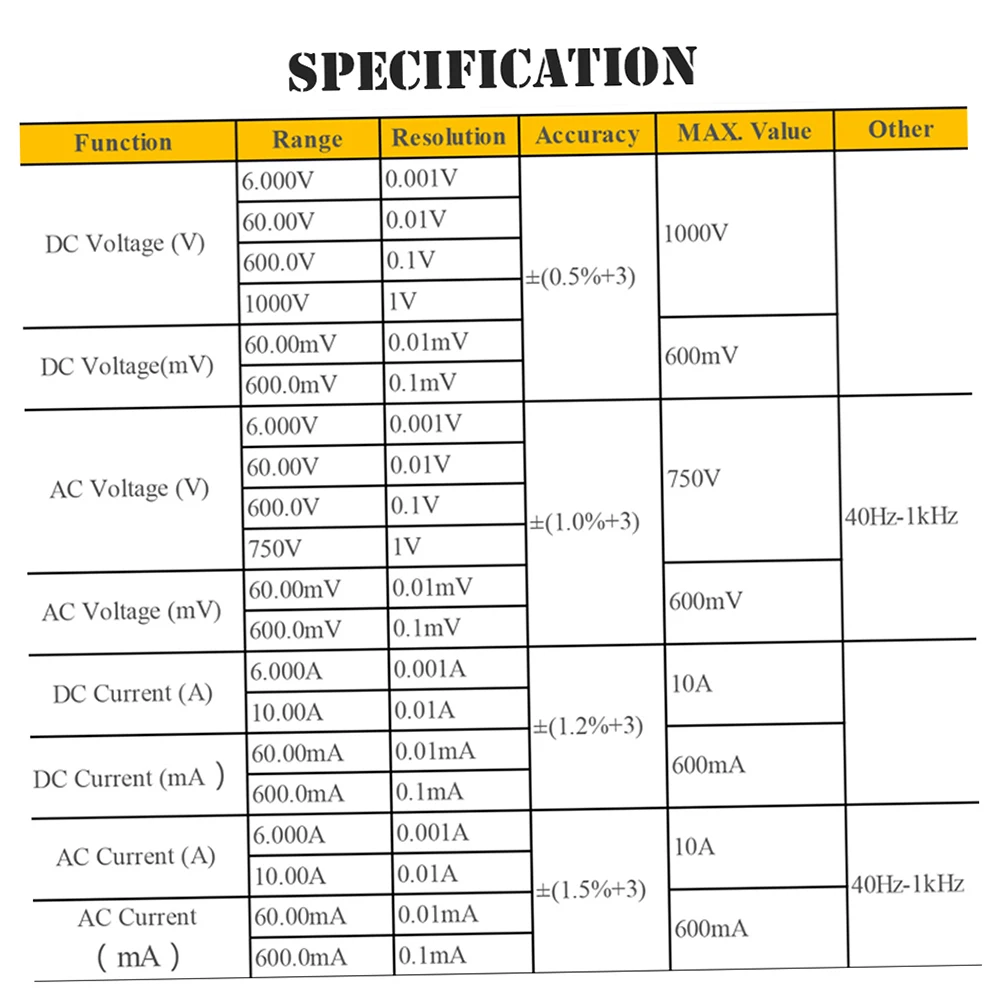

Specifications:
Model: RM102
Maximum display: 6000
Working environment: 0-40℃
Relative humidity: <80%
Supply power: 3V (1.5V battery * 2) (Not included)
DC voltage: 600mV/6V/60V/600V/1000V
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V
AC voltage: 6V/60V/600V/700V
AC voltage resolution: 1mV/10mV/100mV/1V
DC current: 600μA/6000μA/60mA/600mA/10A
DC current resolution: 0.1μA/1μA/10μA/100μA/10mA
AC current: 600μA/6000μA/60mA/600mA/10A
AC current resolution: 0.1μA/1μA/10μA/100μA/10mA

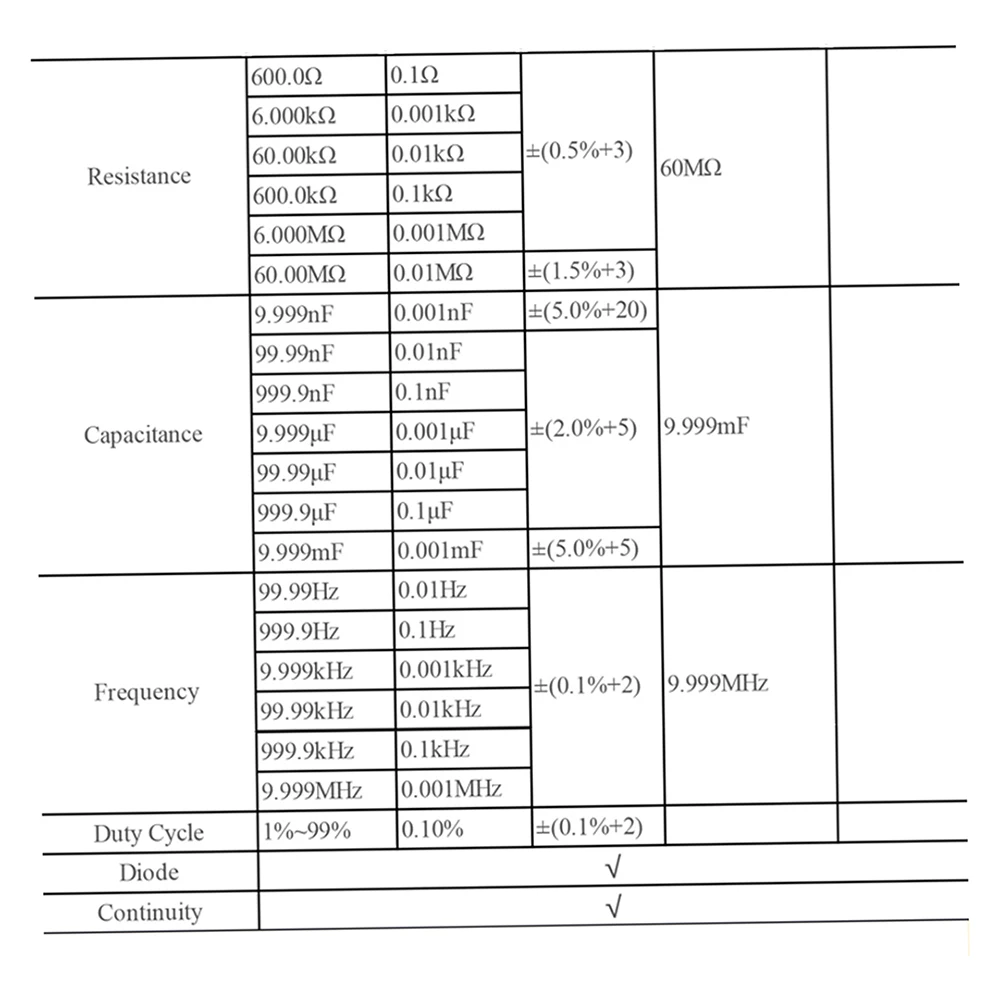

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ

Capacitance: 10nF/100nF/1μF/10μF/100μF/1000μF/10000μF
Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/1μF/10μF
Temperature: -20~1000°C / -4~1832°F(only for RM102)
Temperature resolution: 1°C/1°F
Item size: Approx. 13 * 6.5 * 3.2cm / 5.1 * 2.56 * 1.26in
Item weight: 113g / 3.98oz
Package size: 14 * 7 * 5cm / 5.5 * 2.75 * 1.97in
Package weight: 182g / 6.42oz (RM101), 202g / 7.13oz (RM102)

Package list:
1 * Multimeter

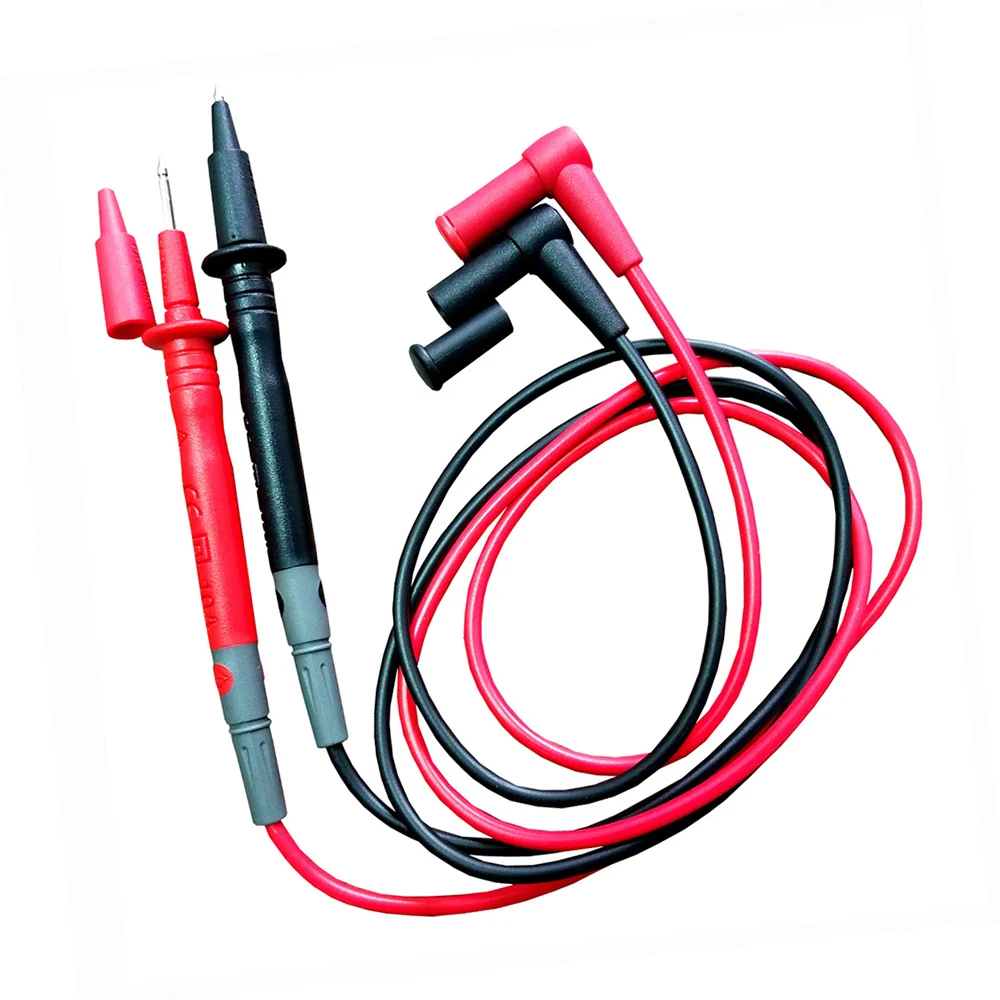

1 * Pair of test leads
1 * Thermocouple (Only for RM102)
1 * English user manual

Note: When switched to mV, it is normal if there is slight value change even without operation, and the testing result won’t be influenced at all.

Additional information

Operating Mode

as the discriptiopn

Measuring Capacitance Range

10nF/100nF/1uF/10uF/100uF/1000uF/10000uF

Measuring Resistance Range

600 ohm /6k ohm /60k ohm /600kohm/6Mohm/60Mohm

Model Number

RM102

Dimensions

13 * 6.5 * 3.2cm / 5.1 * 2.56 * 1.26in

Operating Temperature

0 – 40 ℃

Measuring Inductance Range

—-

Display Type

Digital Display

DIY Supplies

ELECTRICAL

Brand Name

RICHMETERS

Origin

Mainland China

Certification

NONE

Measuring Current Range

AC 600uA/6000uA/60mA/600mA/10A

Measuring Voltage Range

6V / 60V / 600V / 700V
