3650 motor used for 1/10 Car
3650-2300KV Specifications:
Motor Specifications：
3650 2300KV Motor
Watts: 900W
Max voltage: <22V
Max Amps: 41A
KV(RPM/Volt): 2300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650-3100kv Specifications:
Watts: 900W
Max voltage: <16V
Max Amps: 56A
KV(RPM/Volt): 3100KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650-3900kv Specifications:
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 4300kv motor Specifications:( onlysupport 2s battery )
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 4300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 5200KV Motor( onlysupport 2s battery )
Watts: 900W
Max Voltage: <9.6V
Max Amps: 94A
Rotor Poles: 4
KV(RPM/Volt): 5200KV
Max RPM: 50000
Length: 50mm
Diameters: 36mm with fins
Shaft diameter: 3.175mm
Length of Extend Shaft: 15mm
Plug Type: 4mm golden banana plug

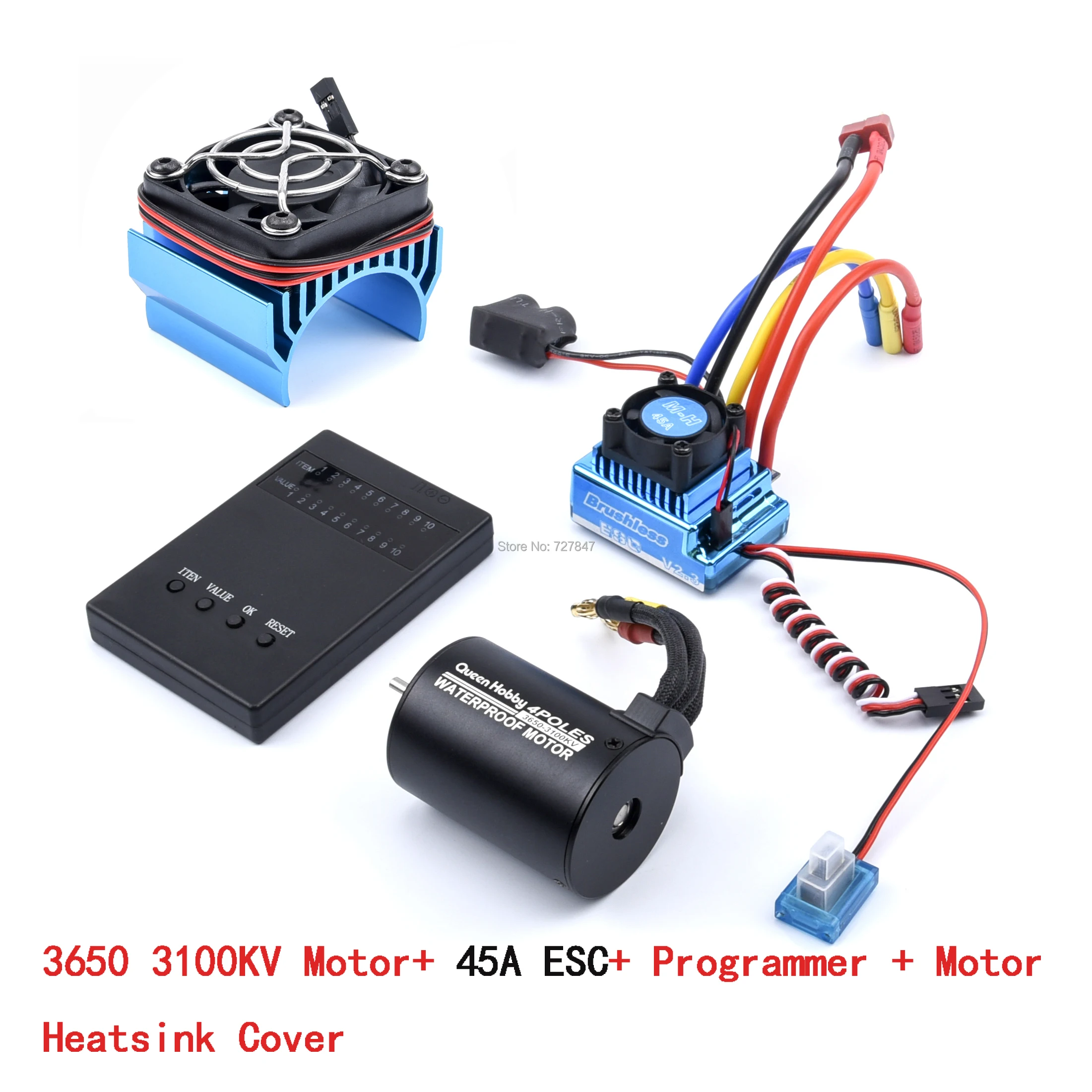

45A ESC Specification:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: T Plug Male
60A ESC Specifications:
Item Name: Waterproof ESC
Continue Current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
80A ESC Specifications:
Continue Current: 80A
Burst Current: 480A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

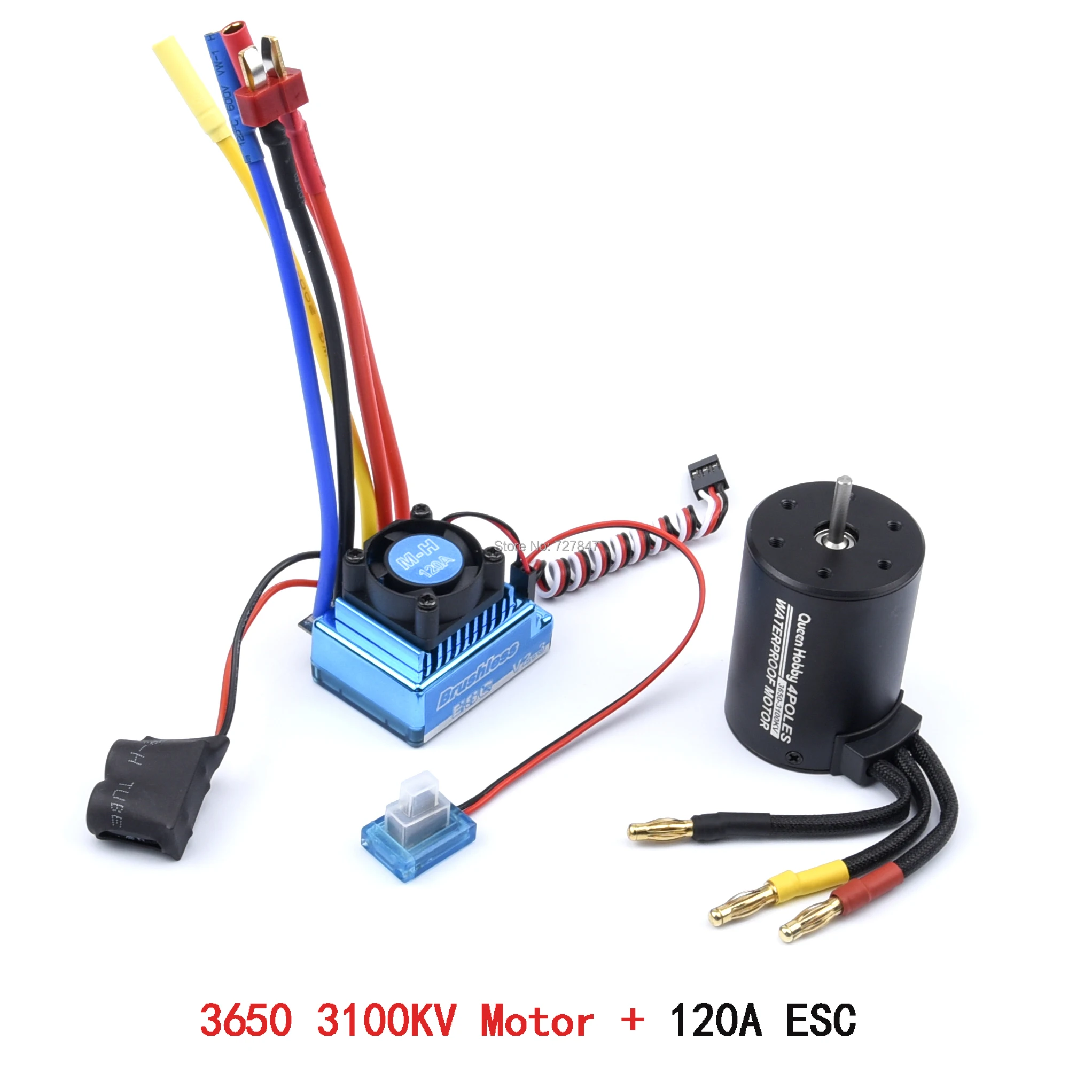

120A ESC Specifications:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2-3s LiPo / 4-12s NiMh
BEC output: 5.3V / 5A(Switch Mode)
Power Supply Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch
Programming Card for RC Car ESC Brushless Electronic Speed Controller
Features:
Light weight
Easy to use
Portable design
Programming Card for RC Car ESC Brushless Electronic Speed Controller, which
was specially designed for Brushless Electronic Speed Controller selled in our store.
Specifications:
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state

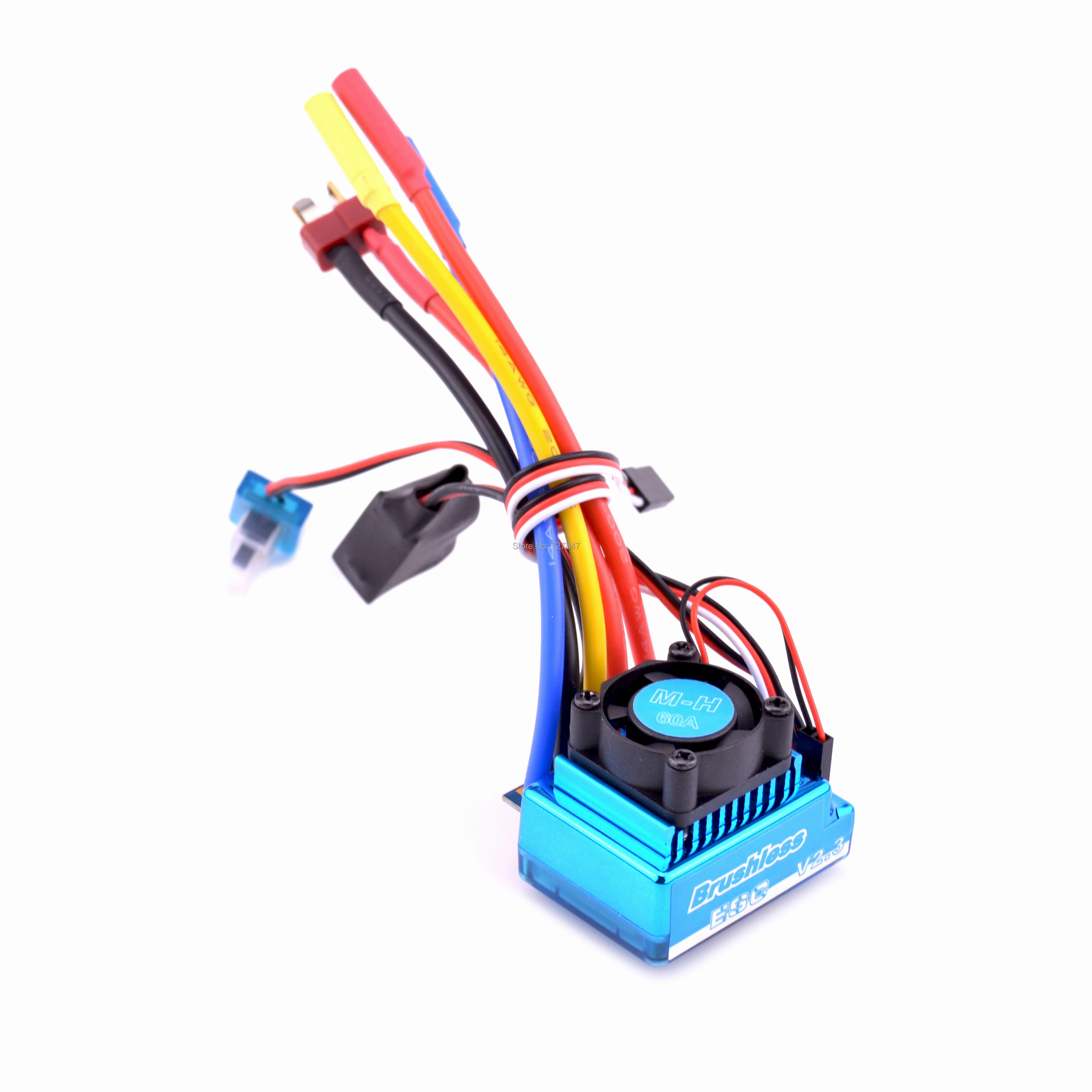

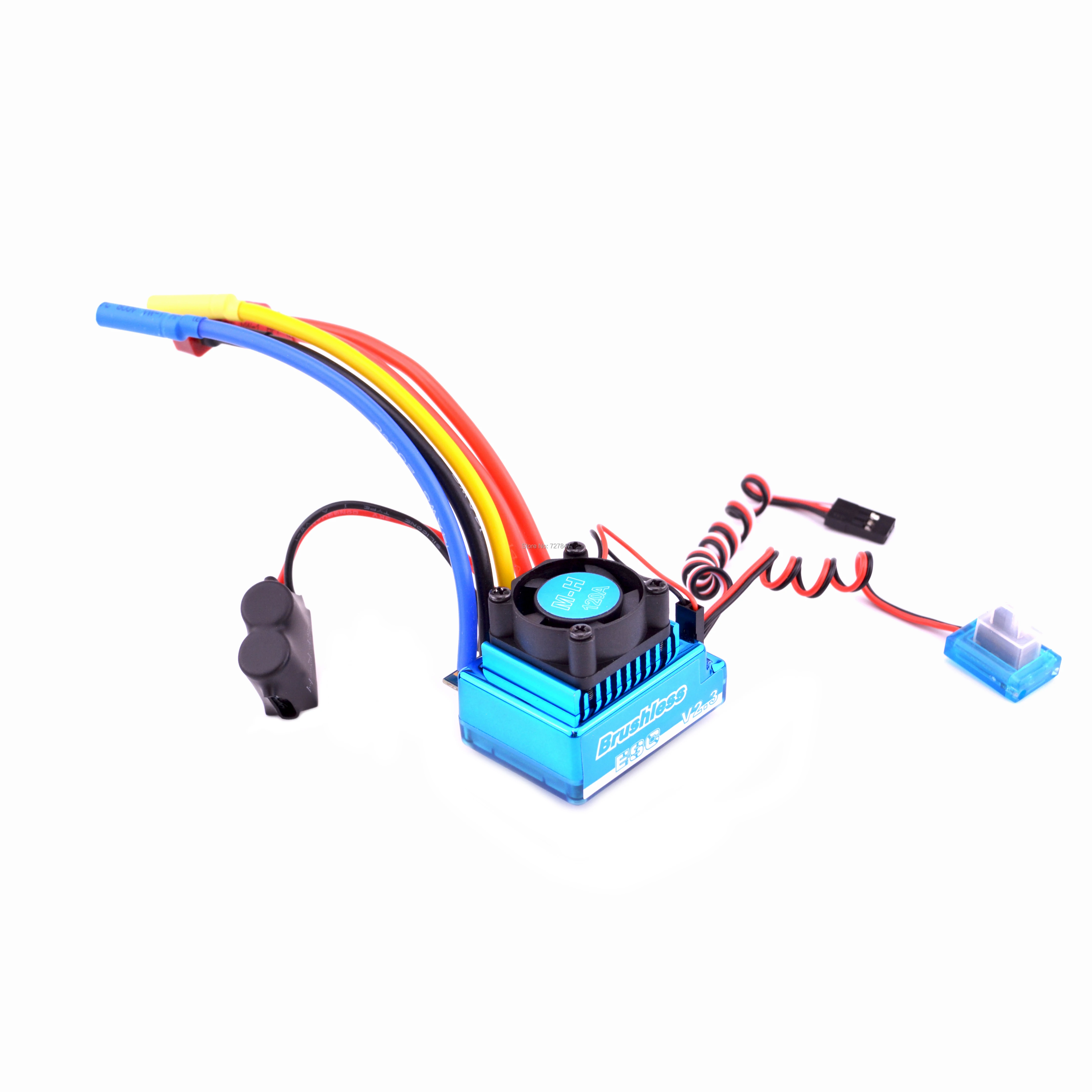

Waterproof 60A Brushless ESC Electric Speed Controller with 5.8V/3A BEC for 1/10 RC Car
The waterproof 60A brushless ESC is built with the highest quality components to ensure high efficiency operation. It features enhanced low-voltage protection, over-heat protection and throttle signal loss protection, which is suit for 1/10 RC car.
Features:
Bulid in 5.8V/3A BEC
Supports program card to make adjustments
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Waterproof, suitable for various condition races
Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection
Specifications:
Brand name:Queenhobby
Item name: waterproof ESC
Continue current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)
Weight: 82g (with cables)
540 3650 3660 3670 Motor Heat Sink Cover w/ Cooling Fan Heatsink RC Parts
It is made of Aluminum Alloy and Plastic combined,with fan cooling and stainless steel protecting net cover
A replacement for RC 1:10 Car 540 3650 3660 3670 Motor Heatsink
motor outdiameter is 36MM can be suitable
Color: Purple,Black,Red,Silver,Blue,Gold( Defualt color is Blue or Black, please leave a message to us if you want other color )
Material: Aluminum Alloy, Plastic
Dimension: 46x40x40mm / 1.81×1.57×1.57″(LxWxH)
Cable length: 290mm
Weight: 48.6g
Warm Notice: 3650 4300KV and 36505200KV Motor Combo, only support 2s battery.
(send as your choice as the picture showed)
