Waterproof 180/270 / 360 Degree 20KG 25KG 30kg 35kg Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm For RC Car

$31.79$72.79
FREE SHIPPING! ⭐⭐⭐⭐⭐

-35%
76 (reviews)
🔥9 sold in last 24 hours/Only 2 left in stock
1x 180 20KG Servo1x 180 25KG Servo1x 180 30KG Servo1x 180 35KG Servo1x 180 Servo 1x Arm1x 270 20KG Servo1x 270 30KG Servo1x 270 35KG Servo1x 270 Servo 1x Arm1x 360 30KG Servo1x180Servo 1xArm1x180Servo 1xArm1x180Servo 1xArm1x270 Servo 1xArm1x270Servo 1xArm1x360 Servo 1xArm4x 180 20KG Servo4x 180 25kg Servo4x 180 30kg Servo4x 180 35kg Servo4x 180 Servo 4x Arm4x 270 20KG Servo4x 270 30kg Servo4x 270 35kg Servo4x 270 Servo 4x Arm4x 360 30kg Servo4x180 Servo 4xArm4x180 Servo 4xArm4x180 Servo 4xArm4x270 Servo 4xArm4x270 Servo 4xArm4x360 Servo 4xArm
Clear
100% MONEY BACK GUARANTEE!
  • Unique Products Only Found Here!
  • Free Shipping!
  • Lowest Prices!
  • 100% Money Back Guarantee!

20KG Servo 180/270 Degree:

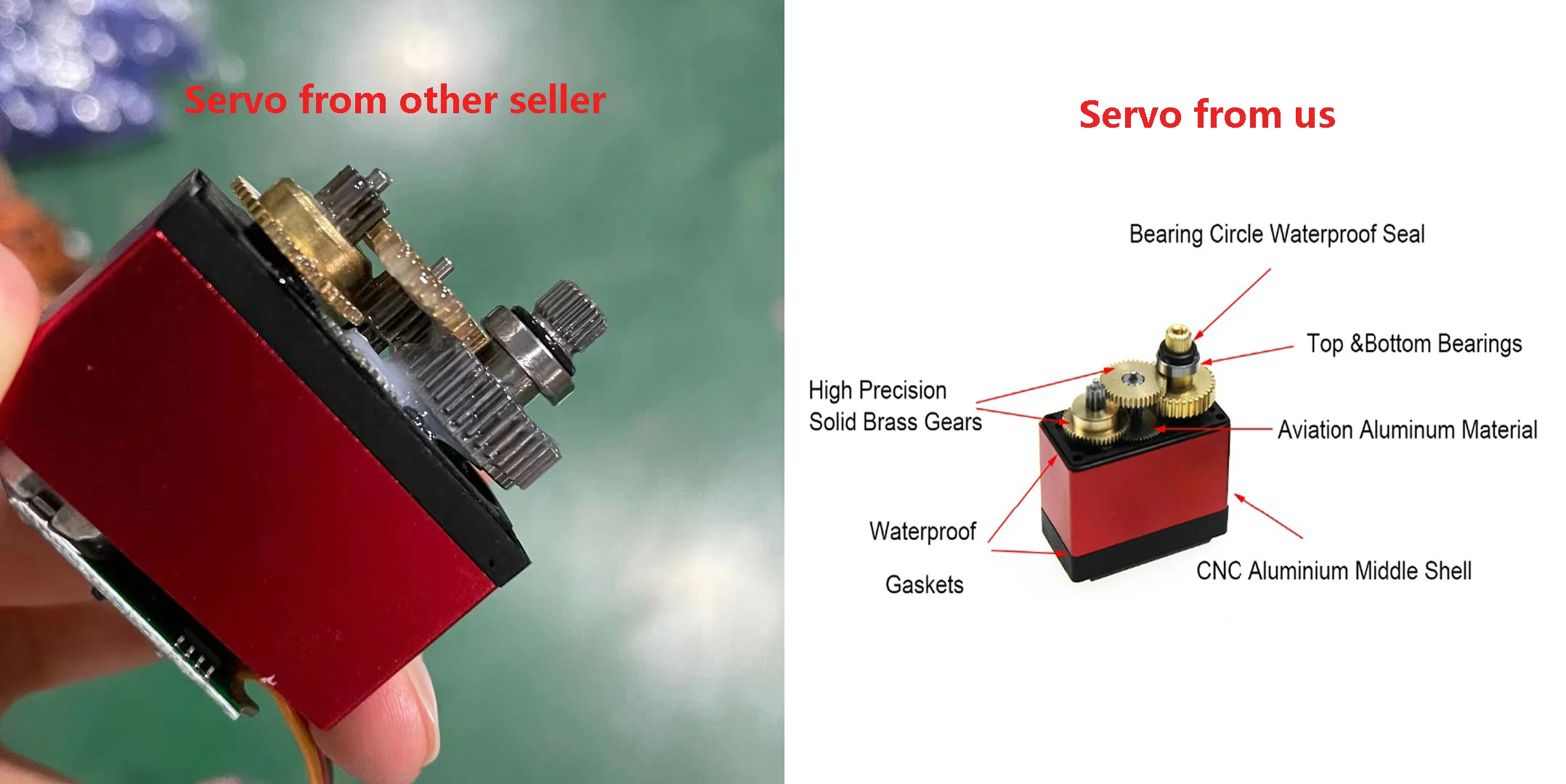

– High-precision metal gears with hard anodizing
– CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

25KG Servo 180 Degree:


Apply Environmental Conditon:
1.Storage Temperature Range: -30°C~80°C
2.Operating Temperature Range: -25°C~70°C
Standard Test Environment:
1.Temperature Range: -25°C~70°C
2.Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V – 7.2V
2.No load speed: 0.18sec/60° – 0.14sec/60°
3.Running current: 140mA – 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% – 3400mA±10%
6.Working voltage range: 4.8 – 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500~2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000~2000usec)



30KG Servo 180 /270 Degree:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C~80°C
2. Operating Temperature Range: -25°C~70°C
Standard Test Environment:
1.Temperature Range: 25°C~70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle:360°
5. Bearing:2BB
6. Horn gear spline: 25T Diameter: 5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire320mm±5mm
10. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V – 7.2V
2. No load speed: 0.24sec/60° – 0.17sec/60°
3. Runnig current: 140mA – 200mA
4. Peak stall torque:29.5kg.cm – 32kg.cm
5. Stall current: 2600mA±10% – 3400mA±10%
6. Working voltage range: 4.8 – 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500~2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500~2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000~2000usec)


35KG Servo 180/ 270 Degree Products Specifcation:


Apply Environmental Conditon:
1. Storage Temperature Range: -30°C~80°C
2. Operating Temperature Range: -25°C~70°C
Standard Test Environment:
1. Temperature Range: -25°C~70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5. Bearing: 2BB
6. Horn gear spline: 25T Diameter :5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10. Motor: Carbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V – 7.2V
2. No load speed: 0.32sec/60° – 0.22sec/60°
3. Runnig current: 140mA – 200mA
4. Peak stall torque: 32.7kg.cm – 35.2kg.cm
5. Stall current: 2600mA±10% – 3400mA±10%
6. Working voltage range: 4.8 – 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5. Running degree: 180°±3°(when 500~2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000~2000usec)
Note:The direction the servo rotates all depends on the signal the servo is receiving

Special Notice:


The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.

Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.

The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.




( send as your choice of the picture showed)
1PCS or 4PCS 20kg / 25kg / 30kg / 35kg servo

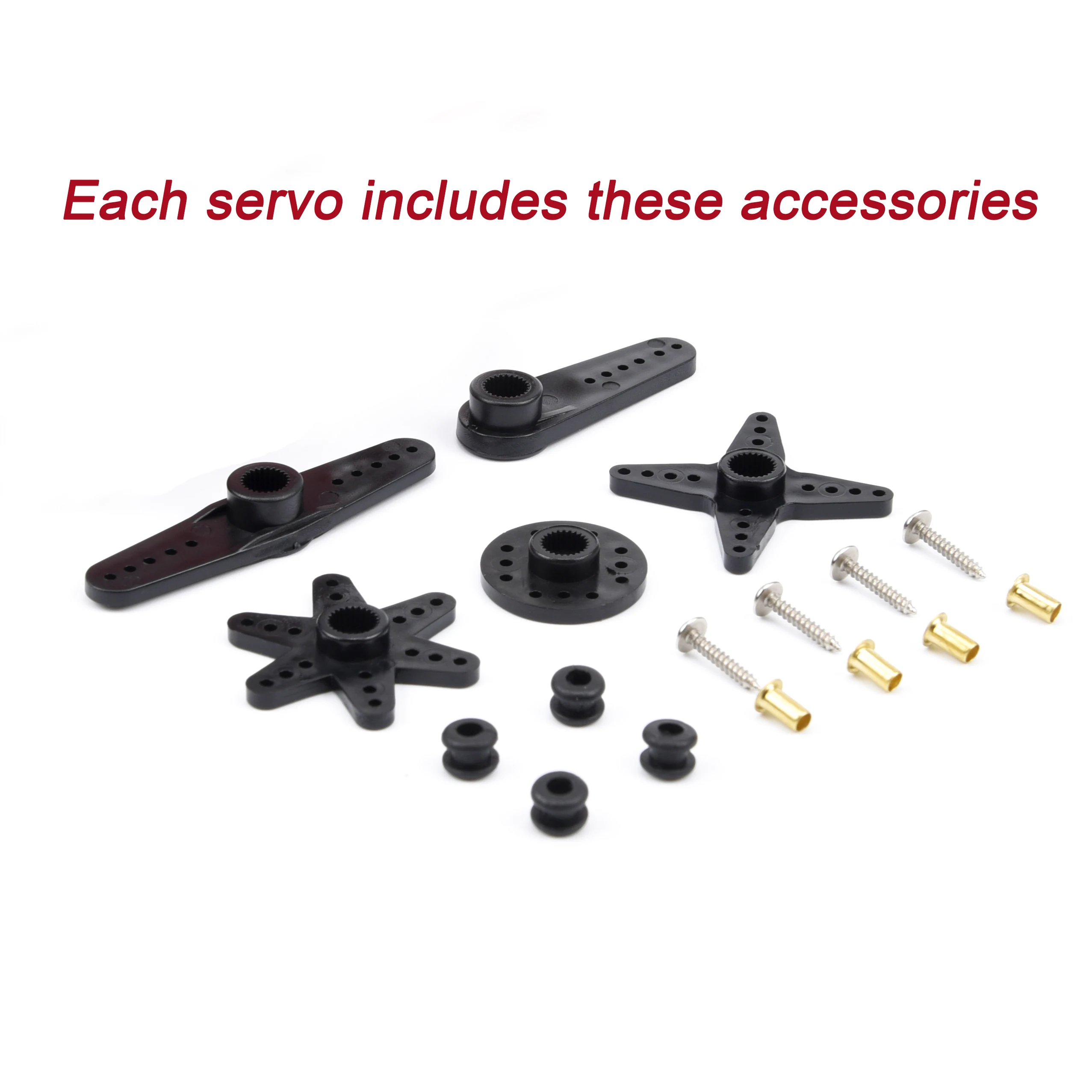

1PCS or 4PCS 25T arm

Note :We have a remote controlled 20kg / 25kg servo that can reach 180 Degree. if you want to buy, please open this link.


//www.aliexpress.com/item/32298149426.html


20KG 180 / 270 Degree Servo:


30KG 90~180/ 270 / 360 Degree Servo:
