Shotwave MiniWhip Active Antenna 10KHZ to 30MHZ mini whip HF LF VLF VHF SDR RX with portable cable

10KHz-30MHz Mini Whip Active Antenna Mini Whip HF LF HF VHF SDR RX Active Antenna w/ Portable Cable

Features:
– Latest version, using modern BF998 and BCX54 semi conductors.
– Real class A circuitry, clean reception without IMD.
– One coax connection.
– Broadband R/C coupling to the receiver, no transformer.

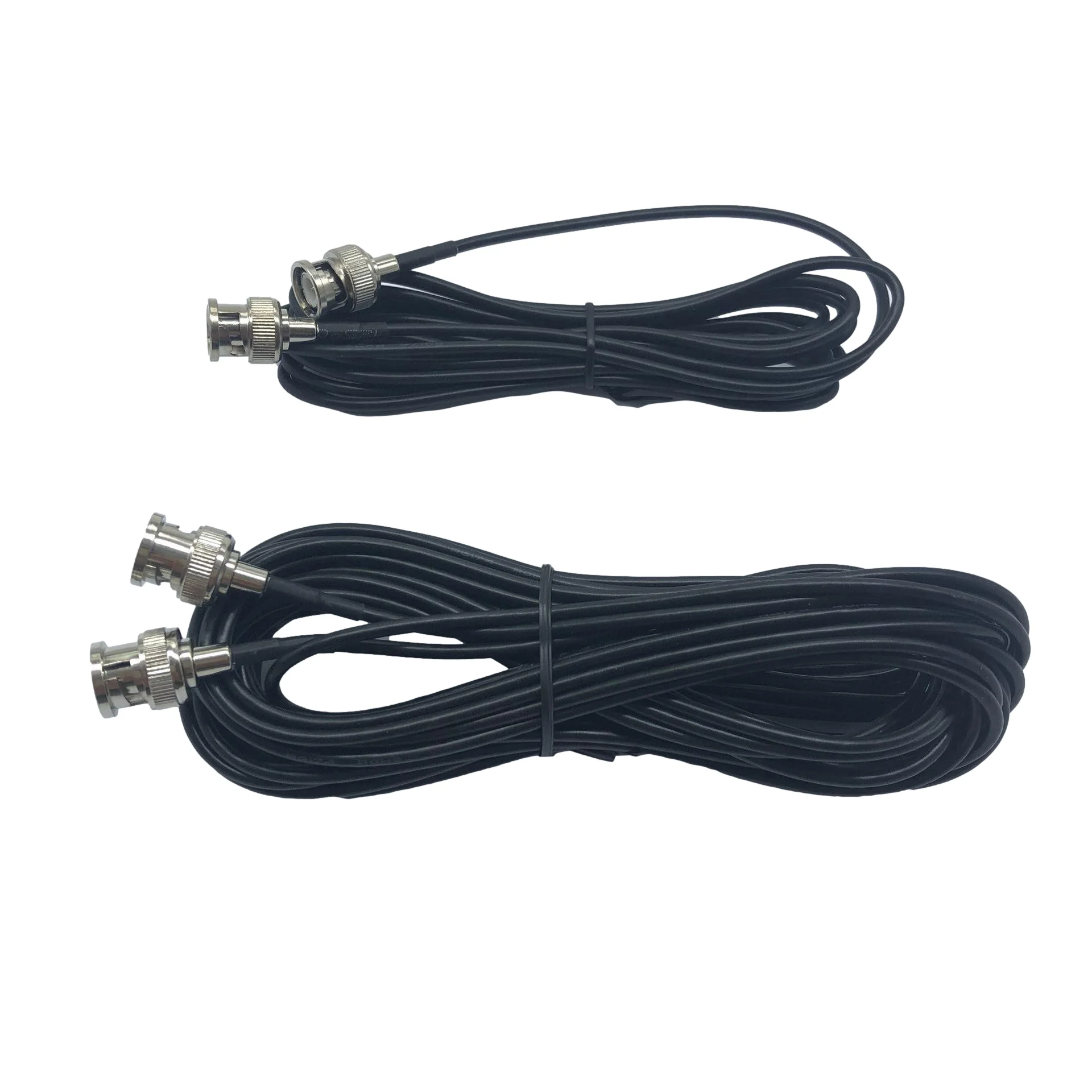

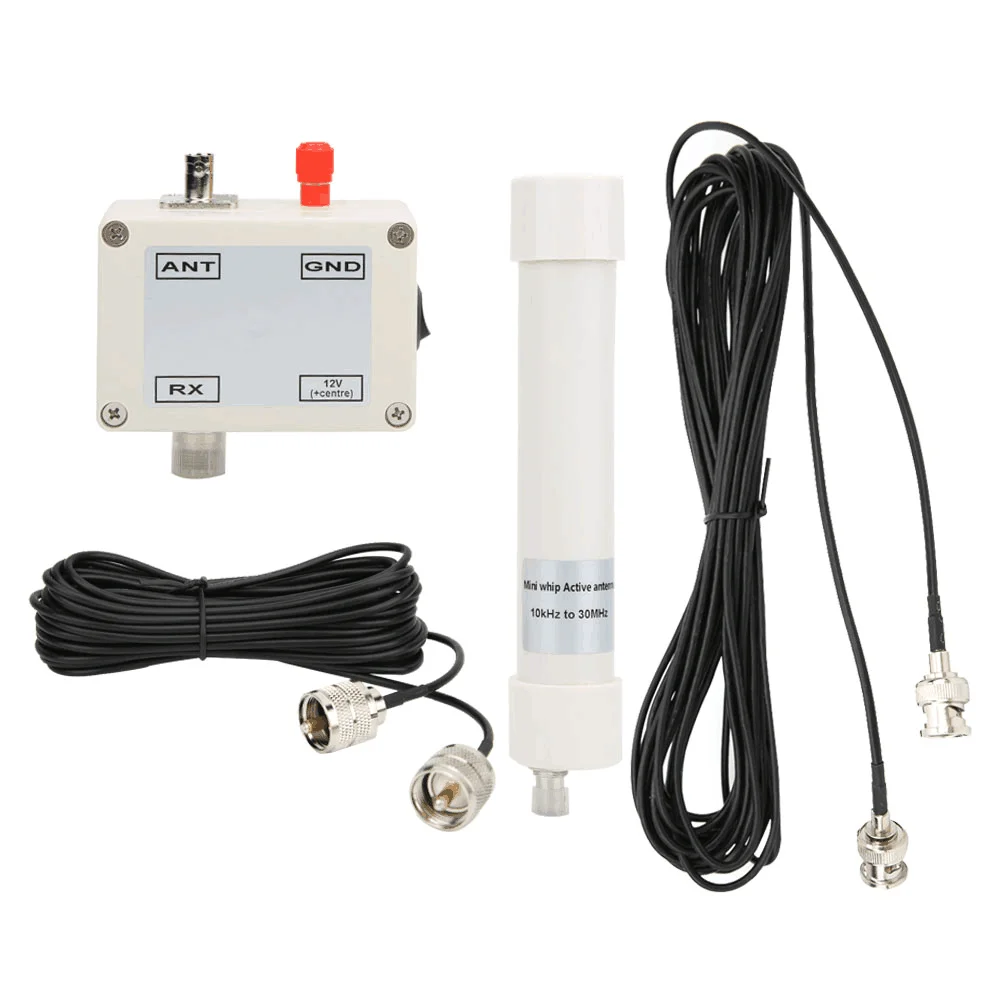

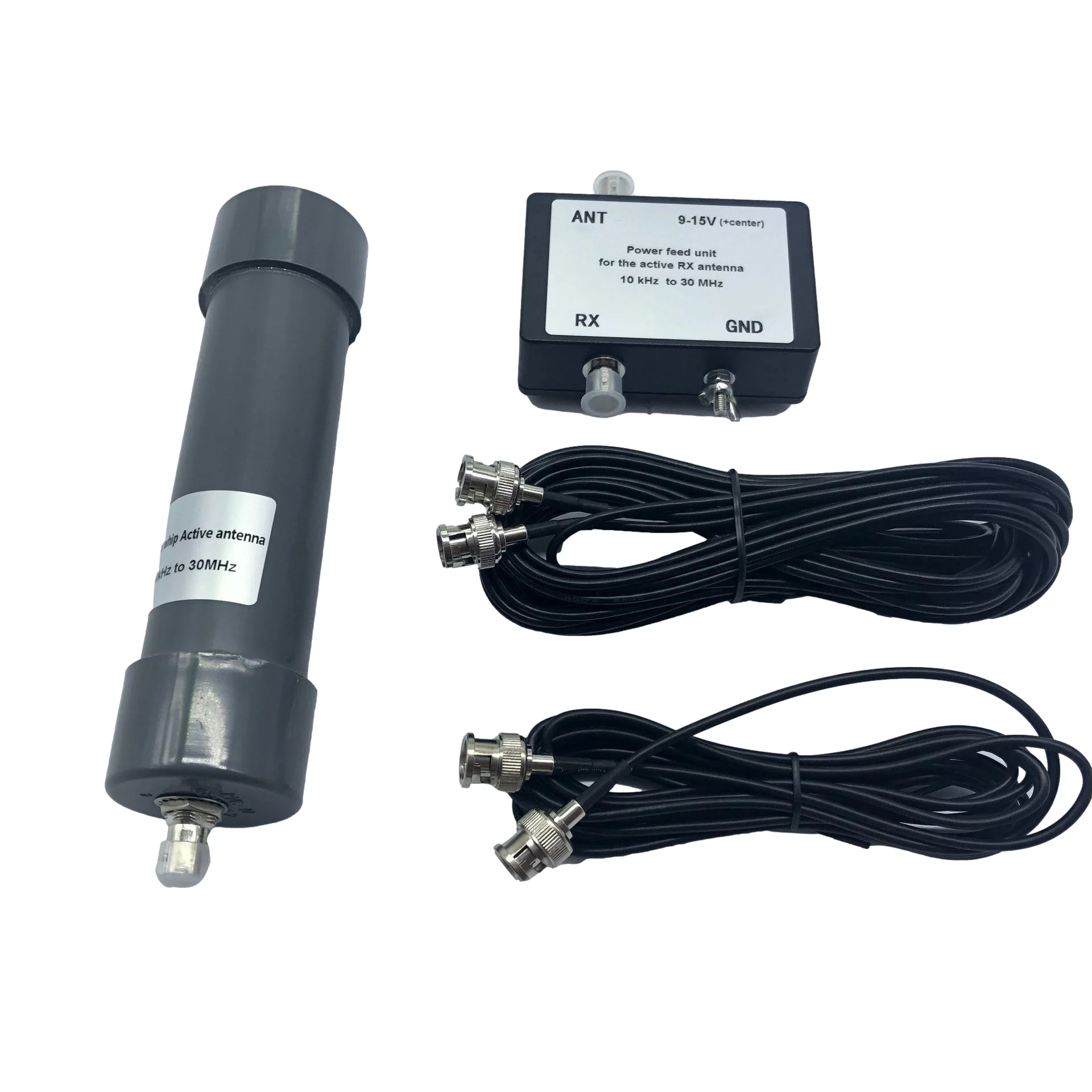

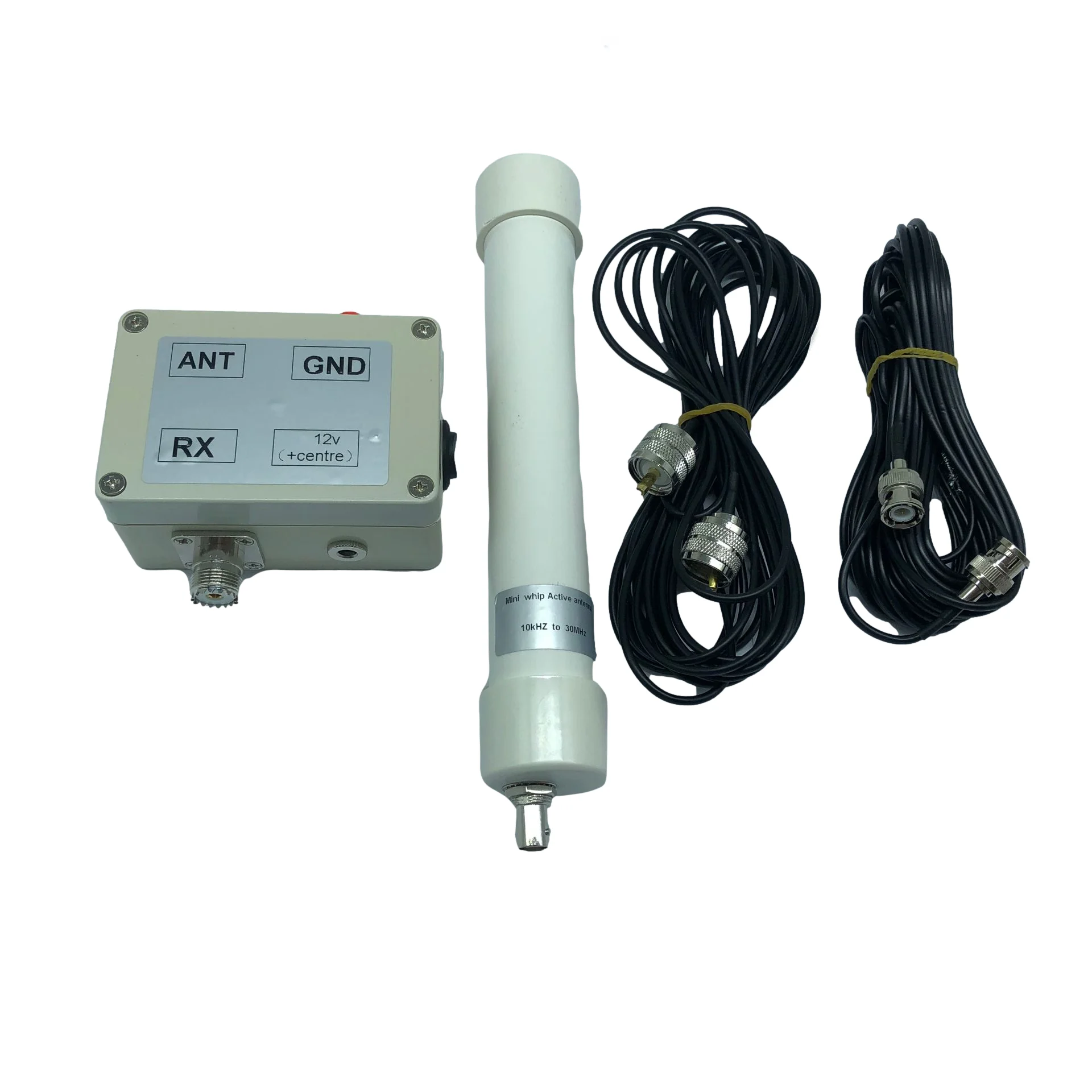

– Comes with 6m connection cable withM connector and 8m connection cable with BNC connector.

Technical Parameters:
– Frequency range: 10 kHz – 30 MHz

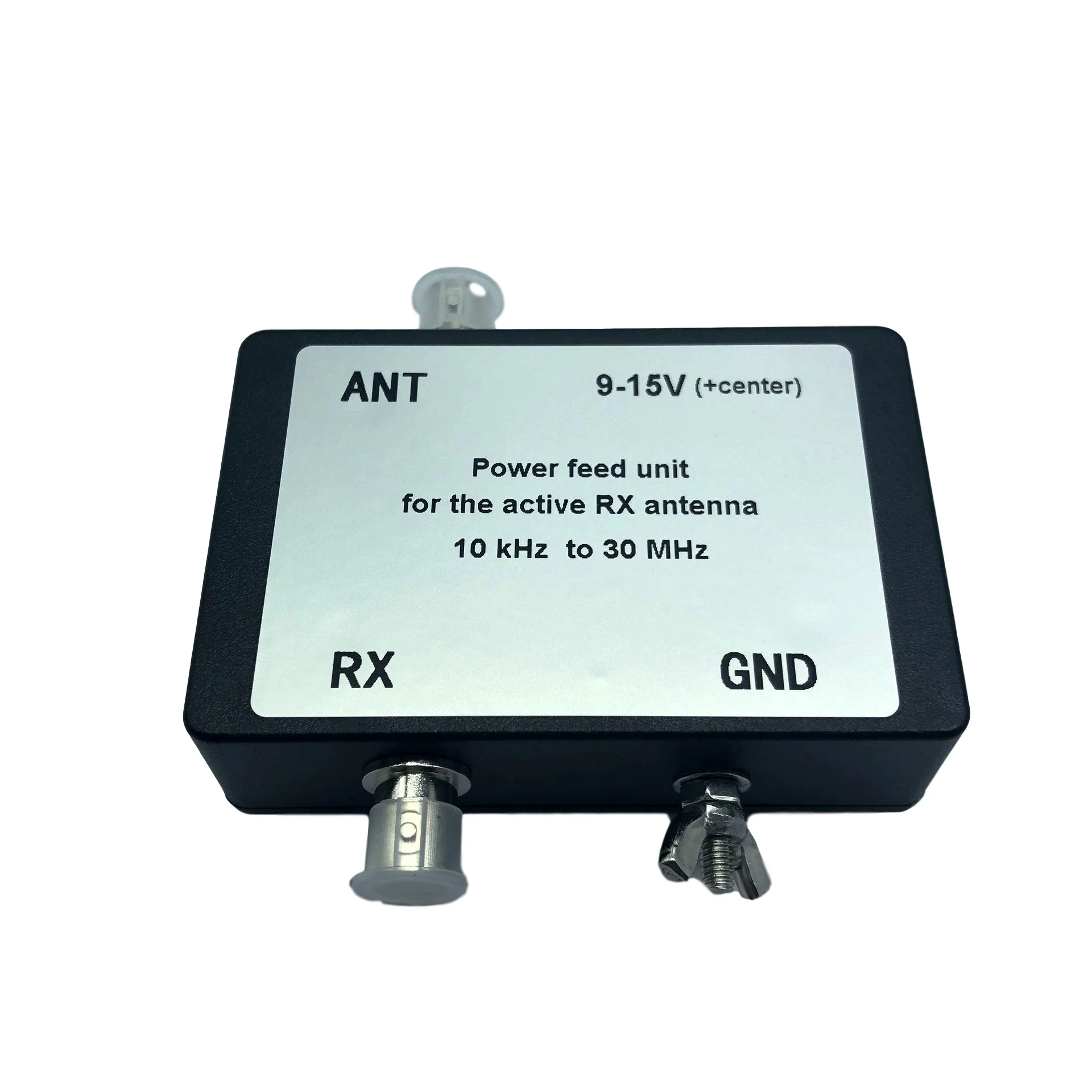

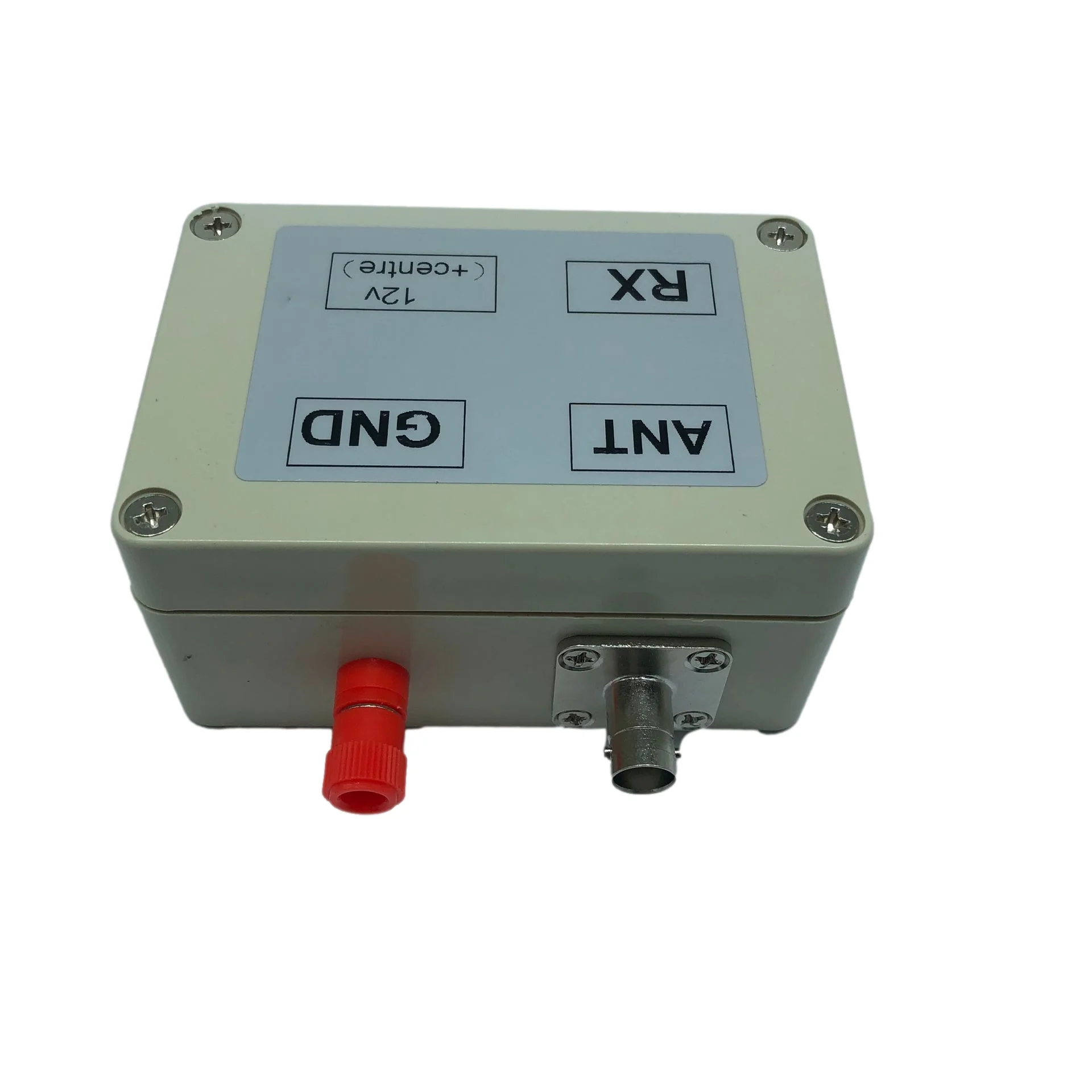

– Power: 12 – 15 volts at 150 mA
– Second order output intercept point: > + 70 dBm
– Third order output intercept point: > + 30 dBm
– Maximum output power: in excess of – 15 dBm
– PCB Size: Length (mm): 155 x 27
– Connector: BNC
– Feed line: 50 – 100 ohm coaxial cable up to 100 meter long

Note:

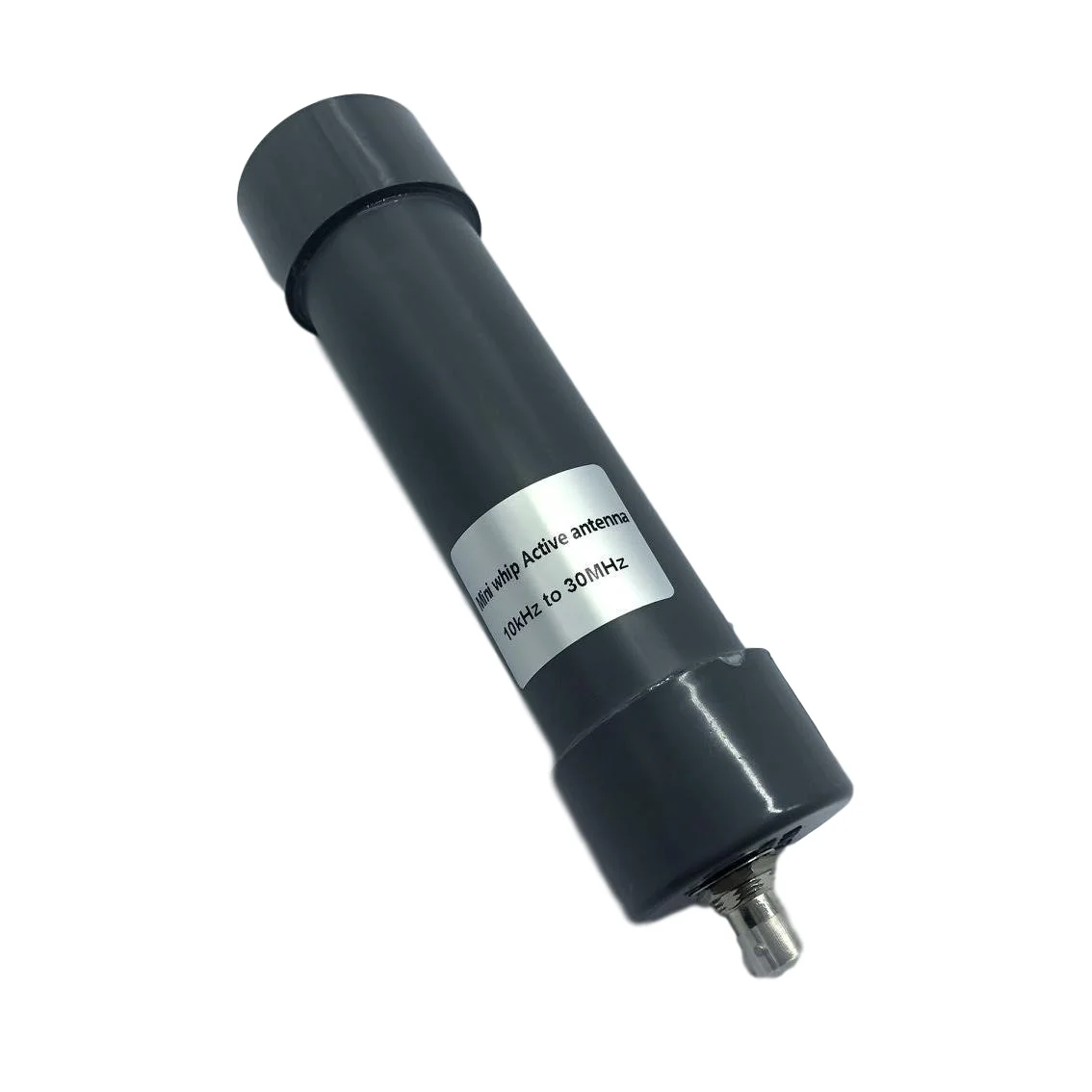

Each antenna performs as good as its installation permits it to. Any active antenna is not working good inside a house! It should be mounted OUTSIDE and as high as possible. Place this MiniWhip antenna PCB inside suitable enclosure of your choice and mount outside the house. Probably for the enclosure you can use a piece of the PVC tube which available in various diameters in a local store. Do not use metal enclosure! It won’t work there!

For Max. Sensitivity:
– This antenna should be positioned as high and free from metal conductors as possible.
– The ground plane of the PCB must NOT be lower than the top of the mast.
(the connection to and the antenna surface itself must be ABOVE the top of the mast).

For Best Signal-to-noise Ratio:
– Install the Miniwhip onto a well grounded mast.
– Connect “GND” of the Miniwhip PCB to that mast.
– Place HI-Ui ferrite cores (Ui between 5000 and 10.000) on the beginning and end of all cables to block cable noise currents.

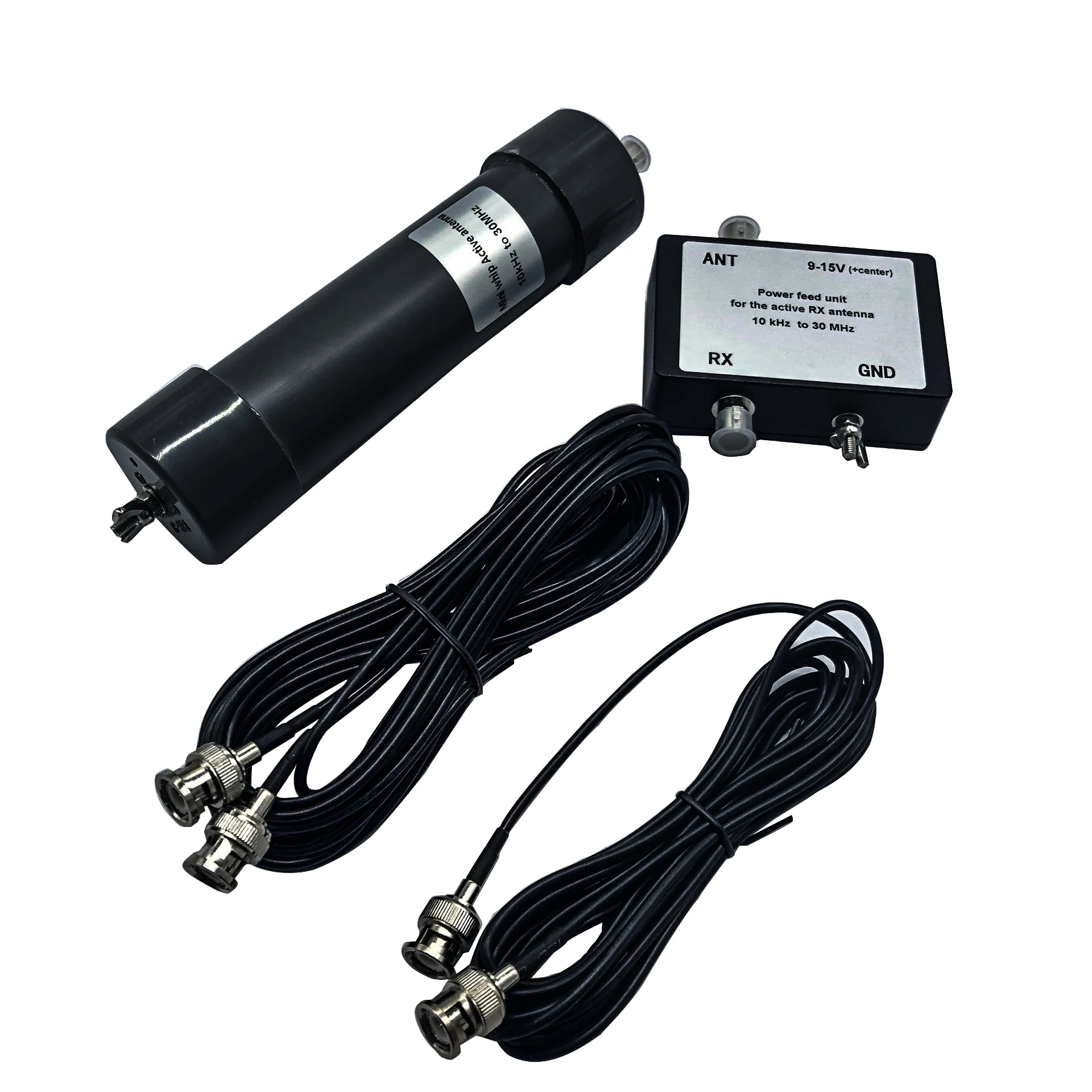

Package Included:
