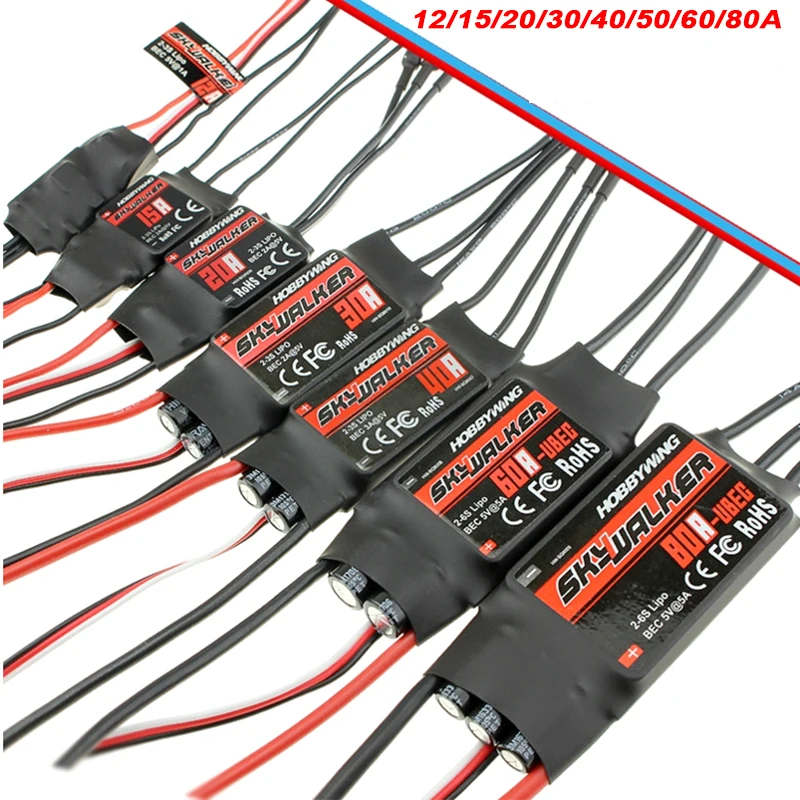

Hobbywing Skywalker 12A 15A 20A 30A 40A 50A 60A 80A ESC Speed Controler With UBEC For RC FPV Quadcopter RC Airplanes Drone

Item: Hobbywing Skywalker 12A 15A 20A 30A 40A 50A 60A 80A ESC Speed Controler
Parameters:

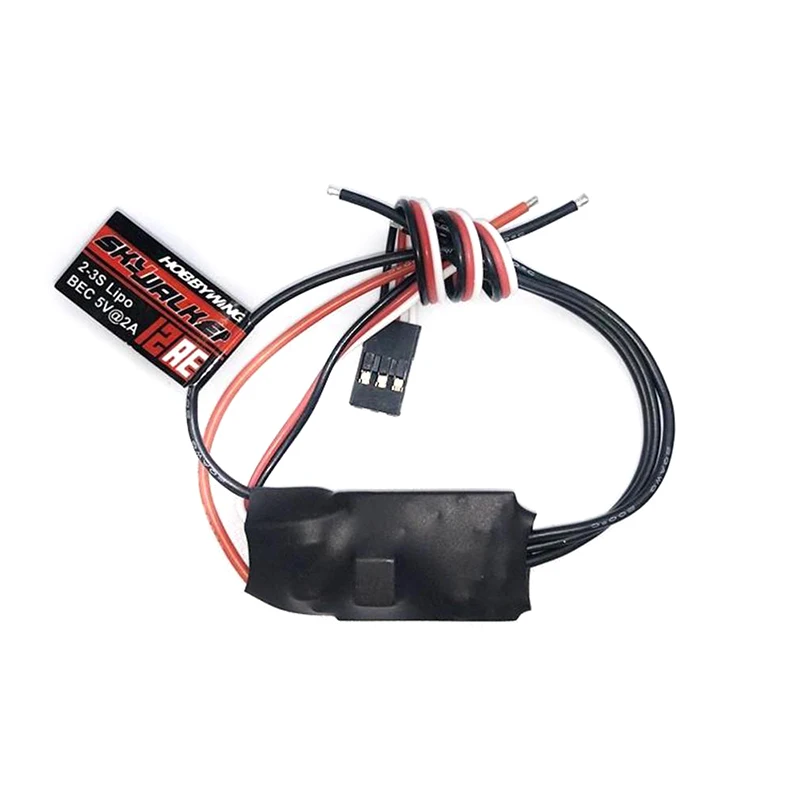

12A:
Continuous current 12A, short-time current 15A (less than 10 seconds)
BEC Output: 5V @ 1A (linear regulator mode -linear mode)
Throttle signal frequency range (Refresh rate): 50Hz-432Hz
Weight: 9g

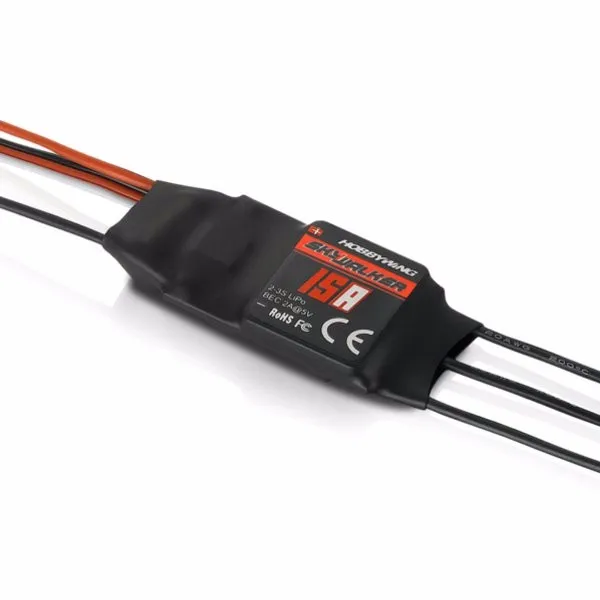

15A:
Constant current: 15A, Peak current (10s): 20A
BEC: 5V 2A
Lipo: 2-3S
Net Weight: 14g

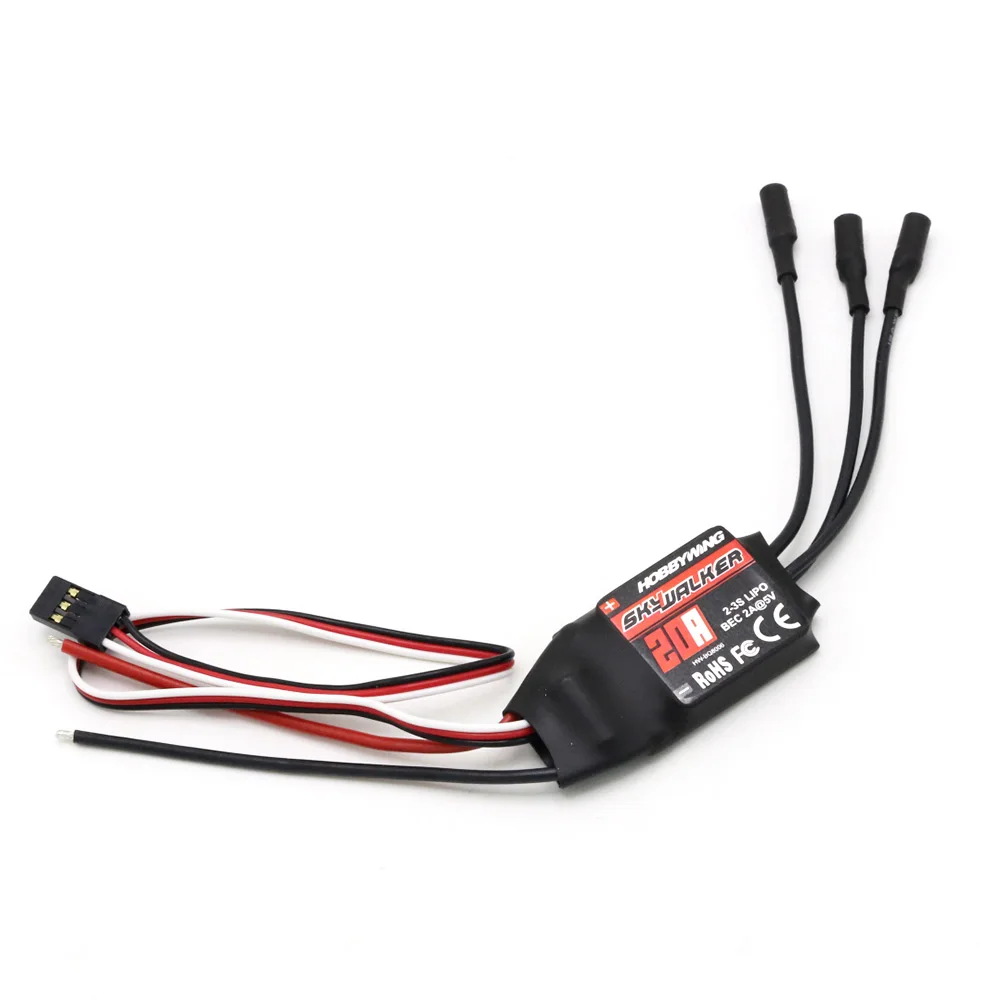

20A:
Continuous Current: 20A, Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g

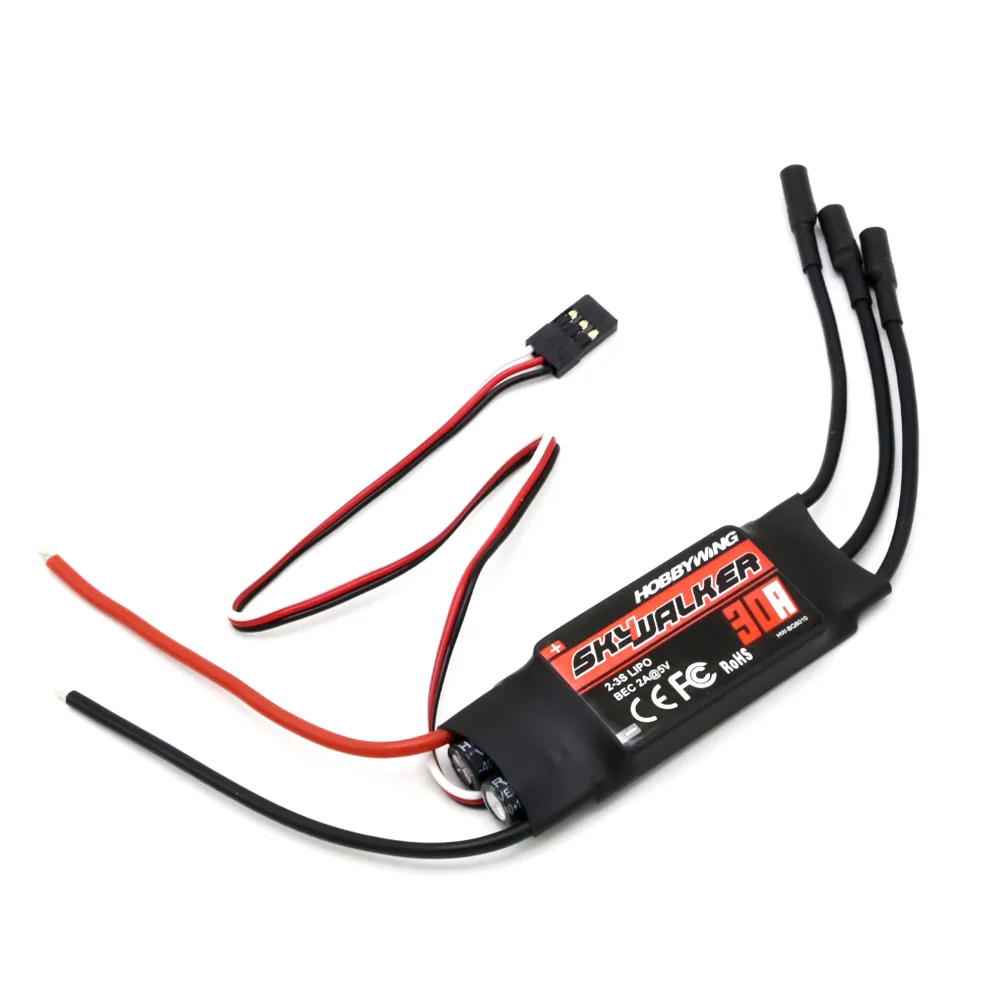

30A:
Constant Current: 30A, Peak Current:40A(10s)
Voltage: 2-3S lixx
BEC: Yes
BEC Output: 5V/2A
Net Weight:38g

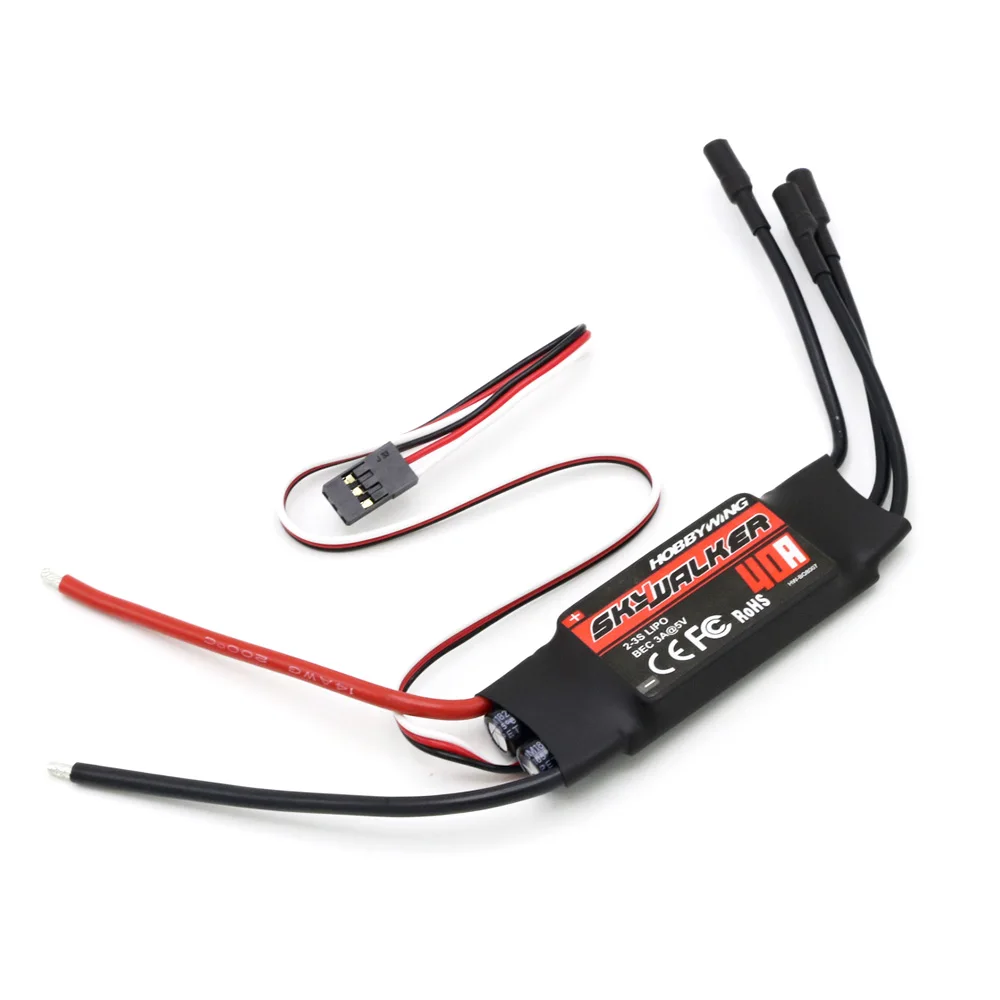

40A:
Continuous Current: 40A, Burst Current (>10s): 55A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Net Weight: 35g
50A:
Continuous output: 50A, Burst current: 60A@10S
Power input: 2-4S Lixx/5-12S Nixx
5V/3A BEC output, switch mode
Refresh rate: 50Hz-432Hz
Weight: 43g
60A:
Constant Current: 60A, Burst Current (>10s): 80A
BEC Mode: switch mode
BEC Output: 5V at 3A
Refresh Rate: 50Hz-432Hz
Weight: 63g

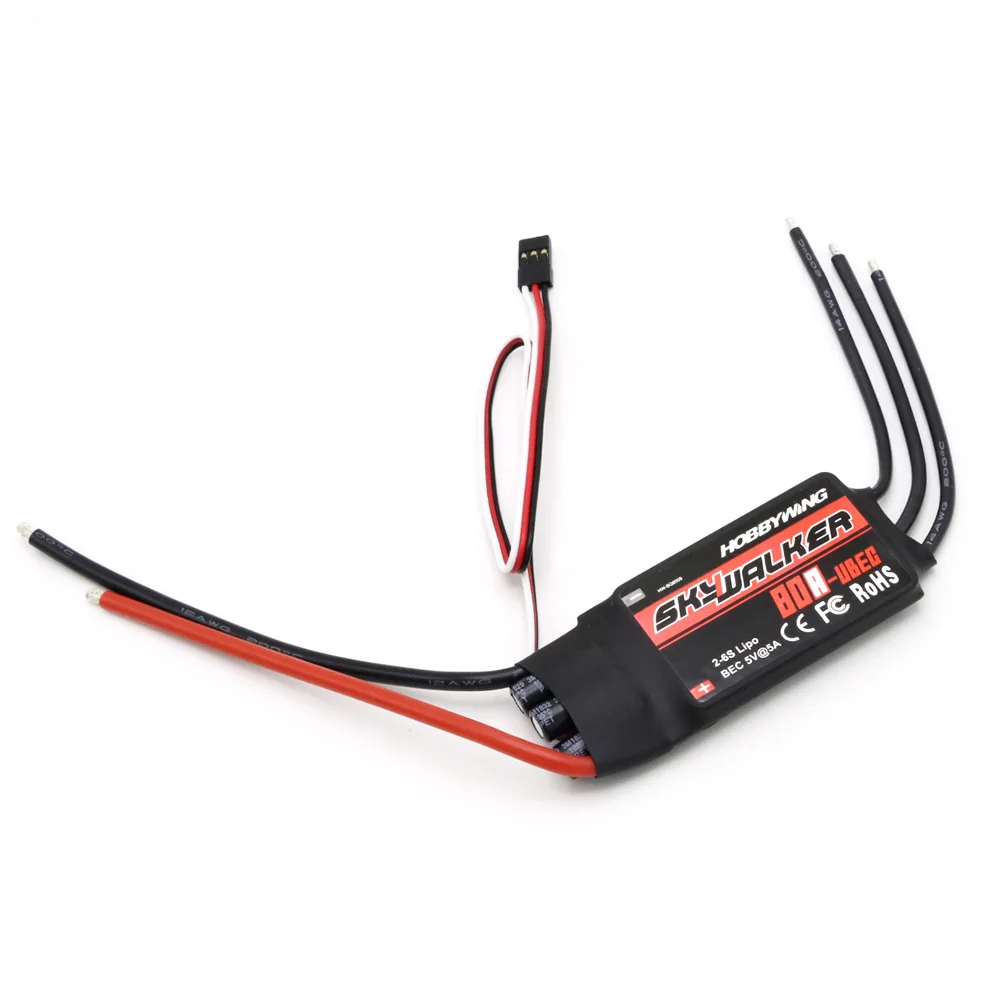

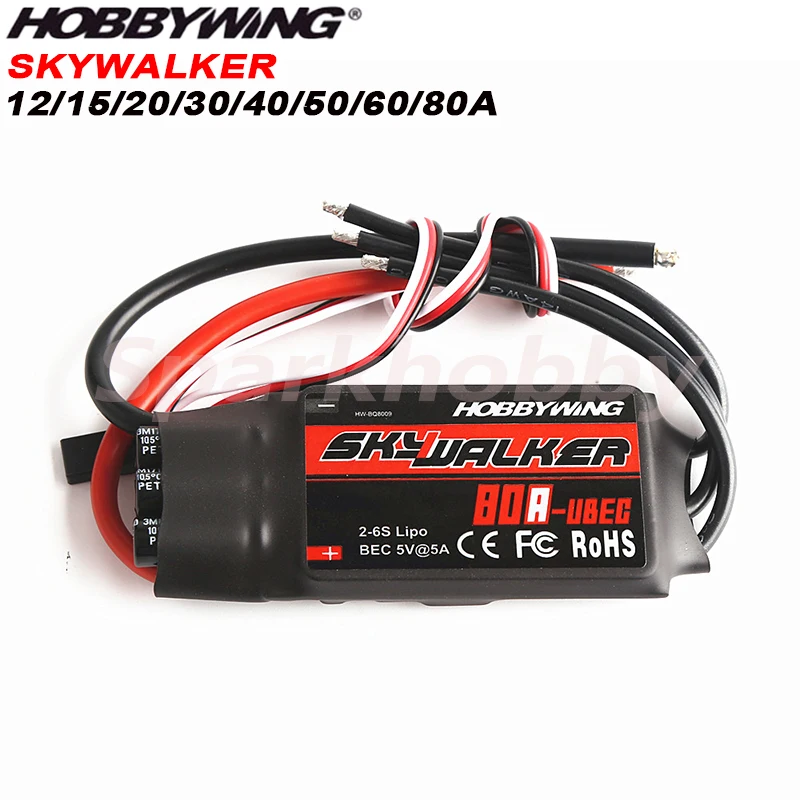

80A:
Cont./Peak Current: 80A/100A
Input: 2-6S LiPo,5-18s Ni-MH
BEC Output: Switch Mode–5V,5A
Input Connectors: NO
Output Connectors: NO
Weight: 82g

• Package Included:
• Hobbywing SKYWALKER 12A/15A/20A/30A/40A/50A/60A/80A ESC x1

•
