Voltage |
Rotating speed |
Locked-rotor |
Stall torque |
|
DC/V |
RPM/min |
MAM |
kg/cm |
|
3 |
30rpm |
≤0.8 |
≥1.8 |
|
3 |
50rpm |
≤0.98 |
≥2.2 |
|
3 |
60rpm |
≤1.39 |
≥2.5 |
|
6 |
30rpm |
≤0.2 |
≥1.4 |
|
6 |
50rpm |
≤0.5 |
≥2.3 |
|
6 |
60rpm |
≤0.68 |
≥2.7 |
|
12 |
50rpm |
≤0.19 |
≥1.7 |
|
12 |
60rpm |
≤0.34 |
≥2.5 |
|
3 |
100rpm |
≤0.98 |
≥1.1 |
|
3 |
200rpm |
≤1.1 |
≥1.2 |
|
3 |
300rpm |
0.98 |
≥0.5 |
|
3 |
500rpm |
≤0.98 |
≥0.3 |
|
3 |
1000rpm |
≤0.98 |
≥0.16 |
|
6 |
100rpm |
≤0.5 |
≥1.1 |
|
6 |
200rpm |
≤0.79 |
≥1.2 |
|
6 |
300rpm |
≤0.5 |
≥0.5 |
|
6 |
500rpm |
≤0.5 |
≥0.3 |
|
6 |
1000rpm |
≤0.5 |
≥0.16 |
|
12 |
100rpm |
≤0.19 |
≥1.0 |
|
12 |
200rpm |
≤0.37 |
≥1.1 |
|
12 |
300rpm |
≤0.19 |
≥0.42 |
|
12 |
500rpm |
≤0.19 |
≥0.26 |
|
12 |
1000rpm |
≤0.19 |
≥0.13 |
|
3 |
15rpm |
≤0.98 |
≥5.8 |
|
6 |
15rpm |
≤0.5 |
≥5.8 |
|
12 |
15rpm |
≤0.19 |
≥5.0 |
|
12 |
30rpm |
≤0.19 |
≥2.5 |
If you need a large amount of custom RPM or other data, please contact me. Thanks
For product torque and other data sheets, please contact me! Thanks
Voltage: DC 3V/6V/12V
Material: Metal

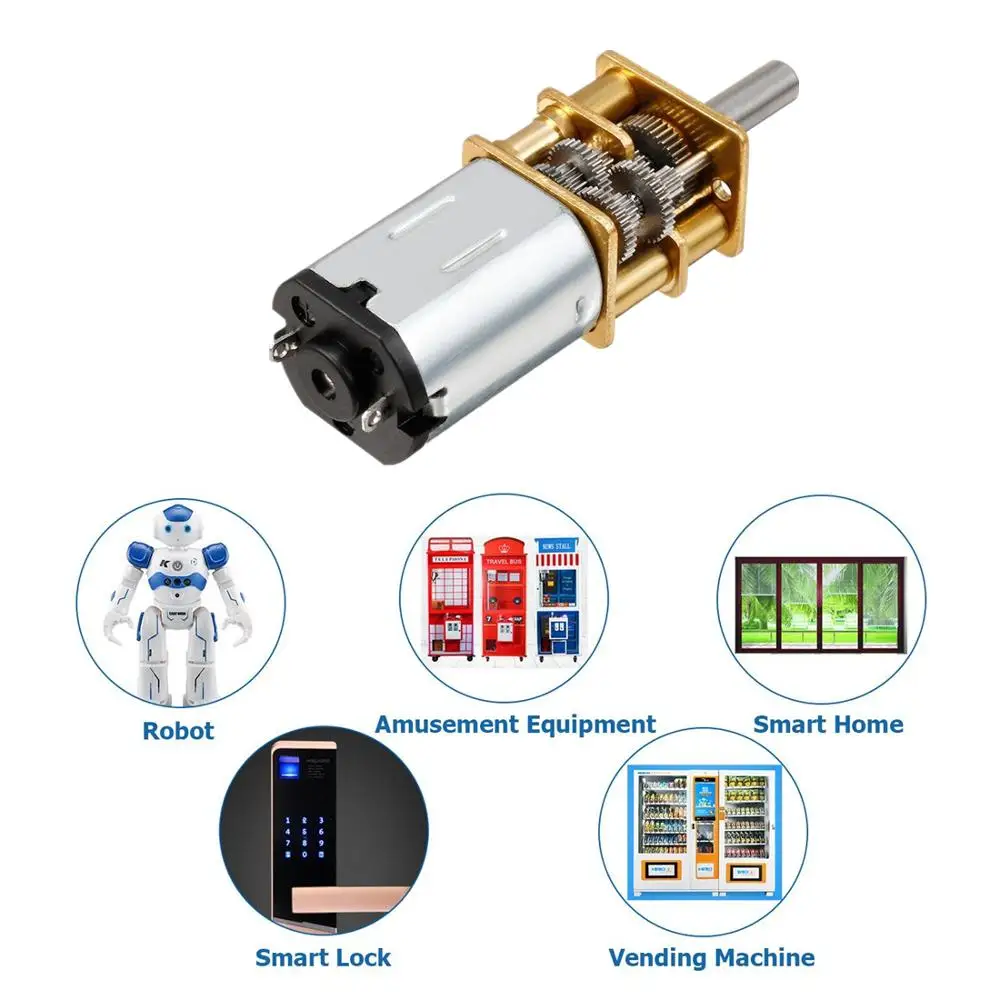

Model: N20
Revolving Speed: 15/30/50/60/100/200/300/500/1000RPM

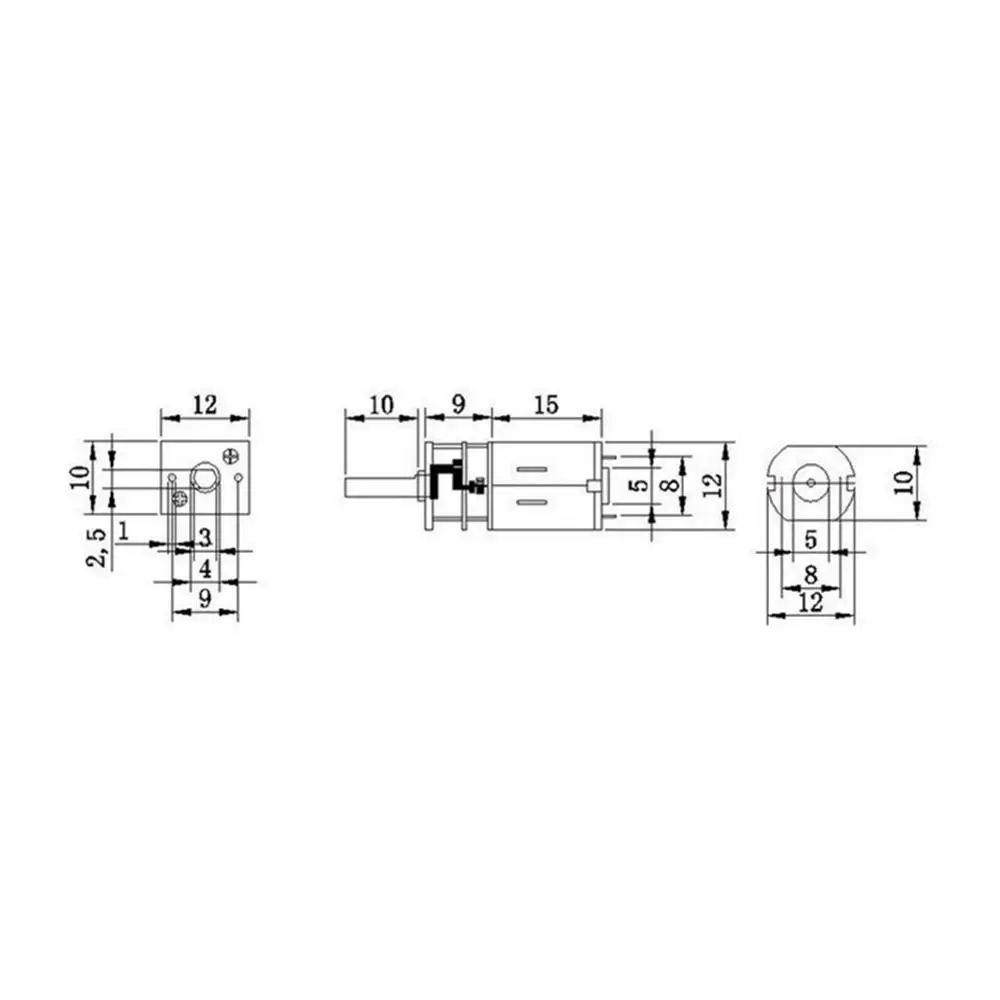

Total Length: 36mm
Motor Size: 12mm(diameter)*26mm(height)
Shaft Size: 3mm(diameter)*10mm(length)
