Model:1S12
-
Key Feature:
-
☑Type & Details: BNC Male to BNC Female right angle connector; Color: gold and silver; Material: brass & nickel plated; Helping you to connect BNC devices.
-
☑Durability & Performance: The connector is made of brass & nickel plated to ensure it's durability and recycling usage. High quality adapter ensure no lost in signal transmission and good conductivity.
-
☑Application for RF, Microwave Applications, Lighting, Security Cameras, Extension cable, Coaxial cable, CCTV, Wifi Radios, Telecom, Antenna, Digital Communication System, Broadcast, Wireless devices, LMR and so on.
Specifications of BNC Male to BNC Female 90 degree connector

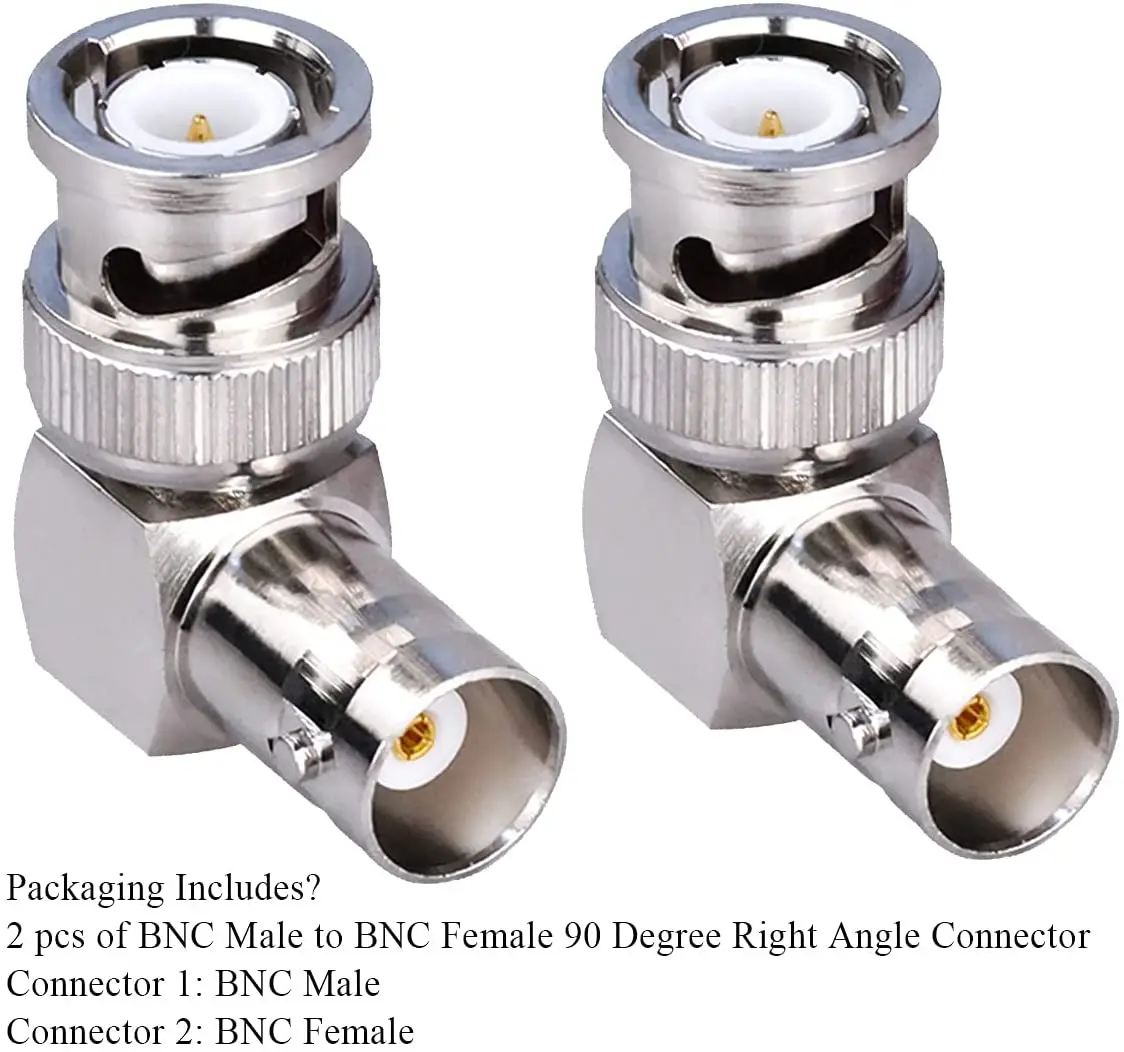

2 pcs of BNC Male to BNC Female 90 degree connector

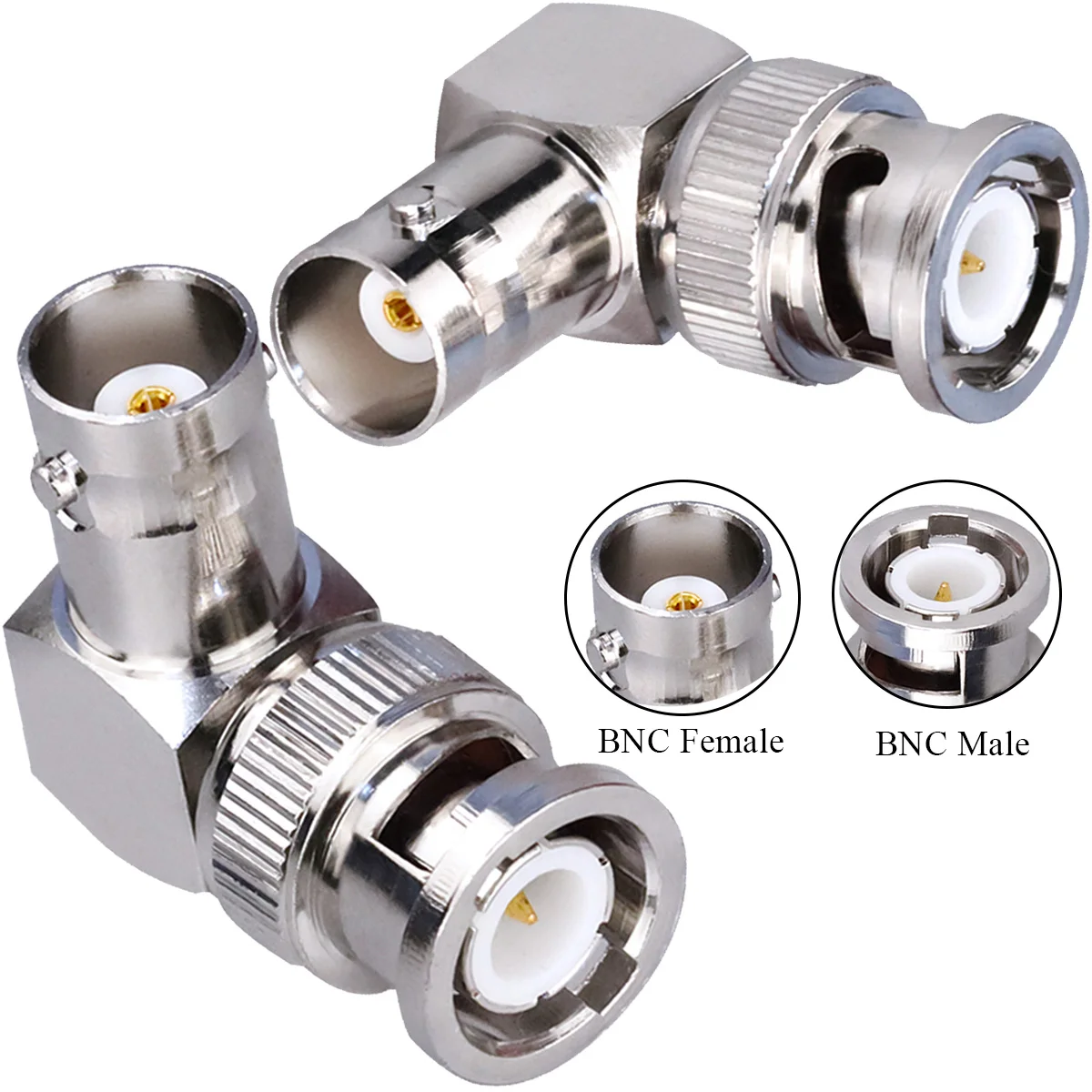

1: BNC Male connector
2: BNC Female connector
Materials: brass & nickel plated
Impedance: 50 ohm, Low-loss
Frequency Range: DC – 11GHz
Working Voltage: 1000V r.m.s at sea level
Withstanding Voltage: 2500V r.m.s at sea level
Insulation resistance: ≥5000MΩ
Center Conductor retention force: ≥0.56N
Durability(mating): ≥500times(cycles)
Insulators: PTFE
VSWR: ≤1.15
Temperature Range: -40~+85°C
Average power: 3KW max
Packaging Includes?
2 pcs of BNC Male to BNC Female 90 degree right angle connector
Attention:
Pls make sure which type of connector you need, in case of your inconvenient by buying the wrong product which is not suitable for your adapter.

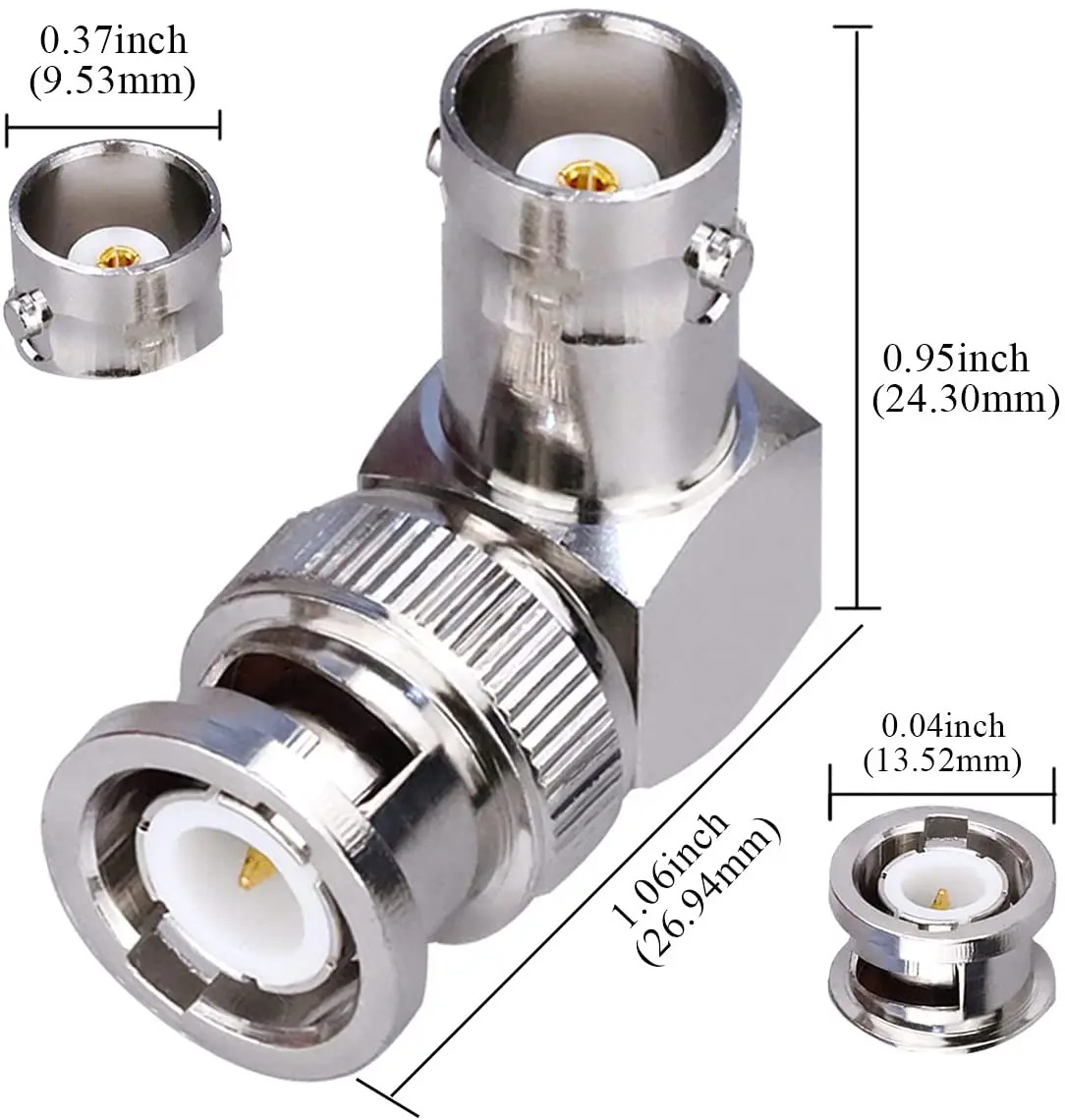

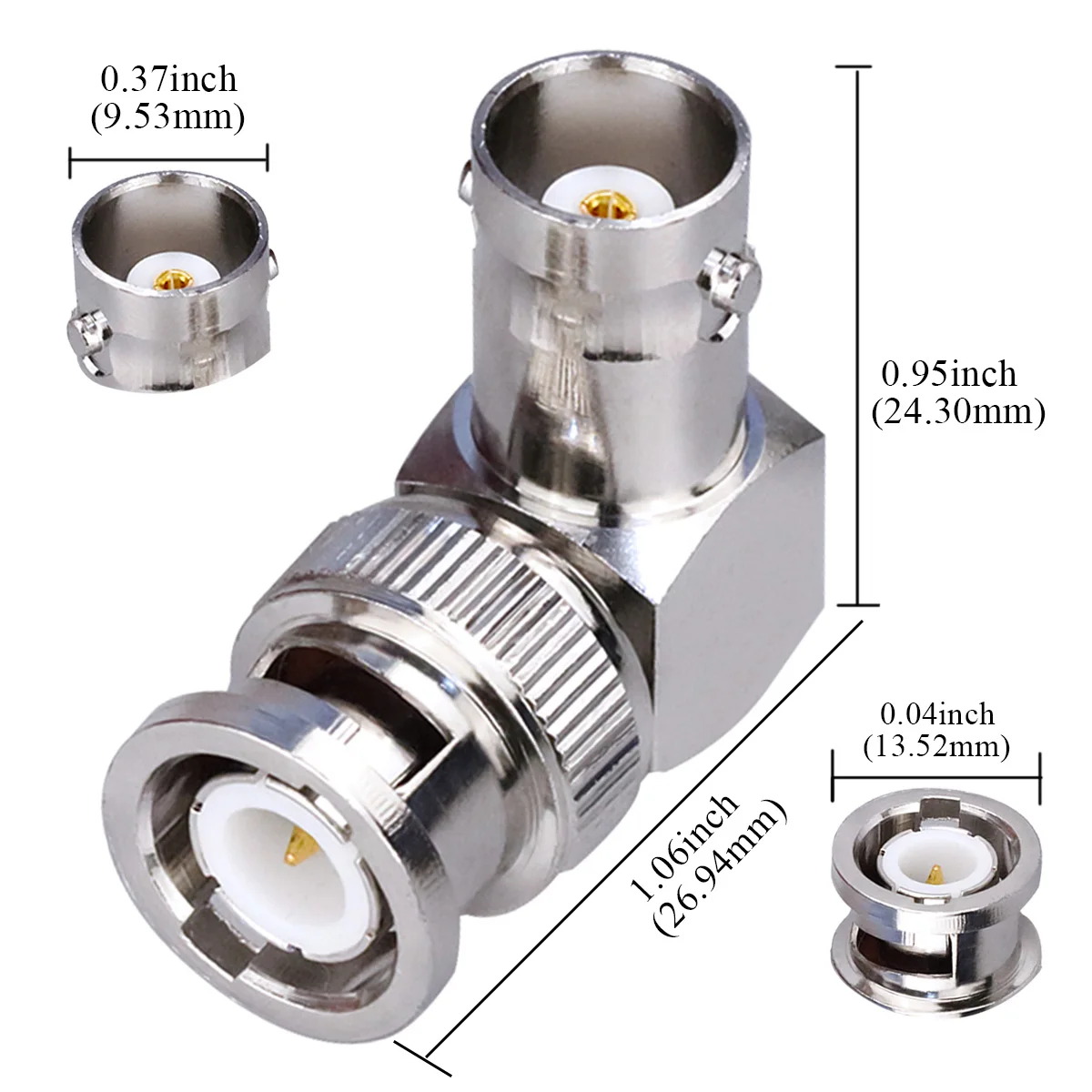

The coax adapters size is manual measurement, 1~2mm error is possible. However all adapter is global universal connector which can match most of the global adapters. Also there may existed some litter difference beeween shape.
