21PIN/21MTC To 8PIN/NEM652 Harness Adaptor with Speaker Wires for Dcc Model Train Railway/LaisDcc Brand 860046

SKU: 860046

860046 21PIN/21MTC To 8PIN/NEM652 Harness adaptor with Speaker Wires for Dcc model train Railway/LaisDcc Brand

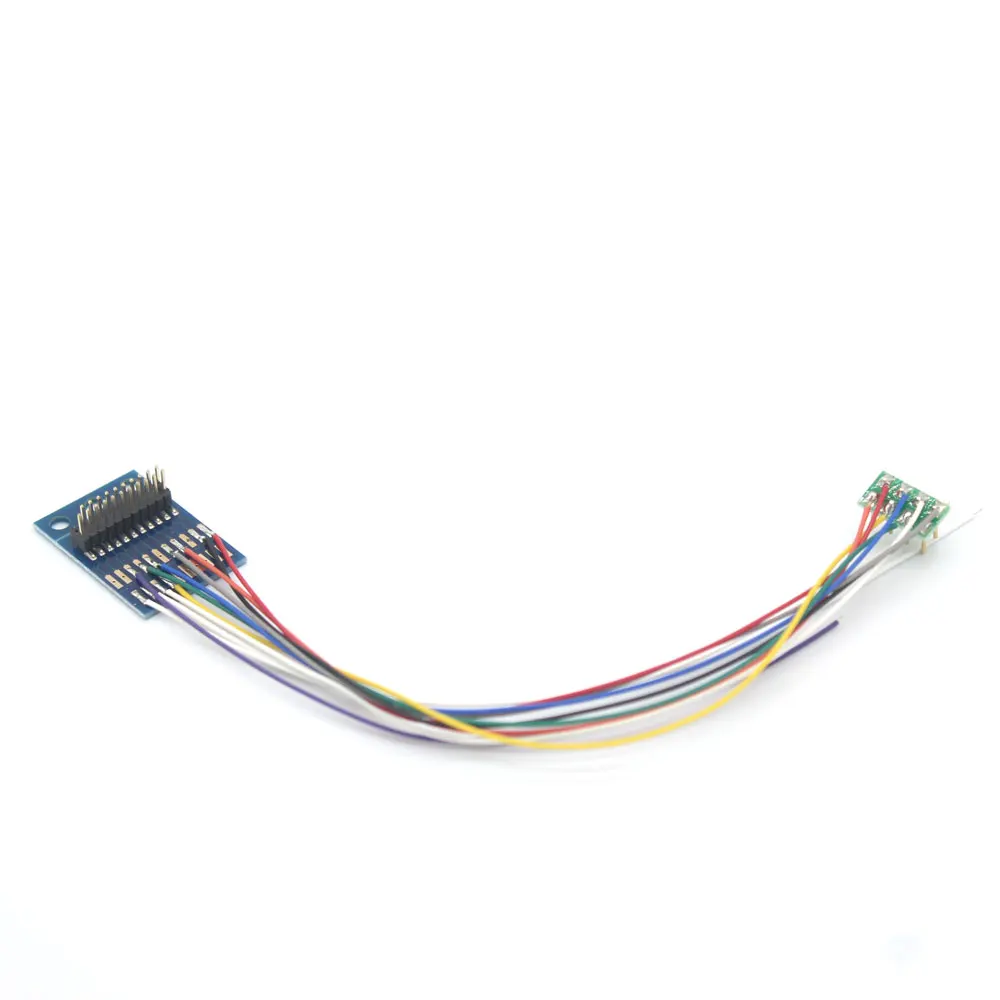

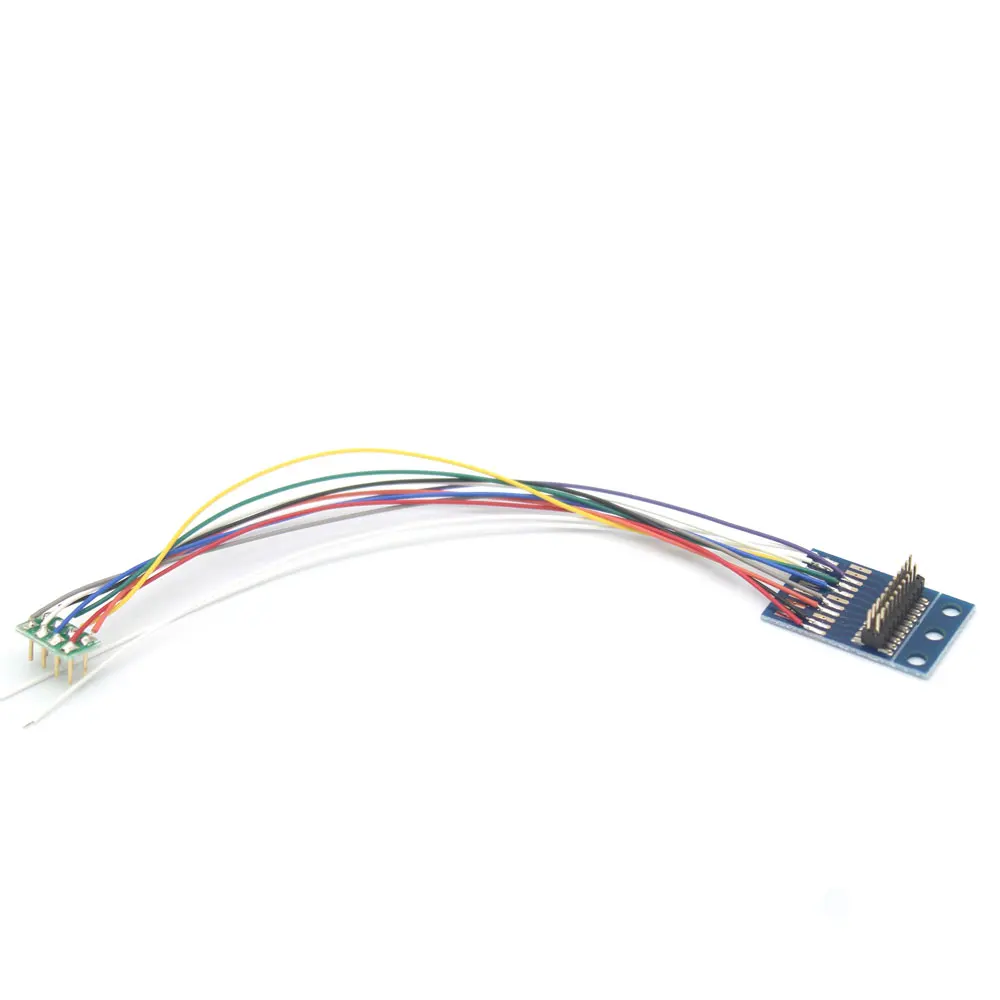

One side is 21MTC adaptor board with 21 Pad

Another side is NEM652 Male Plug

Wires Length: About 100mm-120mm

Function: Use for the customers who want to use a 21MTC sound or Non-sound decoder for a build-in NEM652 8Pin Locomotive

Pin-out & Wiring Diagram

Pin7=Yellow=Rear Lights

Pin8=White=Head lights

Pin9=White=Speaker

Pin10=White=Speaker

Pin14=Voilet=Aux2

Pin15=Green=Aux1

Pin16=Blue=DC+

Pin17=Grey=Motor Left

Pin18=Orange=Motor Right

Pin20=Black=Left Rail

Pin21=Red=Right Rail
