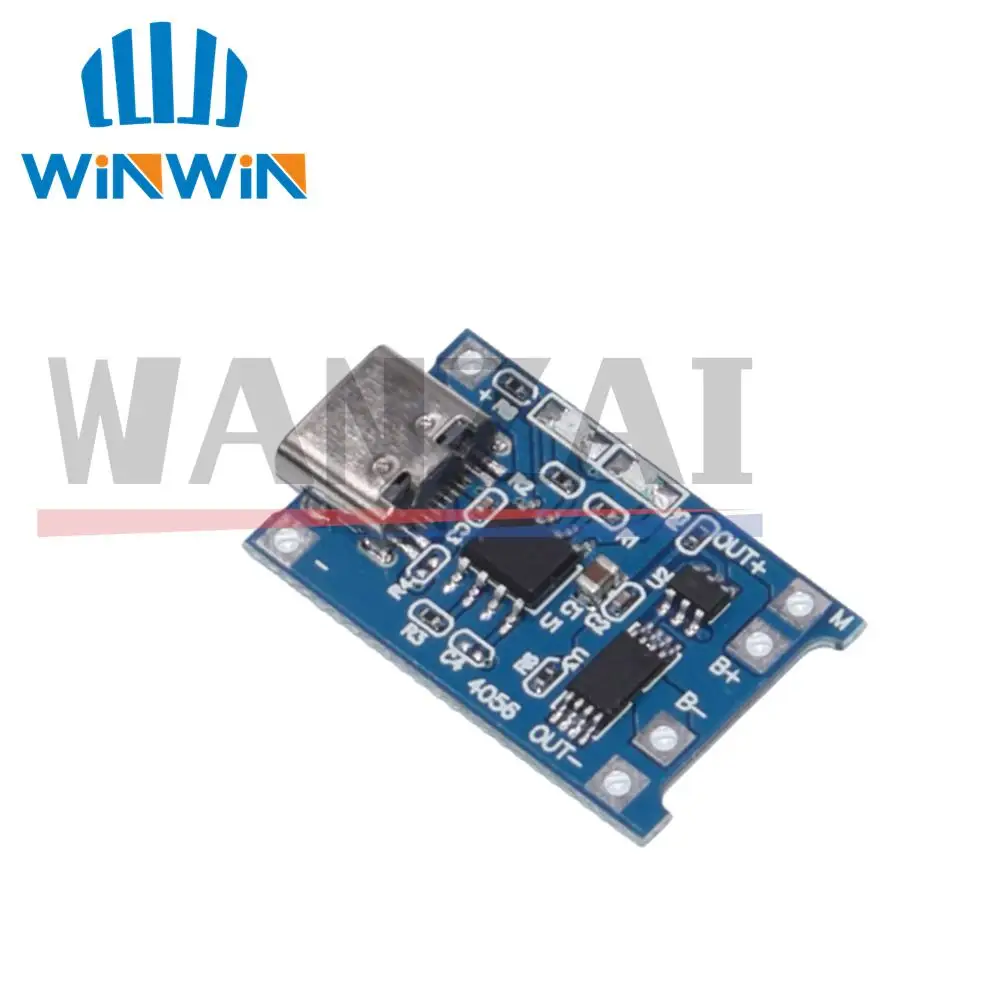

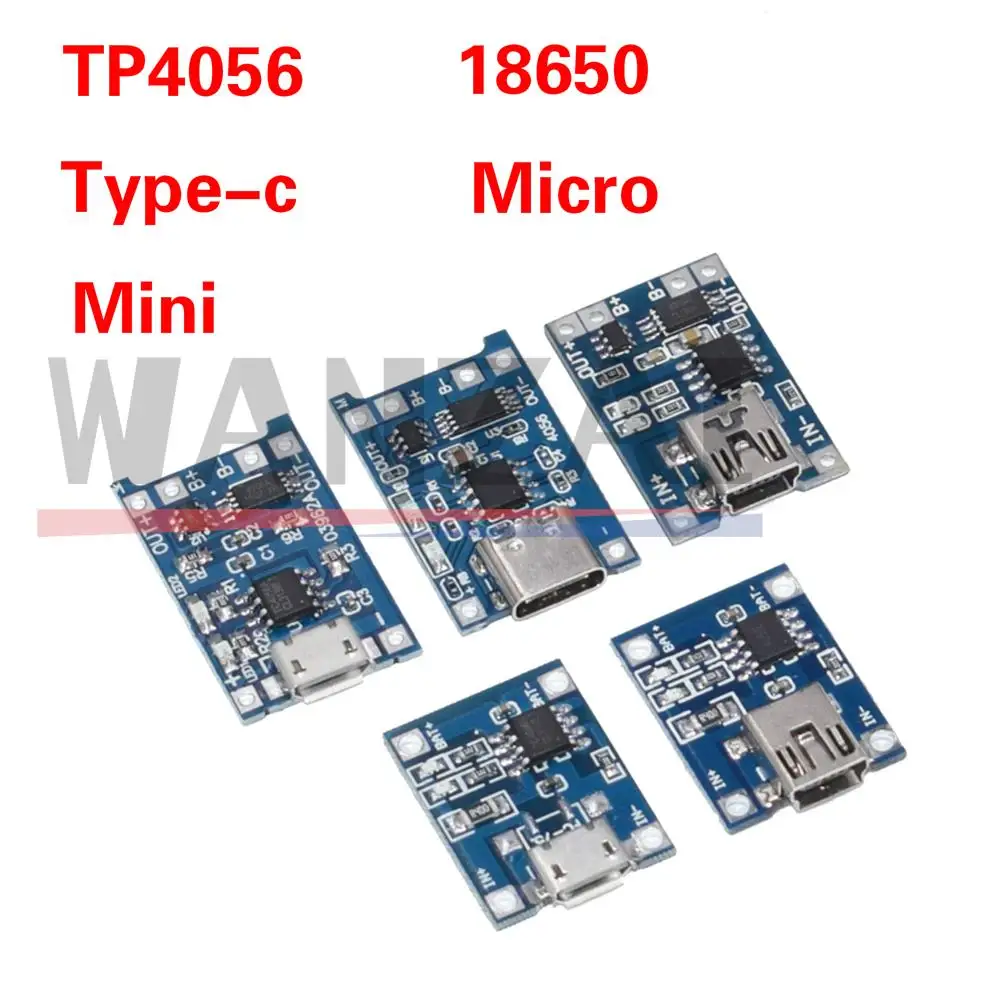

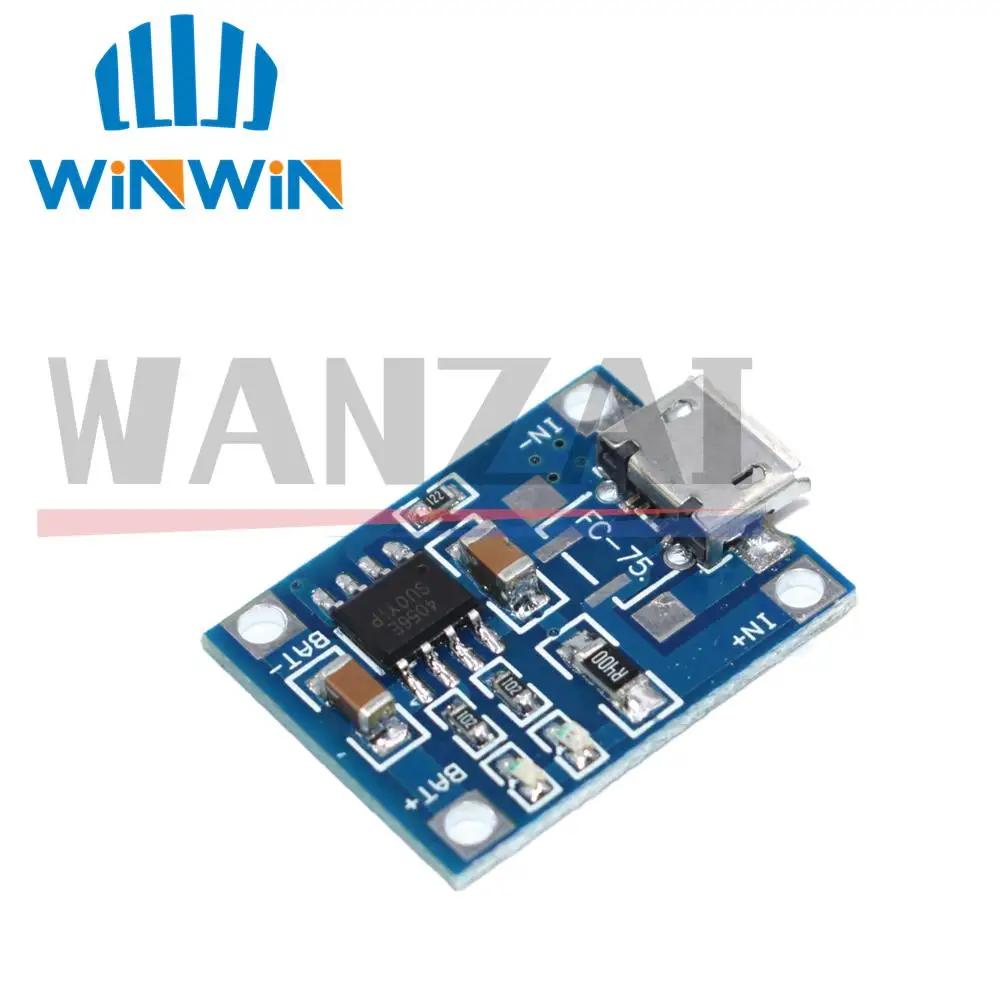

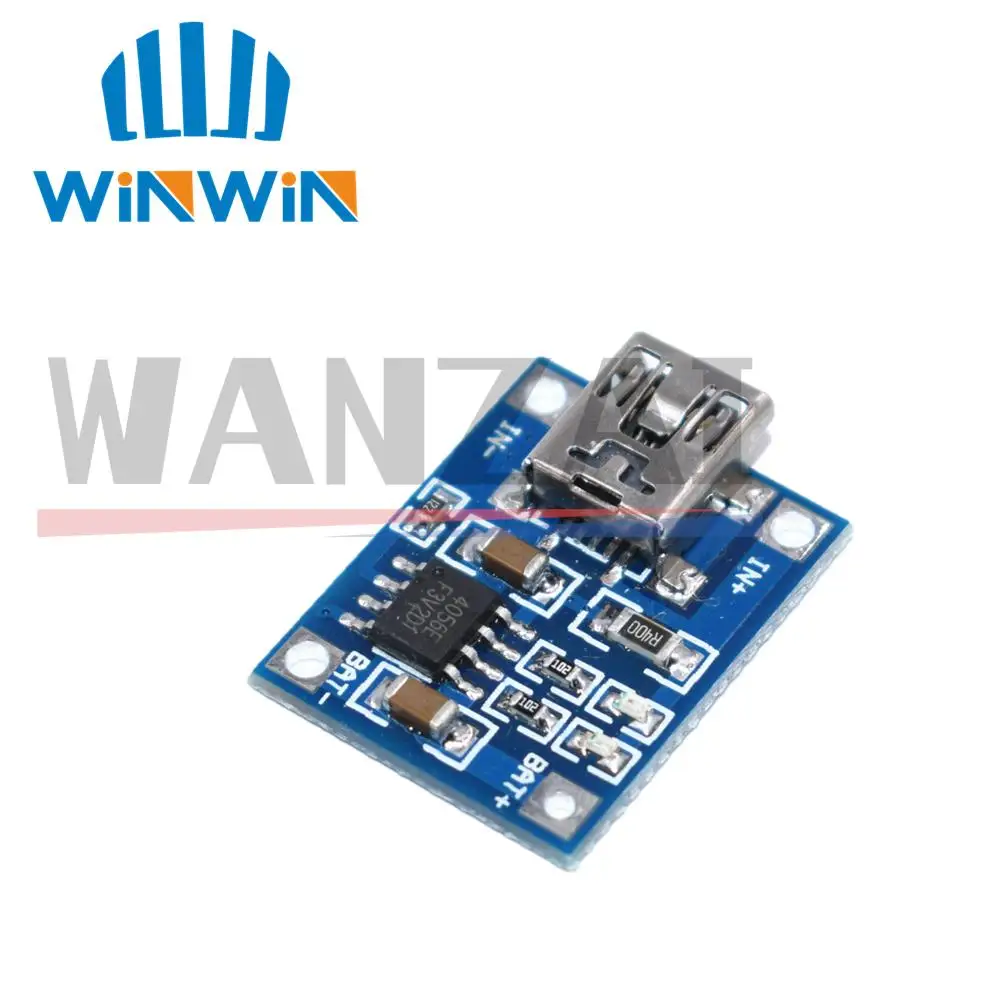

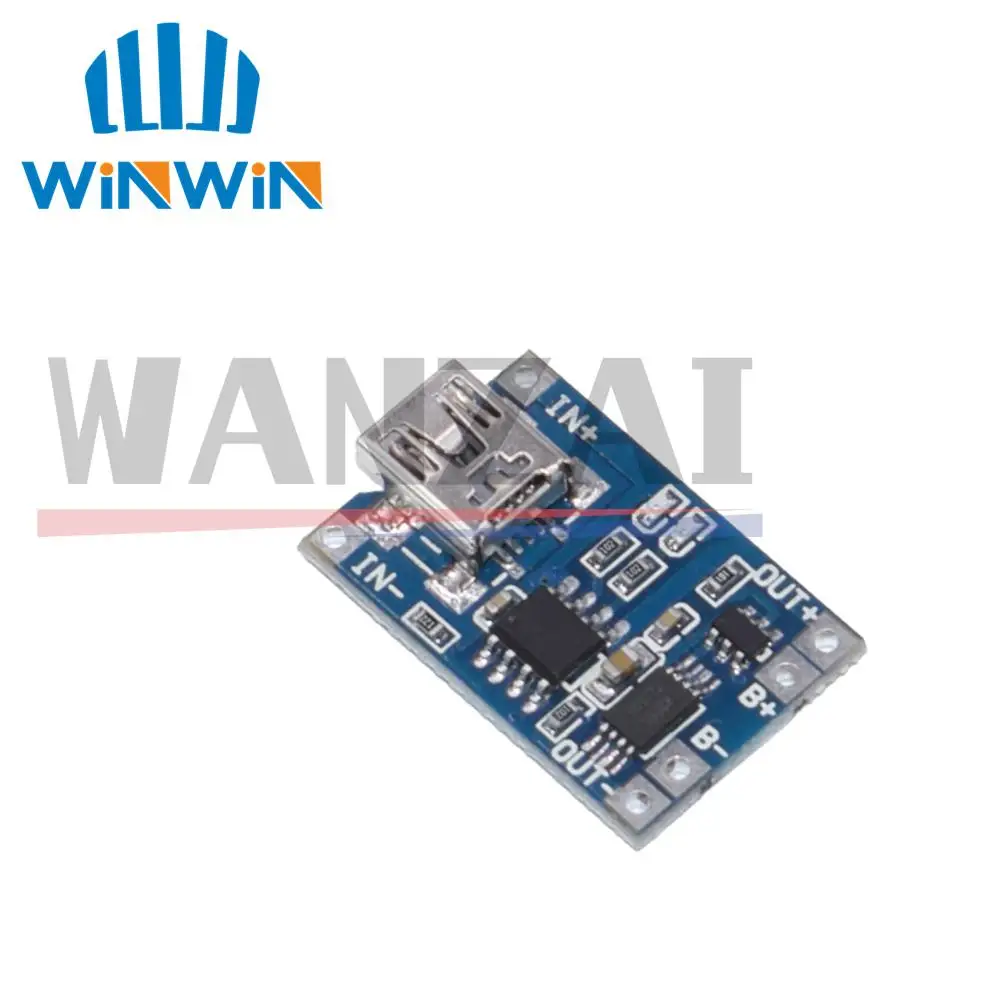

1PCS 5V 1A Micro/Type-c/Mini 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions Li-ion

$14.79
FREE SHIPPING! ⭐⭐⭐⭐⭐

76 (reviews)
🔥11 sold in last 24 hours/Only 1 left in stock
18650 micro18650 mini18650 TYPE-CTP4056 microTP4056 mini
Clear
100% MONEY BACK GUARANTEE!
  • Unique Products Only Found Here!
  • Free Shipping!
  • Lowest Prices!
  • 100% Money Back Guarantee!
  • OVER 1,000 5-STAR REVIEWS

    reviews template

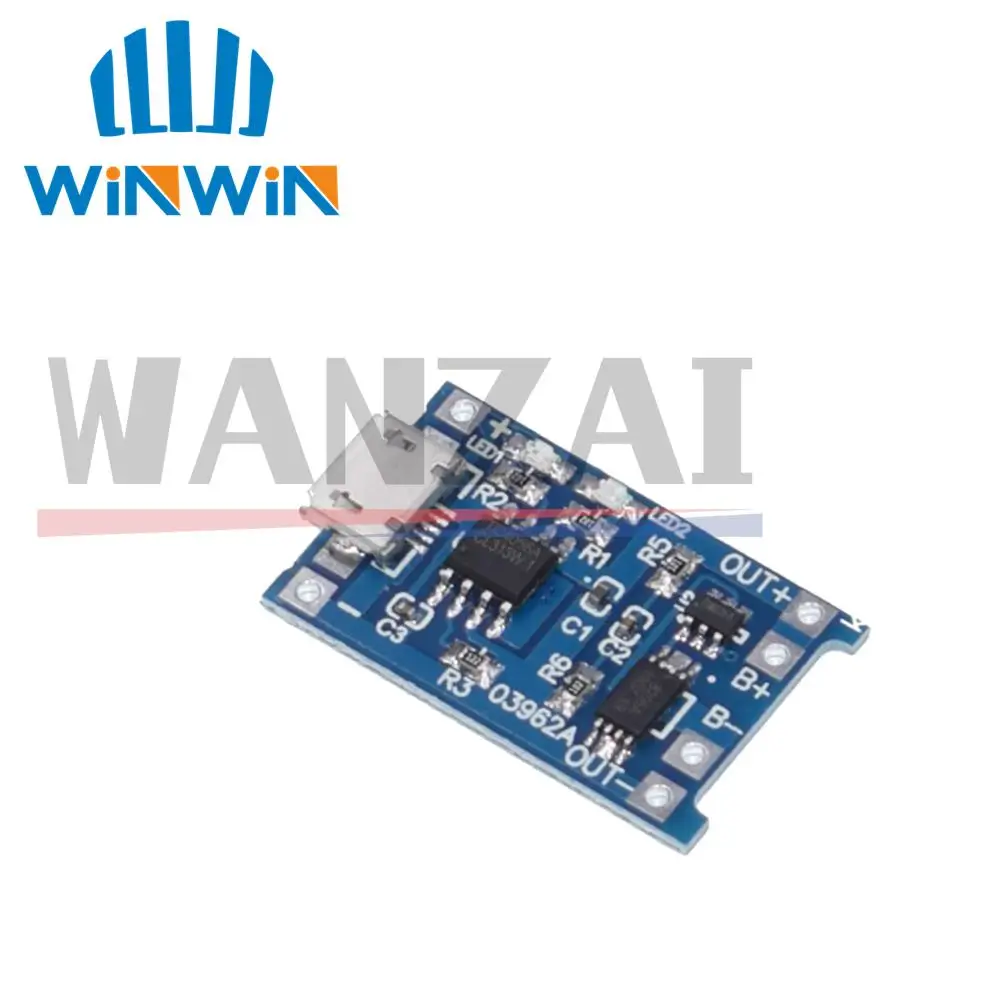

Smart Electronics 5V Micro USB 1A 18650 Lithium Battery Charging Board With Protection Charger Module for Arduino Diy Kit

   The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit.Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge

   + MICRO USB female and next – pads for the power input, access 5V.B + positive then the lithium battery, B- then negative lithium batteries.OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.
   Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.

The charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly.

The charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly.

Disclaimer:
  • Inputs with MICRO USB female, can be directly input to do with the phone charger rechargeable lithium battery,

  • And still retains the input voltage wiring pads, can be very convenient DIY

  • Input voltage: 5V

  • Charging cut-off voltage: 4.2V ± 1%

  • Maximum charge current: 1000mA

  • Battery over-discharge protection voltage: 2.5V

  • Battery overcurrent protection current: 3A

  • Board size: 2.6 * 1.7CM

Additional information

Package

SMD

is_customized

Yes

Model Number

18650 Lithium Battery Charging Board

Operating Temperature

-40 -85

Dissipation Power

1A

Supply Voltage

5V

Application

Alarm

Condition

New

Type

Voltage Regulator

Brand Name

Bolantedz

Origin

Mainland China

Maximum charging current

1000mA

The battery discharge voltage protection

2.5V

Battery over-current protection current

3A
