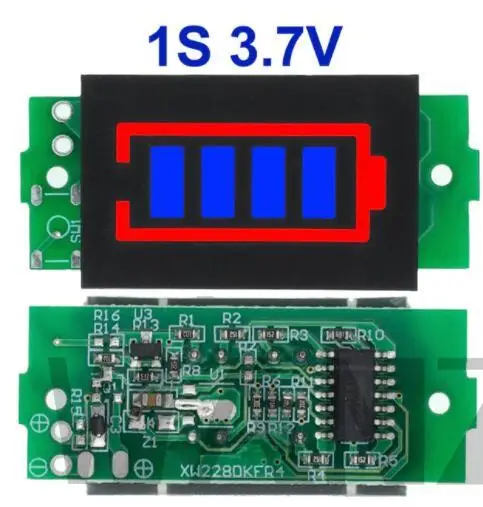

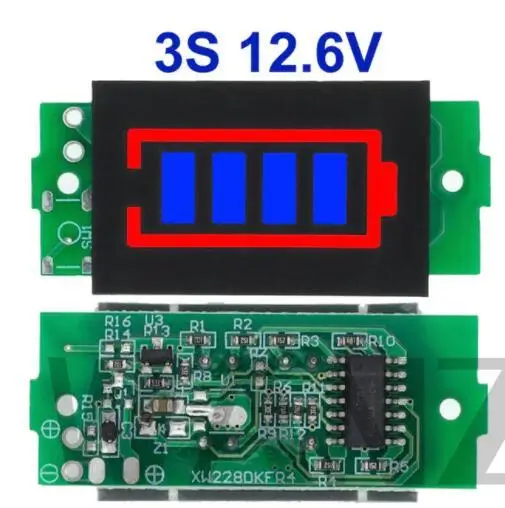

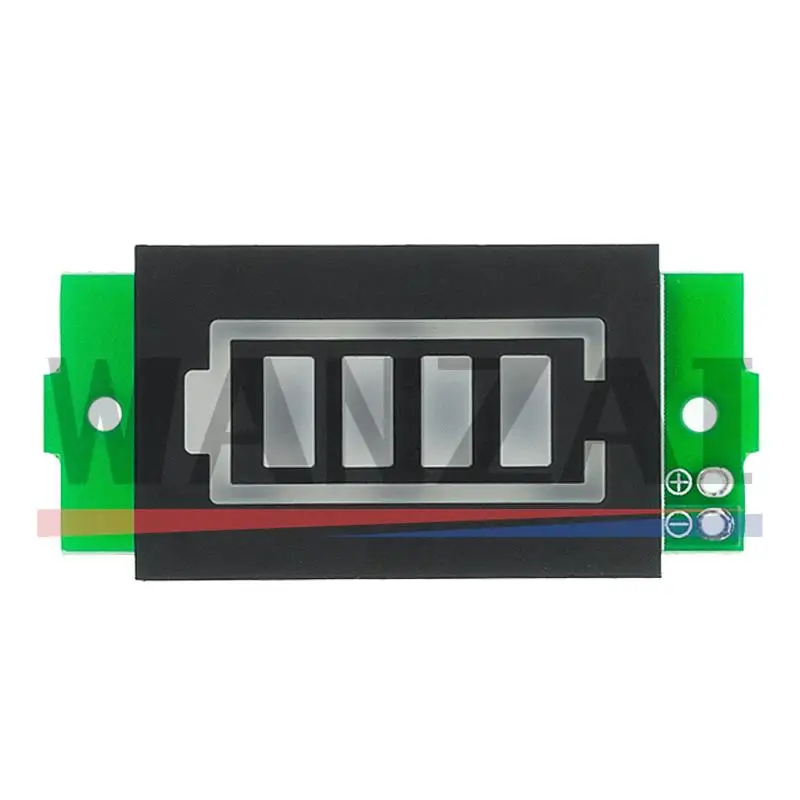

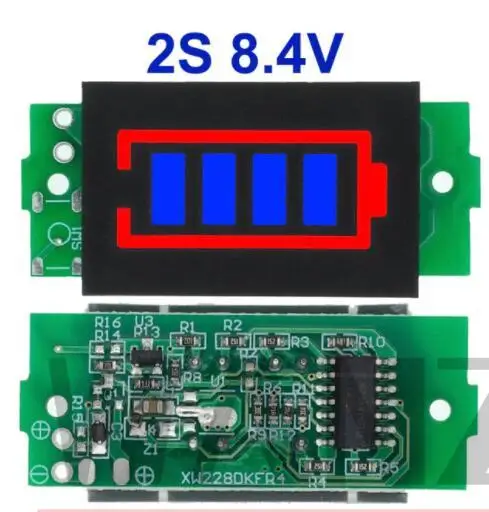

Features:
1.Battery type electricity quantity display 2.Wide application fields:lithium battery 3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity 4.Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on) Display Electricity Quantity Parameter: 1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity) 2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity 3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity 4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity 5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery
Features:

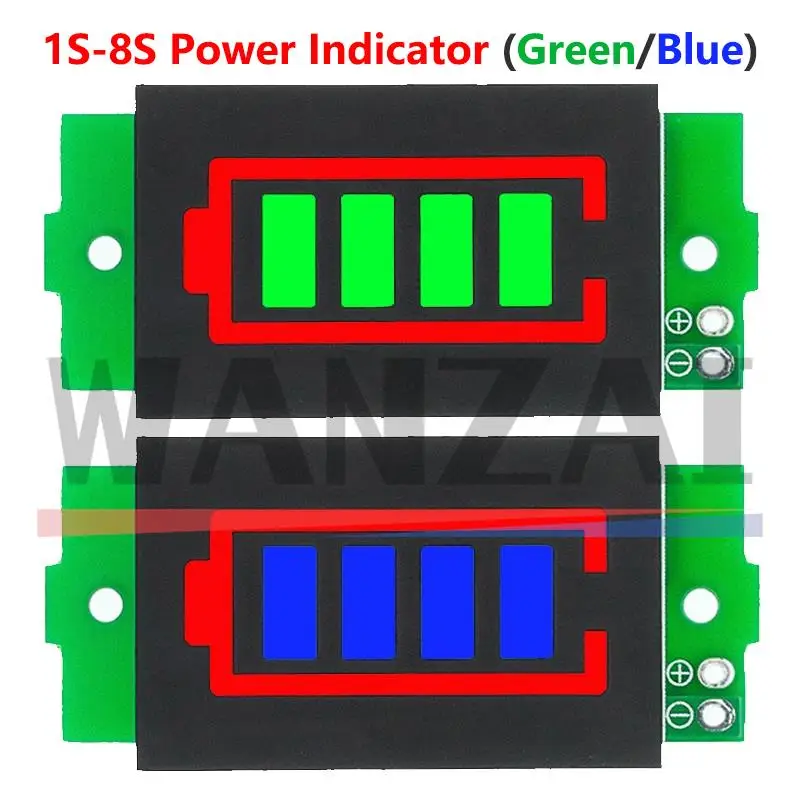

1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive
and negative port,digital tube will display real-time battery electricity quantity
4.Digital Color:outline red,display block blue (when battery electricity quantity is full,
it will be all on)

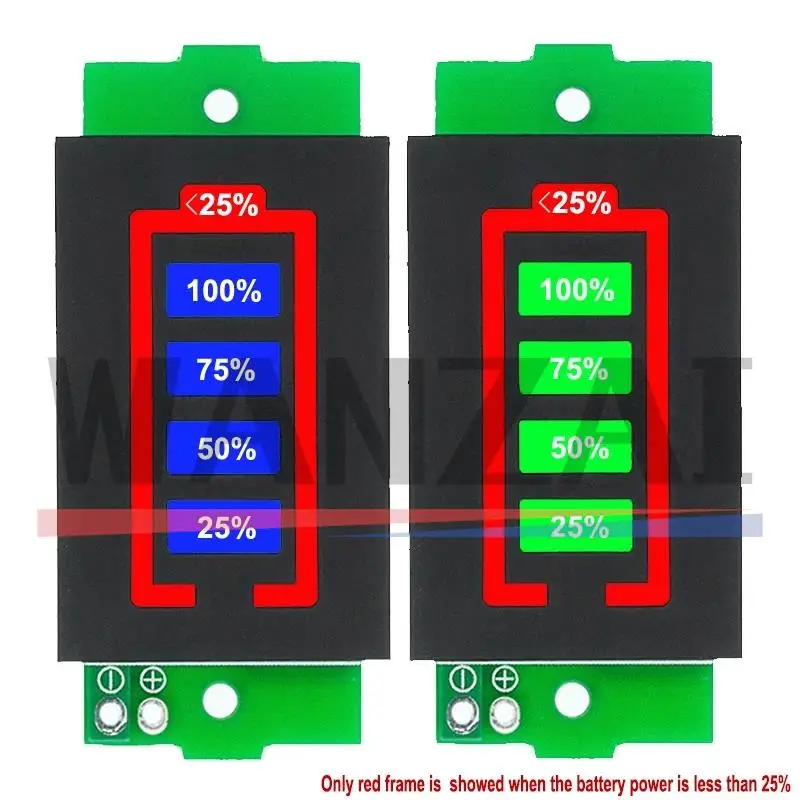

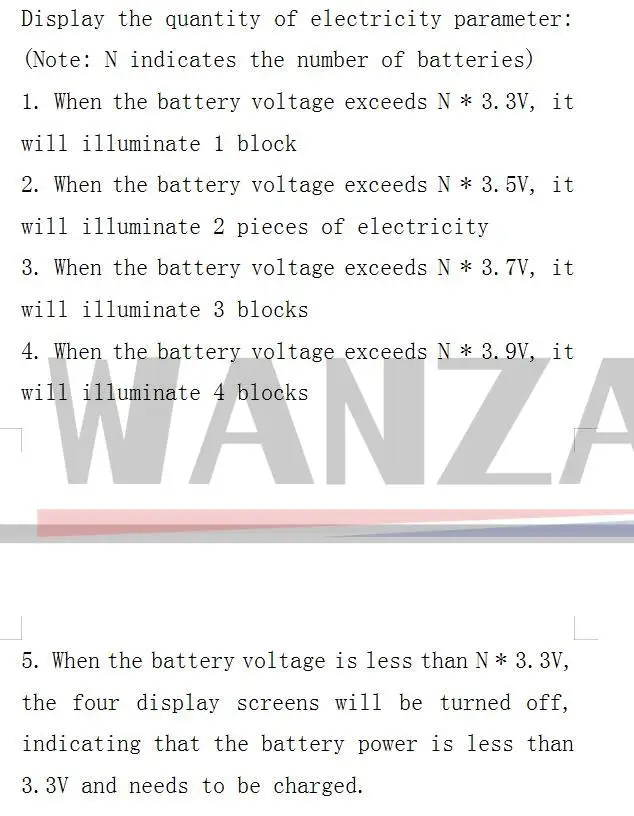

Display Electricity Quantity Parameter:
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
(note:N represents battery quantity)
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery
is less than 3.3V,and you can charge the battery

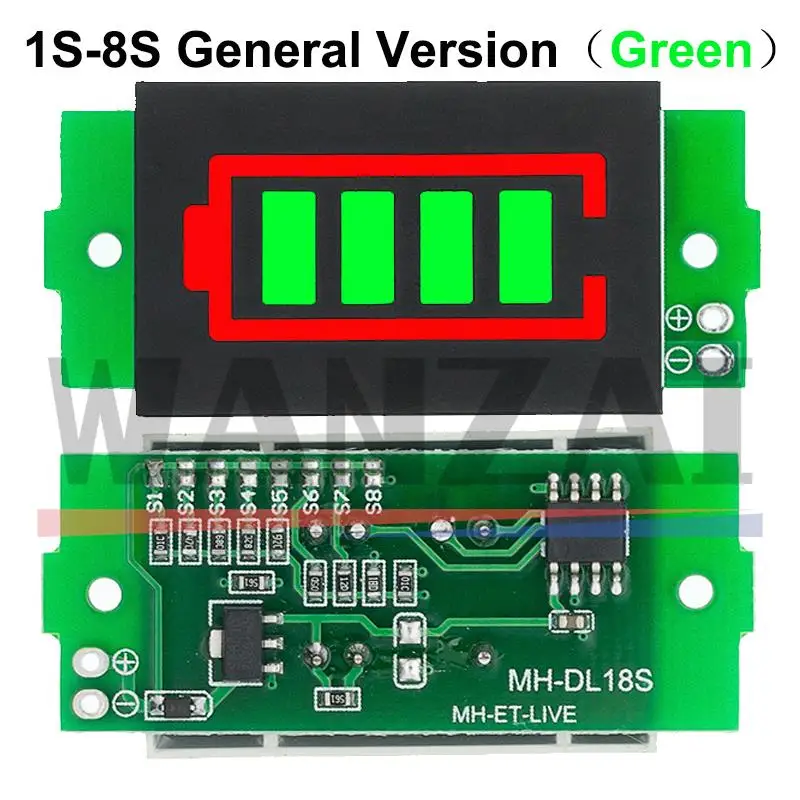

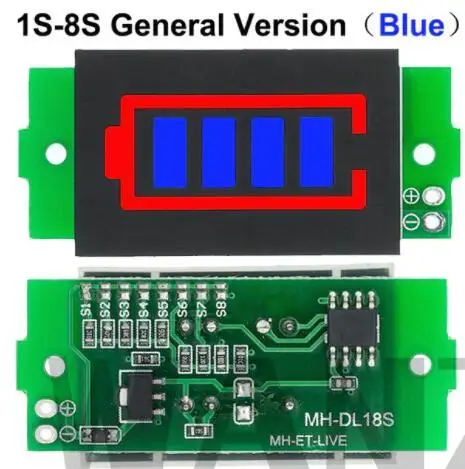

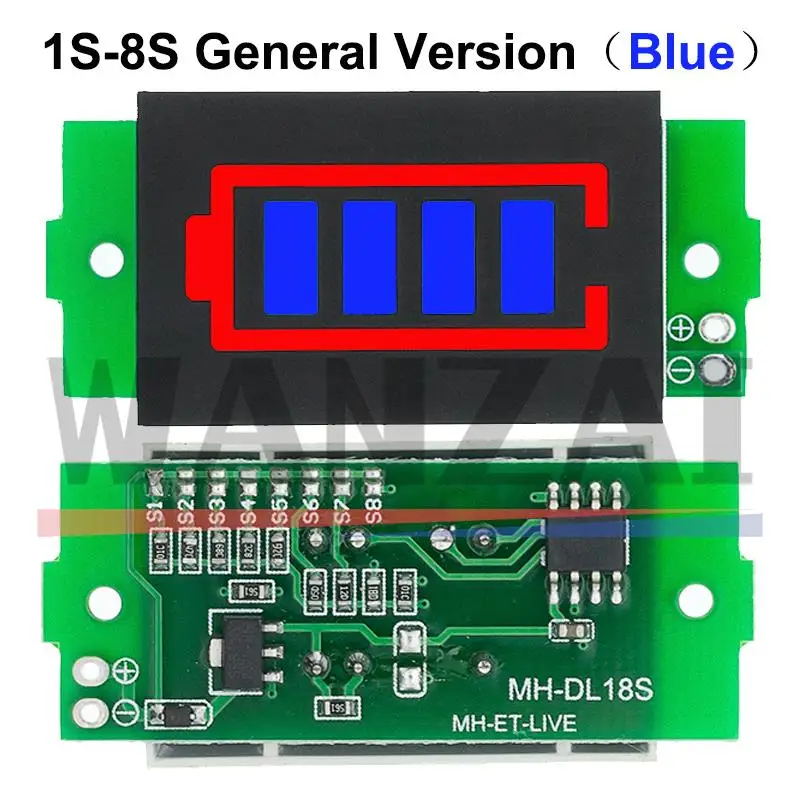

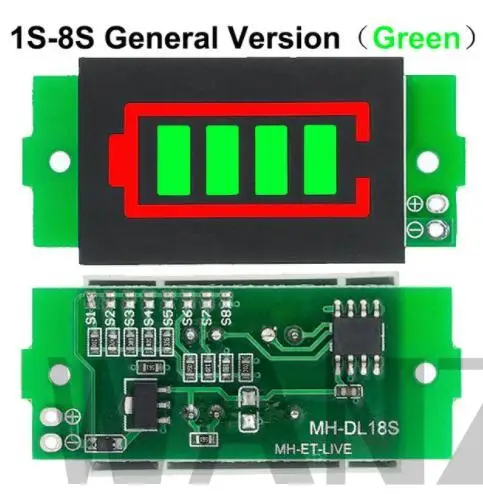

Battery-type power display, select the corresponding pad on the tin, you can detect the battery voltage corresponding to 1S-8S, very convenient.
Product parameters: 1、Working voltage: 3-34V, working current 5mA. 2、Working temperature: -20~50 °C 3、The voltage error is 2% (requires higher accuracy, do not shoot) 4、Size: 43.5 * 20cm
Warm sound tips: This model is not waterproof. If it is used outdoors, please waterproof it, because the electronic components should be used in a dry environment. Lithium-ion battery The battery indicator board that can be used in Ni-MH batteries, as long as the required voltage is within the range of the parameter list. How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube displays the real-time battery power.
1. Battery-type power display, select the corresponding pad on the tin, you can detect the battery voltage corresponding to 1S-8S, very convenient.
